CuLugF,2Hole,#4AWG,1/4,1,90°PKG50
MFG #LCDX4-14DF-L
$17.48 / E
EACH
EACH
Product Description:

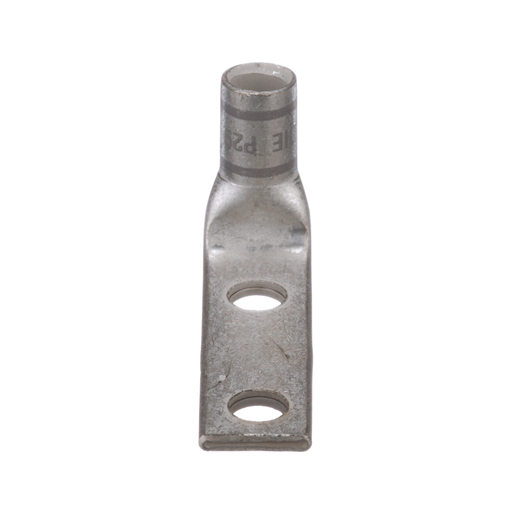

Two-hole, flex lug, #4 AWG wire, 1/4 stud hole, 1 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCDX414DFL
UPC
074983426782
Manufacturer Part Number
LCDX4-14DF-L
Manufacturer
Panduit
CuLugF,2Hole,#4AWG,1/4,1,90°PKG50
MFG #LCDX4-14DF-L
Product Description:
Two-hole, flex lug, #4 AWG wire, 1/4 stud hole, 1 hole spacing, 90° angle tongue.
HESCO Part Number
PANLCDX414DFL
UPC
074983426782
Manufacturer Part Number
LCDX4-14DF-L
Manufacturer
Panduit
$17.48 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Packaging Details
| UPC | : | 07498342678 |
| GTIN Package | : | 00074983426782 |
| Standard Package Volume Ft3 | : | 0.0290 |
| Standard Package Weight Pounds | : | 1.9000 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 4.6 |
| Std Package Length MM | : | 116.84 |
| Std Package Width In | : | 3.3 |
| Std Package Width MM | : | 83.82 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983426782 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Finish/Coating | : | Tin-Plated |
| Stud Hole Size (In.) | : | 1/4 |
| Stud Hole Spacing (mm) | : | 25.4 |
| T & B Die Index Number | : | 29 |
| Color Code | : | Gray |
| Sub Brand | : | Pan-Lug™ |
| Overall Length (In.) | : | 2.12 |
| Tongue Thickness (mm) | : | 2.3 |
| Stud Hole Size (mm) | : | 6.4 |
| CSA Temperature Rating (°C) | : | 90 |
| UL Temperature Rating (°C) | : | 90 |
| Stud Hole Spacing (In.) | : | 1 |
| Barrel Type | : | Standard |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Barrel Length (In.) | : | 0.53 |
| Barrel Length (mm) | : | 13.5 |
| Tongue Width (In.) | : | 0.55 |
| Overall Length (mm) | : | 53.9 |
| Wire Strip Length (mm) | : | 15.9 |
| Maximum Voltage (kV) | : | 35 |
| Burndy Die Index Number | : | 8 |
| Tongue Angle | : | 90° |
| Tongue Thickness (In.) | : | 0.09 |
| Panduit Die Index Number | : | P29 |
| Base Material | : | Copper |
| Tongue Width (mm) | : | 14 |
| Wire Strip Length (In.) | : | 5/8 |
| Tongue Type | : | Standard |
| Product Type | : | Compression Lug |
| Number of Stud Holes | : | 2 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Class I Copper Flex Conductor Size | : | 4 AWG |
| Class H Copper Flex Conductor Size | : | 4 AWG |
| Class G Copper Flex Conductor Size | : | 4 AWG |
| Copper Conductor Size | : | 4 AWG |
| Class M Copper Flex Conductor Size | : | 4 AWG |
| DLO Copper Flex Conductor Size | : | 4 AWG |
| Class K Copper Flex Conductor Size | : | 4 AWG |
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Packaging Details
UPC : 07498342678 GTIN Package : 00074983426782 Standard Package Volume Ft3 : 0.0290 Standard Package Weight Pounds : 1.9000 Std Package Height In : 3.3 Std Package Height MM : 83.82 Std Package Length In : 4.6 Std Package Length MM : 116.84 Std Package Width In : 3.3 Std Package Width MM : 83.82 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983426782 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Finish/Coating : Tin-Plated Stud Hole Size (In.) : 1/4 Stud Hole Spacing (mm) : 25.4 T & B Die Index Number : 29 Color Code : Gray Sub Brand : Pan-Lug™ Overall Length (In.) : 2.12 Tongue Thickness (mm) : 2.3 Stud Hole Size (mm) : 6.4 CSA Temperature Rating (°C) : 90 UL Temperature Rating (°C) : 90 Stud Hole Spacing (In.) : 1 Barrel Type : Standard Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Barrel Length (In.) : 0.53 Barrel Length (mm) : 13.5 Tongue Width (In.) : 0.55 Overall Length (mm) : 53.9 Wire Strip Length (mm) : 15.9 Maximum Voltage (kV) : 35 Burndy Die Index Number : 8 Tongue Angle : 90° Tongue Thickness (In.) : 0.09 Panduit Die Index Number : P29 Base Material : Copper Tongue Width (mm) : 14 Wire Strip Length (In.) : 5/8 Tongue Type : Standard Product Type : Compression Lug Number of Stud Holes : 2 Inspection Window : Yes Barrel Entry : Beveled Class I Copper Flex Conductor Size : 4 AWG Class H Copper Flex Conductor Size : 4 AWG Class G Copper Flex Conductor Size : 4 AWG Copper Conductor Size : 4 AWG Class M Copper Flex Conductor Size : 4 AWG DLO Copper Flex Conductor Size : 4 AWG Class K Copper Flex Conductor Size : 4 AWG - Installation Documents
