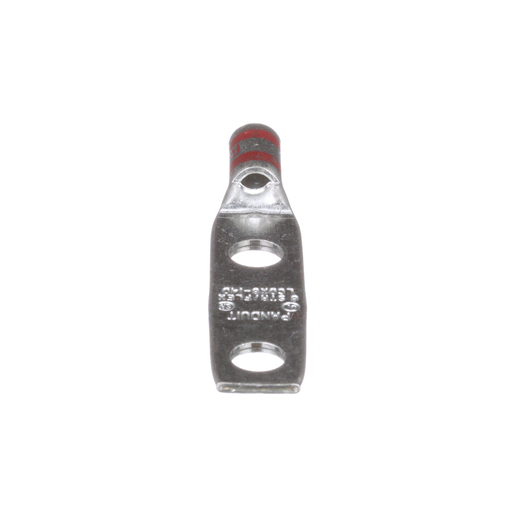

CuLugF,2Hole,#8AWG,1/4,1PKG50
MFG #LCDX8-14D-L
$8.10 / E
EACH
EACH
Product Description:
Two-hole, flex lug, #8 AWG wire, 1/4 stud hole, 1 hole spacing.
HESCO Part Number
PANLCDX814DL
UPC
074983423590
Manufacturer Part Number
LCDX8-14D-L
Manufacturer
Panduit
CuLugF,2Hole,#8AWG,1/4,1PKG50
MFG #LCDX8-14D-L
Product Description:
Two-hole, flex lug, #8 AWG wire, 1/4 stud hole, 1 hole spacing.
HESCO Part Number
PANLCDX814DL
UPC
074983423590
Manufacturer Part Number
LCDX8-14D-L
Manufacturer
Panduit
$8.10 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Packaging Details
| UPC | : | 07498342359 |
| GTIN Package | : | 00074983423590 |
| Standard Package Volume Ft3 | : | 0.0302 |
| Standard Package Weight Pounds | : | 1.0500 |
| Std Package Height In | : | 3.441 |
| Std Package Height MM | : | 87.4014 |
| Std Package Length In | : | 4.882 |
| Std Package Length MM | : | 124.0028 |
| Std Package Width In | : | 3.441 |
| Std Package Width MM | : | 87.4014 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983423590 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Barrel Type | : | Standard |
| Overall Length (mm) | : | 55.9 |
| Overall Length (In.) | : | 2.2 |
| Color Code | : | Red |
| Sub Brand | : | Pan-Lug™ |
| Stud Hole Spacing (In.) | : | 1 |
| Barrel Length (mm) | : | 10.7 |
| Product Type | : | Compression Lug |
| Wire Strip Length (In.) | : | 1/2 |
| Barrel Length (In.) | : | 0.42 |
| Tongue Type | : | Standard |
| Tongue Thickness (In.) | : | 0.07 |
| Stud Hole Size (mm) | : | 6.4 |
| Stud Hole Spacing (mm) | : | 25.4 |
| Panduit Die Index Number | : | P21 |
| UL Temperature Rating (°C) | : | 90 |
| Maximum Voltage (kV) | : | 35 |
| Tongue Thickness (mm) | : | 1.8 |
| Tongue Width (In.) | : | 0.48 |
| Base Material | : | Copper |
| T & B Die Index Number | : | 21 |
| Wire Strip Length (mm) | : | 12.7 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tongue Angle | : | Straight |
| Burndy Die Index Number | : | 49 |
| CSA Temperature Rating (°C) | : | 90 |
| Tongue Width (mm) | : | 12.8 |
| Stud Hole Size (In.) | : | 1/4 |
| Finish/Coating | : | Tin-Plated |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
| Class K Copper Flex Conductor Size | : | 8 AWG |
| Copper Conductor Size | : | 8 AWG |
| Class G Copper Flex Conductor Size | : | 8 AWG |
| Class I Copper Flex Conductor Size | : | 8 AWG |
| DLO Copper Flex Conductor Size | : | 8 AWG |
| Class H Copper Flex Conductor Size | : | 8 AWG |
| Class M Copper Flex Conductor Size | : | 8 AWG |
- Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
Packaging Details
UPC : 07498342359 GTIN Package : 00074983423590 Standard Package Volume Ft3 : 0.0302 Standard Package Weight Pounds : 1.0500 Std Package Height In : 3.441 Std Package Height MM : 87.4014 Std Package Length In : 4.882 Std Package Length MM : 124.0028 Std Package Width In : 3.441 Std Package Width MM : 87.4014 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983423590 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Barrel Type : Standard Overall Length (mm) : 55.9 Overall Length (In.) : 2.2 Color Code : Red Sub Brand : Pan-Lug™ Stud Hole Spacing (In.) : 1 Barrel Length (mm) : 10.7 Product Type : Compression Lug Wire Strip Length (In.) : 1/2 Barrel Length (In.) : 0.42 Tongue Type : Standard Tongue Thickness (In.) : 0.07 Stud Hole Size (mm) : 6.4 Stud Hole Spacing (mm) : 25.4 Panduit Die Index Number : P21 UL Temperature Rating (°C) : 90 Maximum Voltage (kV) : 35 Tongue Thickness (mm) : 1.8 Tongue Width (In.) : 0.48 Base Material : Copper T & B Die Index Number : 21 Wire Strip Length (mm) : 12.7 Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tongue Angle : Straight Burndy Die Index Number : 49 CSA Temperature Rating (°C) : 90 Tongue Width (mm) : 12.8 Stud Hole Size (In.) : 1/4 Finish/Coating : Tin-Plated Inspection Window : Yes Barrel Entry : Beveled Number of Stud Holes : 2 Class K Copper Flex Conductor Size : 8 AWG Copper Conductor Size : 8 AWG Class G Copper Flex Conductor Size : 8 AWG Class I Copper Flex Conductor Size : 8 AWG DLO Copper Flex Conductor Size : 8 AWG Class H Copper Flex Conductor Size : 8 AWG Class M Copper Flex Conductor Size : 8 AWG - Part Drawings
