Pan-Lug™ LCMD240-12-5 Copper Compression Connectors - Metric Lugs
MFG #LCMD240-12-5
$106.16 / E
EACH
EACH
Product Description:

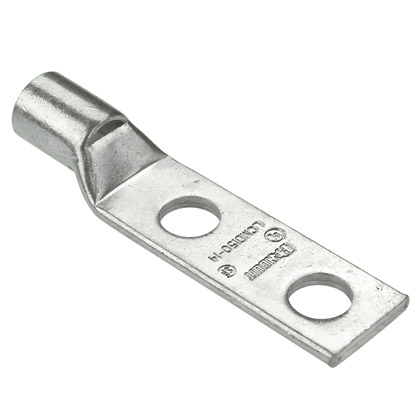

Two-hole, metric conductor, standard barrel with window lug, 240mm² wire, M12 stud hole.
HESCO Part Number
PANLCMD240125
UPC
074983997831
Manufacturer Part Number
LCMD240-12-5
Manufacturer
Panduit
Pan-Lug™ LCMD240-12-5 Copper Compression Connectors - Metric Lugs
MFG #LCMD240-12-5
Product Description:
Two-hole, metric conductor, standard barrel with window lug, 240mm² wire, M12 stud hole.
HESCO Part Number
PANLCMD240125
UPC
074983997831
Manufacturer Part Number
LCMD240-12-5
Manufacturer
Panduit
$106.16 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant,UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13
Specifications
| Country of Origin | : | Argentina, India |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Base Material | : | Copper |
| Product Type | : | Metric Compression Lug |
| Stud Hole Size (mm) | : | 12 |
| Overall Length (mm) | : | 131 |
| Wire Strip Length (mm) | : | 36.5 |
| Barrel Length (mm) | : | 35 |
| Barrel Type | : | Standard |
| Metric Class 2r Copper Conductor Size (mm²) | : | 240 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | : | 185 |
| Tongue Width (mm) | : | 38 |
| UL Temperature Rating (°C) | : | 90 |
| CSA Temperature Rating (°C) | : | 90 |
| Finish/Coating | : | Tin-Plated |
| Sub Brand | : | Pan-Lug™ |
| Tongue Angle | : | Straight |
| Tongue Thickness (mm) | : | 5.3 |
| Tongue Type | : | Standard |
| Stud Hole Spacing (mm) | : | 44.5 |
| Note | : | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color Code | : | Brown |
| Panduit Die Index Number | : | P87 |
| Maximum Voltage (kV) | : | 35 |
| Inspection Window | : | Yes |
| Barrel Entry | : | Beveled |
| Number of Stud Holes | : | 2 |
Packaging Details | ||
| UPC | : | 07498399783 |
| GTIN Package | : | 00074983997831 |
| Standard Package Volume Ft3 | : | 0.0419 |
| Standard Package Weight Pounds | : | 2.4500 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 7.2 |
| Std Package Length MM | : | 182.88 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 5 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983997831 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
