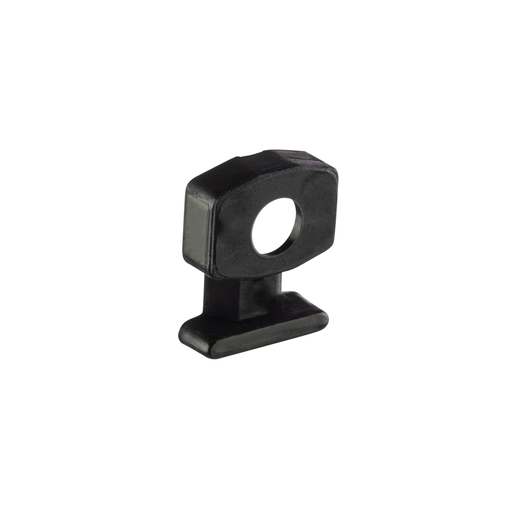

LPMM-S5-M20 Cable Tie Mount
MFG #LPMM-S5-M20
$0.27 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
Product Description:
The low profile cable tie mount in black is applied with a #5 (M3) screw. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties M, is designed for indoor environments, and comes in packages of 1000.
HESCO Part Number
PANLPMMS5M20
UPC
074983391127
Manufacturer Part Number
LPMM-S5-M20
Manufacturer
Panduit
LPMM-S5-M20 Cable Tie Mount
MFG #LPMM-S5-M20
Product Description:
The low profile cable tie mount in black is applied with a #5 (M3) screw. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties M, is designed for indoor environments, and comes in packages of 1000.
HESCO Part Number
PANLPMMS5M20
UPC
074983391127
Manufacturer Part Number
LPMM-S5-M20
Manufacturer
Panduit
$0.27 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: cULus 52275 Type 2, 21, CE Compliant, RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Height (In.) | : | 0.4 |
| Mount Method | : | Screw-On |
| Overall Length (In.) | : | 0.1 |
| Minimum Loop Tensile Strength (N) | : | 80 |
| Flammability Rating | : | UL94V-2 |
| Minimum Operating Temperature (°C) | : | -60 |
| For Use With | : | Miniature Cross-section Cable ties |
| Minimum Loop Tensile Strength (lb) | : | 18 |
| Overall Length (mm) | : | 2.5 |
| Maximum Operating Temperature (°F) | : | 185 |
| Overall Height (mm) | : | 10.2 |
| Environment | : | Indoor |
| Product Type | : | Cable Tie Mount |
| Maximum Operating Temperature (°C) | : | 85 |
| Application | : | Low Profile Mount Designed to Secure Wire Bundles Where Space is Limited. |
| Mounting Hole Thread Size | : | #5 |
| Overall Width (mm) | : | 8.1 |
| Minimum Operating Temperature (°F) | : | -76 |
| Material | : | Nylon 6.6 |
| Color | : | Black |
| Overall Width (In.) | : | 0.32 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498339112 |
| GTIN Package | : | 00074983391127 |
| Standard Package Volume Ft3 | : | 0.0284 |
| Standard Package Weight Pounds | : | 0.3200 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 8 |
| Std Package Length MM | : | 203.2 |
| Std Package Width In | : | 6 |
| Std Package Width MM | : | 152.4 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983391122 |
| Standard Carton Volume Ft3 | : | 0.2839 |
| Standard Carton Weight Pounds | : | 3.2000 |
| Std Carton Height In | : | 4.4 |
| Std Carton Height MM | : | 111.76 |
| Std Carton Length In | : | 10.2 |
| Std Carton Length MM | : | 259.08 |
| Std Carton Width In | : | 10.4 |
| Std Carton Width MM | : | 264.16 |
| Std Ctn Qty | : | 10000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983391127 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5,000.0000 |
| Pallet Quantity | : | 1,600,000 |
| Pallet Volume | : | 45.421775 |
| Pallet Weight | : | 512.0000 |
| RoHS Compliant | : | Compliant |
