LWC100-A-C Latching Wire Clip
MFG #LWC100-A-C
$2.82Â /Â E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:

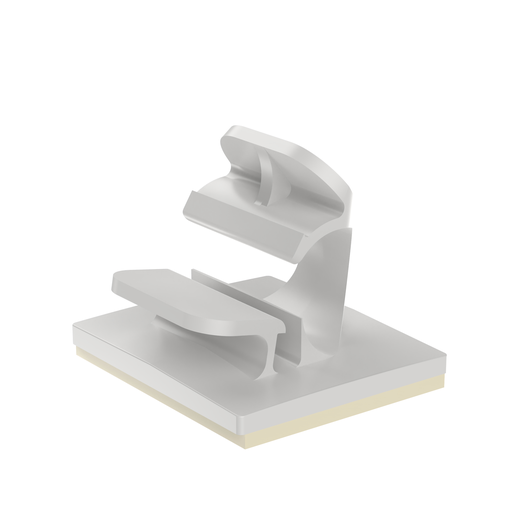

Adhesive backed latching wire clip, 1" (25.4mm) bundle, natural, bulk package.
HESCO Part Number
PANLWC100AC
UPC
074983271979
Manufacturer Part Number
LWC100-A-C
Manufacturer
Panduit
LWC100-A-C Latching Wire Clip
MFG #LWC100-A-C
Product Description:
Adhesive backed latching wire clip, 1" (25.4mm) bundle, natural, bulk package.
HESCO Part Number
PANLWC100AC
UPC
074983271979
Manufacturer Part Number
LWC100-A-C
Manufacturer
Panduit
$2.82Â /Â E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: cULus 1565 (Recognized), RoHS Compliant
- No
Packaging Details
| UPC | :Â Â | 07498327197 |
| GTIN Package | :Â Â | 00074983271979 |
| Standard Package Volume Ft3 | :Â Â | 0.4085 |
| Standard Package Weight Pounds | :Â Â | 3.1500 |
| Std Package Height In | :Â Â | 18 |
| Std Package Height MM | :Â Â | 457.2 |
| Std Package Length In | :Â Â | 14 |
| Std Package Length MM | :Â Â | 355.6 |
| Std Package Width In | :Â Â | 1.5 |
| Std Package Width MM | :Â Â | 38.1 |
| Std. Pkg. UOM | :Â Â | Piece |
| UOM EA PK | :Â Â | PK |
| Std. Pkg. Qty. | :Â Â | 100 |
| GTIN Carton | :Â Â | 50074983271974 |
| Standard Carton Volume Ft3 | :Â Â | 4.0847 |
| Standard Carton Weight Pounds | :Â Â | 31.5000 |
| Std Carton Height In | :Â Â | 22.41 |
| Std Carton Height MM | :Â Â | 569.214 |
| Std Carton Length In | :Â Â | 21.96 |
| Std Carton Length MM | :Â Â | 557.784 |
| Std Carton Width In | :Â Â | 14.58 |
| Std Carton Width MM | :Â Â | 370.332 |
| Std Ctn Qty | :Â Â | 1000 |
| Min. Order UOM | :Â Â | Piece |
| EAN | :Â Â | 00074983271979 |
| REACH Status | :Â Â | N |
| California Pro65 Cancer | :Â Â | No |
| ARRA Compliant | :Â Â | Y |
| Mercury Content Indicator | :Â Â | N |
| Hazardous Material Flag | :Â Â | N |
| Min Order Qty | :Â Â | 500.0000 |
| Pallet Quantity | :Â Â | 12,000 |
| Pallet Volume | :Â Â | 49.016747 |
| Pallet Weight | :Â Â | 378.0000 |
| RoHS Compliant | :Â Â | Compliant |
Specifications | ||
| Country of Origin | :Â Â | United States |
| Any Reason Not to Sell | :Â Â | N |
| Product Segment | :Â Â | IEI |
| Horizontal Static Load Capacity (lb) | :Â Â | 2.25 |
| Body Material | :Â Â | Nylon 6.6 |
| Vertical Static Load Capacity (lb) | :Â Â | 2.25 |
| Overall Width (In.) | :Â Â | 1.97 |
| Adhesive Material | :Â Â | Rubber |
| Horizontal Static Load Capacity (kg) | :Â Â | 1.02 |
| Application | :Â Â | Adhesive Backed Latching Wire Clip |
| Overall Width (mm) | :Â Â | 50 |
| Vertical Static Load Capacity (kg) | :Â Â | 1.02 |
| Environment | :Â Â | Indoor |
| Overall Height (In.) | :Â Â | 1.26 |
| Maximum Bundle Diameter (mm) | :Â Â | 25.4 |
| Overall Height (mm) | :Â Â | 32 |
| Overall Length (In.) | :Â Â | 2.21 |
| Color | :Â Â | Natural |
| Overall Length (mm) | :Â Â | 56.1 |
| Mount Method | :Â Â | Adhesive Tape |
| Maximum Bundle Diameter (In.) | :Â Â | 1 |
| Product Type | :Â Â | Latching Wire Clip |
Videos 1
- Standards Met: cULus 1565 (Recognized), RoHS Compliant
- No
Packaging Details
UPC :Â Â 07498327197 GTIN Package :Â Â 00074983271979 Standard Package Volume Ft3 :Â Â 0.4085 Standard Package Weight Pounds :Â Â 3.1500 Std Package Height In :Â Â 18 Std Package Height MM :Â Â 457.2 Std Package Length In :Â Â 14 Std Package Length MM :Â Â 355.6 Std Package Width In :Â Â 1.5 Std Package Width MM :Â Â 38.1 Std. Pkg. UOM :Â Â Piece UOM EA PK :Â Â PK Std. Pkg. Qty. :Â Â 100 GTIN Carton :Â Â 50074983271974 Standard Carton Volume Ft3 :Â Â 4.0847 Standard Carton Weight Pounds :Â Â 31.5000 Std Carton Height In :Â Â 22.41 Std Carton Height MM :Â Â 569.214 Std Carton Length In :Â Â 21.96 Std Carton Length MM :Â Â 557.784 Std Carton Width In :Â Â 14.58 Std Carton Width MM :Â Â 370.332 Std Ctn Qty :Â Â 1000 Min. Order UOM :Â Â Piece EAN :Â Â 00074983271979 REACH Status :Â Â N California Pro65 Cancer :Â Â No ARRA Compliant :Â Â Y Mercury Content Indicator :Â Â N Hazardous Material Flag :Â Â N Min Order Qty :Â Â 500.0000 Pallet Quantity :Â Â 12,000 Pallet Volume :Â Â 49.016747 Pallet Weight :Â Â 378.0000 RoHS Compliant :Â Â Compliant Specifications
Country of Origin :Â Â United States Any Reason Not to Sell :Â Â N Product Segment :Â Â IEI Horizontal Static Load Capacity (lb) :Â Â 2.25 Body Material :Â Â Nylon 6.6 Vertical Static Load Capacity (lb) :Â Â 2.25 Overall Width (In.) :Â Â 1.97 Adhesive Material :Â Â Rubber Horizontal Static Load Capacity (kg) :Â Â 1.02 Application :Â Â Adhesive Backed Latching Wire Clip Overall Width (mm) :Â Â 50 Vertical Static Load Capacity (kg) :Â Â 1.02 Environment :Â Â Indoor Overall Height (In.) :Â Â 1.26 Maximum Bundle Diameter (mm) :Â Â 25.4 Overall Height (mm) :Â Â 32 Overall Length (In.) :Â Â 2.21 Color :Â Â Natural Overall Length (mm) :Â Â 56.1 Mount Method :Â Â Adhesive Tape Maximum Bundle Diameter (In.) :Â Â 1 Product Type :Â Â Latching Wire Clip - Selection Guides
Selection Guides 1Selection Guides 2
Part DrawingsPart Drawings 1
Videos - Videos 1
