LWC38-A-C14 Wire Clip, Gray, PA 6.6, Rubber Adh., 1x1", PK100
MFG #LWC38-A-C14
$0.87 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

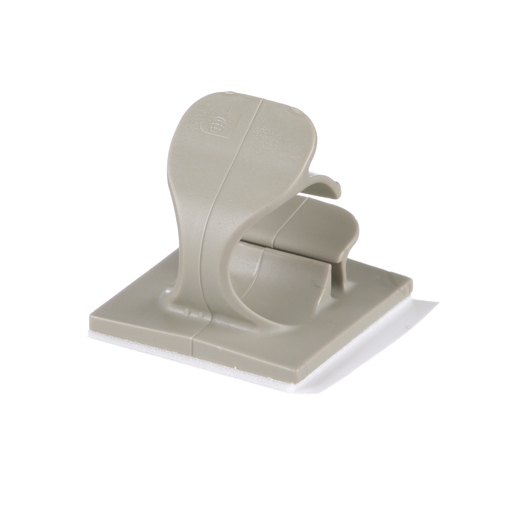

Panduit LWC38-A-C14 Latching Wire Clips with rubber adhesive backing, route and secure cords and cables. The convenient releasable latch allows you to reconfigure and reuse multiple times. The rubber-based adhesive provides a strong and reliable bond and the large mounting base allows for high bond strength. For use in indoor environments and with bundles of no more than 0.38” (9.7mm) in diameter. Made of Nylon 6.6, are gray in color and come in packages of 100.
HESCO Part Number
PANLWC38AC14
UPC
074983272242
Manufacturer Part Number
LWC38-A-C14
Manufacturer
Panduit
LWC38-A-C14 Wire Clip, Gray, PA 6.6, Rubber Adh., 1x1", PK100
MFG #LWC38-A-C14
Product Description:
Panduit LWC38-A-C14 Latching Wire Clips with rubber adhesive backing, route and secure cords and cables. The convenient releasable latch allows you to reconfigure and reuse multiple times. The rubber-based adhesive provides a strong and reliable bond and the large mounting base allows for high bond strength. For use in indoor environments and with bundles of no more than 0.38” (9.7mm) in diameter. Made of Nylon 6.6, are gray in color and come in packages of 100.
HESCO Part Number
PANLWC38AC14
UPC
074983272242
Manufacturer Part Number
LWC38-A-C14
Manufacturer
Panduit
$0.87 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
- No
Packaging Details
| UPC | : | 07498327224 |
| GTIN Package | : | 00074983272242 |
| Standard Package Volume Ft3 | : | 0.0705 |
| Standard Package Weight Pounds | : | 0.7300 |
| Std Package Height In | : | 2.85 |
| Std Package Height MM | : | 72.39 |
| Std Package Length In | : | 9.75 |
| Std Package Length MM | : | 247.65 |
| Std Package Width In | : | 7.65 |
| Std Package Width MM | : | 194.31 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983272247 |
| Standard Carton Volume Ft3 | : | 0.7051 |
| Standard Carton Weight Pounds | : | 7.3000 |
| Std Carton Height In | : | 9.7 |
| Std Carton Height MM | : | 246.38 |
| Std Carton Length In | : | 14.6 |
| Std Carton Length MM | : | 370.84 |
| Std Carton Width In | : | 9.25 |
| Std Carton Width MM | : | 234.95 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983272242 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | Y |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 60,000 |
| Pallet Volume | : | 42.304688 |
| Pallet Weight | : | 438.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Color | : | Gray |
| Vertical Static Load Capacity (lb) | : | 0.5 |
| Environment | : | Indoor |
| Product Type | : | Latching Wire Clip |
| Overall Length (mm) | : | 25.4 |
| Maximum Bundle Diameter (mm) | : | 9.6 |
| Overall Width (In.) | : | 1 |
| Maximum Bundle Diameter (In.) | : | 0.38 |
| Horizontal Static Load Capacity (kg) | : | 0.227 |
| Overall Height (In.) | : | 0.56 |
| Overall Height (mm) | : | 14.2 |
| Overall Width (mm) | : | 25.4 |
| Horizontal Static Load Capacity (lb) | : | 0.5 |
| Vertical Static Load Capacity (kg) | : | 0.227 |
| Adhesive Material | : | Rubber |
| Mount Method | : | Adhesive Tape |
| Application | : | Route and Secure Cords and Cables |
| Body Material | : | Nylon 6.6 |
| Overall Length (In.) | : | 1 |
Videos 1
- Standards Met: RoHS Compliant
- No
Packaging Details
UPC : 07498327224 GTIN Package : 00074983272242 Standard Package Volume Ft3 : 0.0705 Standard Package Weight Pounds : 0.7300 Std Package Height In : 2.85 Std Package Height MM : 72.39 Std Package Length In : 9.75 Std Package Length MM : 247.65 Std Package Width In : 7.65 Std Package Width MM : 194.31 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983272247 Standard Carton Volume Ft3 : 0.7051 Standard Carton Weight Pounds : 7.3000 Std Carton Height In : 9.7 Std Carton Height MM : 246.38 Std Carton Length In : 14.6 Std Carton Length MM : 370.84 Std Carton Width In : 9.25 Std Carton Width MM : 234.95 Std Ctn Qty : 1000 Min. Order UOM : Piece EAN : 00074983272242 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : Y Hazardous Material Flag : N Min Order Qty : 1,000.0000 Pallet Quantity : 60,000 Pallet Volume : 42.304688 Pallet Weight : 438.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Color : Gray Vertical Static Load Capacity (lb) : 0.5 Environment : Indoor Product Type : Latching Wire Clip Overall Length (mm) : 25.4 Maximum Bundle Diameter (mm) : 9.6 Overall Width (In.) : 1 Maximum Bundle Diameter (In.) : 0.38 Horizontal Static Load Capacity (kg) : 0.227 Overall Height (In.) : 0.56 Overall Height (mm) : 14.2 Overall Width (mm) : 25.4 Horizontal Static Load Capacity (lb) : 0.5 Vertical Static Load Capacity (kg) : 0.227 Adhesive Material : Rubber Mount Method : Adhesive Tape Application : Route and Secure Cords and Cables Body Material : Nylon 6.6 Overall Length (In.) : 1 - Selection Guides
Selection Guides 1Selection Guides 2
Part DrawingsPart Drawings 1
Videos - Videos 1
