LWC50-A-T14 Wire Clip, Gray, PA 6.6, Rubber Adh., 1.26x1", PK200
MFG #LWC50-A-T14
$1.03 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

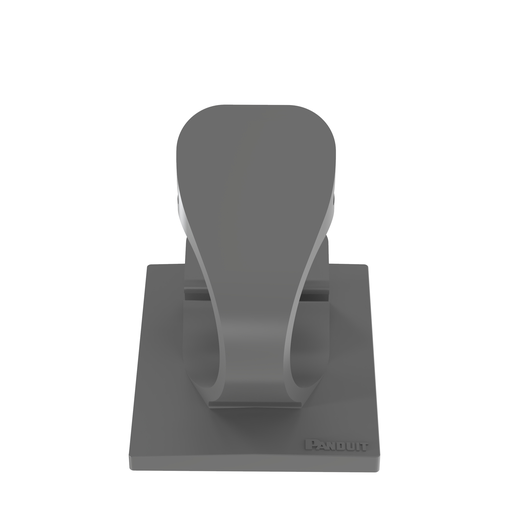

Panduit LWC50-A-T14 Latching Wire Clips with rubber adhesive backing, route and secure cords and cables. The convenient releasable latch allows you to reconfigure and reuse multiple times. The rubber-based adhesive provides a strong and reliable bond and the large mounting base allows for high bond strength. For use in indoor environments and with bundles of no more than 0.50” (12.7mm) in diameter. Made of Nylon 6.6, are gray in color and come in packages of 25.
HESCO Part Number
PANLWC50AT14
UPC
074983272310
Manufacturer Part Number
LWC50-A-T14
Manufacturer
Panduit
LWC50-A-T14 Wire Clip, Gray, PA 6.6, Rubber Adh., 1.26x1", PK200
MFG #LWC50-A-T14
Product Description:
Panduit LWC50-A-T14 Latching Wire Clips with rubber adhesive backing, route and secure cords and cables. The convenient releasable latch allows you to reconfigure and reuse multiple times. The rubber-based adhesive provides a strong and reliable bond and the large mounting base allows for high bond strength. For use in indoor environments and with bundles of no more than 0.50” (12.7mm) in diameter. Made of Nylon 6.6, are gray in color and come in packages of 25.
HESCO Part Number
PANLWC50AT14
UPC
074983272310
Manufacturer Part Number
LWC50-A-T14
Manufacturer
Panduit
$1.03 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Mount Method | : | Adhesive Tape |
| Overall Width (In.) | : | 1 |
| Vertical Static Load Capacity (kg) | : | 0.286 |
| Overall Height (In.) | : | 0.67 |
| Horizontal Static Load Capacity (lb) | : | 0.63 |
| Horizontal Static Load Capacity (kg) | : | 0.286 |
| Application | : | Route and Secure Cords and Cables |
| Environment | : | Indoor |
| Overall Length (mm) | : | 32 |
| Overall Length (In.) | : | 1.26 |
| Overall Height (mm) | : | 17 |
| Adhesive Material | : | Rubber |
| Maximum Bundle Diameter (mm) | : | 12.7 |
| Product Type | : | Latching Wire Clip |
| Body Material | : | Nylon 6.6 |
| Overall Width (mm) | : | 25.4 |
| Color | : | Gray |
| Maximum Bundle Diameter (In.) | : | 0.5 |
| Vertical Static Load Capacity (lb) | : | 0.63 |
Packaging Details | ||
| UPC | : | 07498327231 |
| GTIN Package | : | 00074983272310 |
| Standard Package Volume Ft3 | : | 0.2163 |
| Standard Package Weight Pounds | : | 1.9200 |
| Std Package Height In | : | 4 |
| Std Package Height MM | : | 101.6 |
| Std Package Length In | : | 14 |
| Std Package Length MM | : | 355.6 |
| Std Package Width In | : | 9.45 |
| Std Package Width MM | : | 240.03 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 200 |
| GTIN Carton | : | 50074983272315 |
| Standard Carton Volume Ft3 | : | 2.1626 |
| Standard Carton Weight Pounds | : | 19.2000 |
| Std Carton Height In | : | 16 |
| Std Carton Height MM | : | 406.4 |
| Std Carton Length In | : | 23.2 |
| Std Carton Length MM | : | 589.28 |
| Std Carton Width In | : | 10.6 |
| Std Carton Width MM | : | 269.24 |
| Std Ctn Qty | : | 2000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983272310 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 51.901663 |
| Pallet Weight | : | 460.8000 |
| RoHS Compliant | : | Compliant |
