LWC50-H25-L Latching Wire Clip
MFG #LWC50-H25-L
$0.76Â /Â E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:

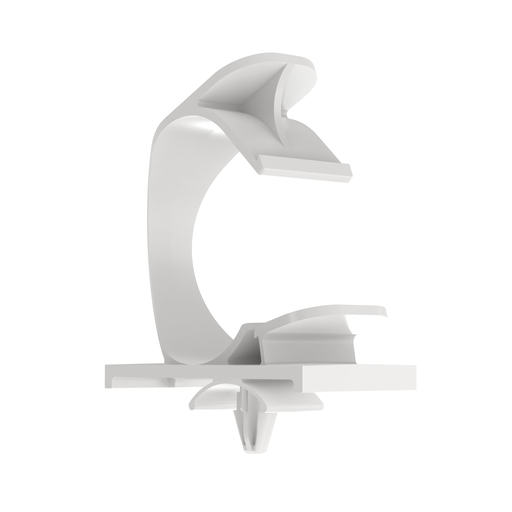

Latching wire clip, push barb mount, .50" (12.7mm) bundle, natural, standard package.
HESCO Part Number
PANLWC50H25L
UPC
074983272136
Manufacturer Part Number
LWC50-H25-L
Manufacturer
Panduit
LWC50-H25-L Latching Wire Clip
MFG #LWC50-H25-L
Product Description:
Latching wire clip, push barb mount, .50" (12.7mm) bundle, natural, standard package.
HESCO Part Number
PANLWC50H25L
UPC
074983272136
Manufacturer Part Number
LWC50-H25-L
Manufacturer
Panduit
$0.76Â /Â E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: cULus 1565 (Recognized), RoHS Compliant
- No
Specifications
| Country of Origin | :Â Â | United States |
| Any Reason Not to Sell | :Â Â | N |
| Product Segment | :Â Â | IEI |
| Overall Width (In.) | :Â Â | 0.76 |
| Maximum Bundle Diameter (mm) | :Â Â | 12.7 |
| Maximum Bundle Diameter (In.) | :Â Â | 0.5 |
| Environment | :Â Â | Indoor |
| Application | :Â Â | Route and Secure Cords and Cables |
| Maximum Compatible Panel Thickness (mm) | :Â Â | 2.7 |
| Product Type | :Â Â | Latching Wire Clip |
| Maximum Compatible Panel Thickness (In.) | :Â Â | 0.1 |
| Mounting Hole Diameter (In.) | :Â Â | 0.25 |
| Overall Length (In.) | :Â Â | 1.25 |
| Overall Width (mm) | :Â Â | 19.3 |
| Overall Height (In.) | :Â Â | 1.2 |
| Mounting Hole Diameter (mm) | :Â Â | 6 |
| Overall Length (mm) | :Â Â | 31.8 |
| Color | :Â Â | Natural |
| Mount Method | :Â Â | Push Barb |
| Body Material | :Â Â | Nylon 6.6 |
| Overall Height (mm) | :Â Â | 30.5 |
Packaging Details | ||
| UPC | :Â Â | 07498327213 |
| GTIN Package | :Â Â | 00074983272136 |
| Standard Package Volume Ft3 | :Â Â | 0.0579 |
| Standard Package Weight Pounds | :Â Â | 0.4800 |
| Std Package Height In | :Â Â | 2.5 |
| Std Package Height MM | :Â Â | 63.5 |
| Std Package Length In | :Â Â | 10.25 |
| Std Package Length MM | :Â Â | 260.35 |
| Std Package Width In | :Â Â | 5.7 |
| Std Package Width MM | :Â Â | 144.78 |
| Std. Pkg. UOM | :Â Â | Piece |
| UOM EA PK | :Â Â | PK |
| Std. Pkg. Qty. | :Â Â | 50 |
| GTIN Carton | :Â Â | 50074983272131 |
| Standard Carton Volume Ft3 | :Â Â | 0.5793 |
| Standard Carton Weight Pounds | :Â Â | 4.8000 |
| Std Carton Height In | :Â Â | 9.55 |
| Std Carton Height MM | :Â Â | 242.57 |
| Std Carton Length In | :Â Â | 14.45 |
| Std Carton Length MM | :Â Â | 367.03 |
| Std Carton Width In | :Â Â | 9.2 |
| Std Carton Width MM | :Â Â | 233.68 |
| Std Ctn Qty | :Â Â | 500 |
| Min. Order UOM | :Â Â | Piece |
| EAN | :Â Â | 00074983272136 |
| REACH Status | :Â Â | N |
| California Pro65 Cancer | :Â Â | No |
| ARRA Compliant | :Â Â | Y |
| Mercury Content Indicator | :Â Â | N |
| Hazardous Material Flag | :Â Â | N |
| Min Order Qty | :Â Â | 500.0000 |
| Pallet Quantity | :Â Â | 30,000 |
| Pallet Volume | :Â Â | 34.755309 |
| Pallet Weight | :Â Â | 288.0000 |
| RoHS Compliant | :Â Â | Compliant |
Videos 1
- Standards Met: cULus 1565 (Recognized), RoHS Compliant
- No
Specifications
Country of Origin :Â Â United States Any Reason Not to Sell :Â Â N Product Segment :Â Â IEI Overall Width (In.) :Â Â 0.76 Maximum Bundle Diameter (mm) :Â Â 12.7 Maximum Bundle Diameter (In.) :Â Â 0.5 Environment :Â Â Indoor Application :Â Â Route and Secure Cords and Cables Maximum Compatible Panel Thickness (mm) :Â Â 2.7 Product Type :Â Â Latching Wire Clip Maximum Compatible Panel Thickness (In.) :Â Â 0.1 Mounting Hole Diameter (In.) :Â Â 0.25 Overall Length (In.) :Â Â 1.25 Overall Width (mm) :Â Â 19.3 Overall Height (In.) :Â Â 1.2 Mounting Hole Diameter (mm) :Â Â 6 Overall Length (mm) :Â Â 31.8 Color :Â Â Natural Mount Method :Â Â Push Barb Body Material :Â Â Nylon 6.6 Overall Height (mm) :Â Â 30.5 Packaging Details
UPC :Â Â 07498327213 GTIN Package :Â Â 00074983272136 Standard Package Volume Ft3 :Â Â 0.0579 Standard Package Weight Pounds :Â Â 0.4800 Std Package Height In :Â Â 2.5 Std Package Height MM :Â Â 63.5 Std Package Length In :Â Â 10.25 Std Package Length MM :Â Â 260.35 Std Package Width In :Â Â 5.7 Std Package Width MM :Â Â 144.78 Std. Pkg. UOM :Â Â Piece UOM EA PK :Â Â PK Std. Pkg. Qty. :Â Â 50 GTIN Carton :Â Â 50074983272131 Standard Carton Volume Ft3 :Â Â 0.5793 Standard Carton Weight Pounds :Â Â 4.8000 Std Carton Height In :Â Â 9.55 Std Carton Height MM :Â Â 242.57 Std Carton Length In :Â Â 14.45 Std Carton Length MM :Â Â 367.03 Std Carton Width In :Â Â 9.2 Std Carton Width MM :Â Â 233.68 Std Ctn Qty :Â Â 500 Min. Order UOM :Â Â Piece EAN :Â Â 00074983272136 REACH Status :Â Â N California Pro65 Cancer :Â Â No ARRA Compliant :Â Â Y Mercury Content Indicator :Â Â N Hazardous Material Flag :Â Â N Min Order Qty :Â Â 500.0000 Pallet Quantity :Â Â 30,000 Pallet Volume :Â Â 34.755309 Pallet Weight :Â Â 288.0000 RoHS Compliant :Â Â Compliant - Selection Guides
Selection Guides 1Selection Guides 2
Part DrawingsPart Drawings 1
Videos - Videos 1
