MBMS-S10-CY Cable Tie Mount, Natural, Aluminum, Screw, 0.14x0.5", 100PK
MFG #MBMS-S10-CY
$0.48 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

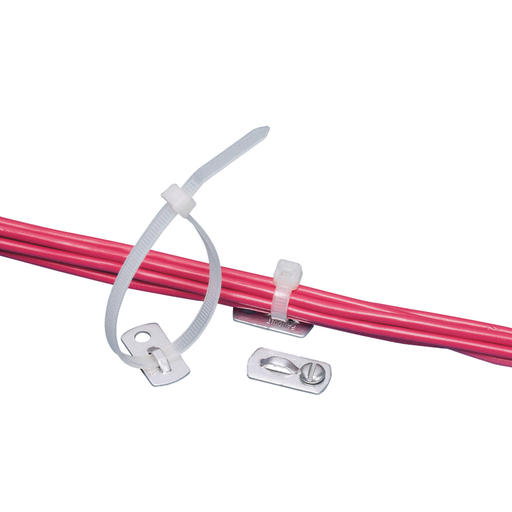

The metal screw-on mount in natural uses a #10 (M5) screw. It is made of aluminum and used with miniature, intermediate, and standard cable ties. It is designed for indoor and outdoor environments and comes in packages of 100.
HESCO Part Number
PANMBMSS10CY
UPC
074983461721
Manufacturer Part Number
MBMS-S10-CY
Manufacturer
Panduit
MBMS-S10-CY Cable Tie Mount, Natural, Aluminum, Screw, 0.14x0.5", 100PK
MFG #MBMS-S10-CY
Product Description:
The metal screw-on mount in natural uses a #10 (M5) screw. It is made of aluminum and used with miniature, intermediate, and standard cable ties. It is designed for indoor and outdoor environments and comes in packages of 100.
HESCO Part Number
PANMBMSS10CY
UPC
074983461721
Manufacturer Part Number
MBMS-S10-CY
Manufacturer
Panduit
$0.48 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CE Compliant, UL Recognized: E136577 Type 2, 21, RoHS Compliant
- No
Packaging Details
| UPC | : | 07498346172 |
| GTIN Package | : | 00074983461721 |
| Standard Package Volume Ft3 | : | 0.0133 |
| Standard Package Weight Pounds | : | 0.1700 |
| Std Package Height In | : | 1.05 |
| Std Package Height MM | : | 26.67 |
| Std Package Length In | : | 4.95 |
| Std Package Length MM | : | 125.73 |
| Std Package Width In | : | 4.7 |
| Std Package Width MM | : | 119.38 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983461726 |
| Standard Carton Volume Ft3 | : | 0.1329 |
| Standard Carton Weight Pounds | : | 1.7000 |
| Std Carton Height In | : | 4.35 |
| Std Carton Height MM | : | 110.49 |
| Std Carton Length In | : | 10.1 |
| Std Carton Length MM | : | 256.54 |
| Std Carton Width In | : | 6.25 |
| Std Carton Width MM | : | 158.75 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983461721 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 87,000 |
| Pallet Volume | : | 11.559408 |
| Pallet Weight | : | 147.9000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Height (In.) | : | 0.14 |
| Maximum Operating Temperature (°F) | : | 185 |
| Minimum Operating Temperature (°C) | : | -60 |
| Mount Method | : | Screw-On |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Operating Temperature (°F) | : | -76 |
| Environment | : | Indoor/Outdoor |
| Color | : | Natural |
| Application | : | Screw Applied Aluminum Mounting Base for a Secure Support in Demanding Applications |
| Material | : | Aluminum |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Overall Width (In.) | : | 0.5 |
| Overall Width (mm) | : | 12.7 |
| Product Type | : | Cable Tie Mount |
| For Use With | : | Miniature, Intermediate, Standard cross section cable ties |
| Mounting Hole Thread Size | : | #10 |
| Overall Length (mm) | : | 25.4 |
| Overall Length (In.) | : | 1 |
| Overall Height (mm) | : | 3.6 |
| Minimum Loop Tensile Strength (N) | : | 222 |
Videos 1
- Standards Met: CE Compliant, UL Recognized: E136577 Type 2, 21, RoHS Compliant
- No
Packaging Details
UPC : 07498346172 GTIN Package : 00074983461721 Standard Package Volume Ft3 : 0.0133 Standard Package Weight Pounds : 0.1700 Std Package Height In : 1.05 Std Package Height MM : 26.67 Std Package Length In : 4.95 Std Package Length MM : 125.73 Std Package Width In : 4.7 Std Package Width MM : 119.38 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983461726 Standard Carton Volume Ft3 : 0.1329 Standard Carton Weight Pounds : 1.7000 Std Carton Height In : 4.35 Std Carton Height MM : 110.49 Std Carton Length In : 10.1 Std Carton Length MM : 256.54 Std Carton Width In : 6.25 Std Carton Width MM : 158.75 Std Ctn Qty : 1000 Min. Order UOM : Piece EAN : 00074983461721 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1,000.0000 Pallet Quantity : 87,000 Pallet Volume : 11.559408 Pallet Weight : 147.9000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Overall Height (In.) : 0.14 Maximum Operating Temperature (°F) : 185 Minimum Operating Temperature (°C) : -60 Mount Method : Screw-On Maximum Operating Temperature (°C) : 85 Minimum Operating Temperature (°F) : -76 Environment : Indoor/Outdoor Color : Natural Application : Screw Applied Aluminum Mounting Base for a Secure Support in Demanding Applications Material : Aluminum Minimum Loop Tensile Strength (lb) : 50 Overall Width (In.) : 0.5 Overall Width (mm) : 12.7 Product Type : Cable Tie Mount For Use With : Miniature, Intermediate, Standard cross section cable ties Mounting Hole Thread Size : #10 Overall Length (mm) : 25.4 Overall Length (In.) : 1 Overall Height (mm) : 3.6 Minimum Loop Tensile Strength (N) : 222 - Part Drawings
Part Drawings 1
Part Drawings 2
Videos - Videos 1
