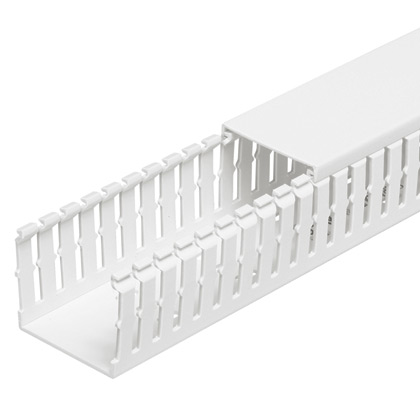

Panduct® MC25X75WH2 Narrow Slot Duct, White, PVC, 2.85"x78.74"x0.97", PK2
MFG #MC25X75WH2
$35.20 / MR
(Must order in increments of 20/MR)
(Must order in increments of 20/MR)
Product Description:
The MC25X75WH2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 24.6 mm x 72.4 mm (0.97" x 2.85"). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. Cover included. Color - White. 20 Meters (10 sticks each) - Bases & Covers per package.
HESCO Part Number
PANMC25X75WH2
UPC
074983752393
Manufacturer Part Number
MC25X75WH2
Manufacturer
Panduit
Panduct® MC25X75WH2 Narrow Slot Duct, White, PVC, 2.85"x78.74"x0.97", PK2
MFG #MC25X75WH2
Product Description:
The MC25X75WH2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 24.6 mm x 72.4 mm (0.97" x 2.85"). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. Cover included. Color - White. 20 Meters (10 sticks each) - Bases & Covers per package.
HESCO Part Number
PANMC25X75WH2
UPC
074983752393
Manufacturer Part Number
MC25X75WH2
Manufacturer
Panduit
$35.20 / MR
(Must order in increments of 20/MR)
(Must order in increments of 20/MR)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, DIN 43659 Compliant, BABA Compliant
Packaging Details
| UPC | : | 07498375239 |
| GTIN Package | : | 00074983752393 |
| Standard Package Volume Ft3 | : | 0.1052 |
| Standard Package Weight Pounds | : | 1.7800 |
| Std Package Height In | : | .6 |
| Std Package Height MM | : | 15.24 |
| Std Package Length In | : | 78 |
| Std Package Length MM | : | 1981.2 |
| Std Package Width In | : | 3.5 |
| Std Package Width MM | : | 88.9 |
| Std. Pkg. UOM | : | Meters |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2 |
| GTIN Carton | : | 50074983752398 |
| Standard Carton Volume Ft3 | : | 1.0519 |
| Standard Carton Weight Pounds | : | 17.8000 |
| Std Carton Height In | : | 3.2 |
| Std Carton Height MM | : | 81.28 |
| Std Carton Length In | : | 80 |
| Std Carton Length MM | : | 2032 |
| Std Carton Width In | : | 7.1 |
| Std Carton Width MM | : | 180.34 |
| Std Ctn Qty | : | 20 |
| Min. Order UOM | : | Meters |
| EAN | : | 00074983752393 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 20.0000 |
| Pallet Quantity | : | 1,320 |
| Pallet Volume | : | 69.422222 |
| Pallet Weight | : | 1,174.8000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Wiring Duct Type | : | MC |
| Overall Width (mm) | : | 24.6 |
| Overall Length (ft.) | : | 6.6 |
| Overall Length (m) | : | 2 |
| Slot Width (In.) | : | 0.2 |
| Product Type | : | Wiring Duct Base with Cover |
| Overall Height (mm) | : | 72.4 |
| Slot Width (mm) | : | 5 |
| Mount Method | : | DIN Standard Mounting Holes |
| Includes | : | (1) Cover |
| Overall Height (In.) | : | 2.85 |
| Color | : | White |
| Material | : | PVC |
| Wiring Duct Style | : | Narrow Slot Wiring Duct |
| Measurement System | : | Metric |
| Sub Brand | : | Panduct® |
| Flammability Rating | : | UL94 V-0 |
| Cover Part Number | : | C25WH2 (included) |
| Overall Width (In.) | : | 0.97 |
| Material Properties | : | Lead-Free |
| Duct Dimensions (mm) | : | 24.6W x72.4H |
| Nominal Height (mm) | : | 75 |
| Nominal Width (mm) | : | 25 |
