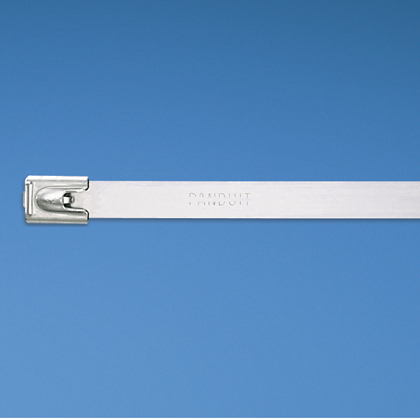

Pan-Steel® MLT10H-LP316 Cable Tie, SS 316, Natural, Heavy, 10" Dia., PK50
MFG #MLT10H-LP316
$5.74 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
Pan-Steel® Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 316 stainless steel promote worker safety in indoor, outdoor and underground environments. Heavy cross section, Max bundle diameter: 10in, 33in, Tensile strength: 2000, 50pc.
HESCO Part Number
PANMLT10HLP316
UPC
074983543946
Manufacturer Part Number
MLT10H-LP316
Manufacturer
Panduit
Pan-Steel® MLT10H-LP316 Cable Tie, SS 316, Natural, Heavy, 10" Dia., PK50
MFG #MLT10H-LP316
Product Description:
Pan-Steel® Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 316 stainless steel promote worker safety in indoor, outdoor and underground environments. Heavy cross section, Max bundle diameter: 10in, 33in, Tensile strength: 2000, 50pc.
HESCO Part Number
PANMLT10HLP316
UPC
074983543946
Manufacturer Part Number
MLT10H-LP316
Manufacturer
Panduit
$5.74 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL E56854,CE,ABS,GL,SAE,BV,LR,DNV,USCG
- No
Packaging Details
| UPC | : | 07498354394 |
| GTIN Package | : | 00074983543946 |
| Standard Package Volume Ft3 | : | 0.0526 |
| Standard Package Weight Pounds | : | 1.7900 |
| Std Package Height In | : | .5 |
| Std Package Height MM | : | 12.7 |
| Std Package Length In | : | 39 |
| Std Package Length MM | : | 990.6 |
| Std Package Width In | : | 3 |
| Std Package Width MM | : | 76.2 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983543941 |
| Standard Carton Volume Ft3 | : | 0.2629 |
| Standard Carton Weight Pounds | : | 8.9500 |
| Std Carton Height In | : | 2.9 |
| Std Carton Height MM | : | 73.66 |
| Std Carton Length In | : | 35.6 |
| Std Carton Length MM | : | 904.24 |
| Std Carton Width In | : | 4.4 |
| Std Carton Width MM | : | 111.76 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983543946 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 35,000 |
| Pallet Volume | : | 36.803148 |
| Pallet Weight | : | 1,253.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States, China |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Loop Tensile Strength (lb) | : | 450 |
| Color | : | Natural |
| Minimum Installation Temperature (°C) | : | -60 |
| Material | : | Stainless Steel Type 316 |
| Application | : | Corrosive Environment |
| Body Width (mm) | : | 7.9 |
| Body Thickness (In.) | : | 0.01 |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Length (In.) | : | 33 |
| Environment | : | Harsh |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Military Cross Reference Number | : | M23190/3-9 |
| Maximum Bundle Diameter (In.) | : | 10 |
| Overall Length (mm) | : | 838 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT |
| Product Type | : | Cable Tie |
| Maximum Bundle Diameter (mm) | : | 254 |
| Body Thickness (mm) | : | 0.3 |
| Maximum Operating Temperature (°C) | : | 538 |
| Sub Brand | : | Pan-Steel® |
| Resistance Properties | : | UV-Resistant |
| Minimum Installation Temperature (°F) | : | -76 |
| Minimum Loop Tensile Strength (N) | : | 2000 |
| Body Width (In.) | : | 0.31 |
| Maximum Operating Temperature (°F) | : | 1000 |
| Minimum Operating Temperature (°F) | : | -76 |
Videos 1
- Standards Met: UL E56854,CE,ABS,GL,SAE,BV,LR,DNV,USCG
- No
Packaging Details
UPC : 07498354394 GTIN Package : 00074983543946 Standard Package Volume Ft3 : 0.0526 Standard Package Weight Pounds : 1.7900 Std Package Height In : .5 Std Package Height MM : 12.7 Std Package Length In : 39 Std Package Length MM : 990.6 Std Package Width In : 3 Std Package Width MM : 76.2 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 GTIN Carton : 50074983543941 Standard Carton Volume Ft3 : 0.2629 Standard Carton Weight Pounds : 8.9500 Std Carton Height In : 2.9 Std Carton Height MM : 73.66 Std Carton Length In : 35.6 Std Carton Length MM : 904.24 Std Carton Width In : 4.4 Std Carton Width MM : 111.76 Std Ctn Qty : 250 Min. Order UOM : Piece EAN : 00074983543946 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 35,000 Pallet Volume : 36.803148 Pallet Weight : 1,253.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States, China Any Reason Not to Sell : N Product Segment : IEI Minimum Loop Tensile Strength (lb) : 450 Color : Natural Minimum Installation Temperature (°C) : -60 Material : Stainless Steel Type 316 Application : Corrosive Environment Body Width (mm) : 7.9 Body Thickness (In.) : 0.01 Minimum Operating Temperature (°C) : -60 Overall Length (In.) : 33 Environment : Harsh Minimum Bundle Diameter (In.) : 0.5 Military Cross Reference Number : M23190/3-9 Maximum Bundle Diameter (In.) : 10 Overall Length (mm) : 838 Minimum Bundle Diameter (mm) : 12.7 For Use With : GS4MT-E, HTMT, PPTMT, ST2MT Product Type : Cable Tie Maximum Bundle Diameter (mm) : 254 Body Thickness (mm) : 0.3 Maximum Operating Temperature (°C) : 538 Sub Brand : Pan-Steel® Resistance Properties : UV-Resistant Minimum Installation Temperature (°F) : -76 Minimum Loop Tensile Strength (N) : 2000 Body Width (In.) : 0.31 Maximum Operating Temperature (°F) : 1000 Minimum Operating Temperature (°F) : -76 - Part Drawings
