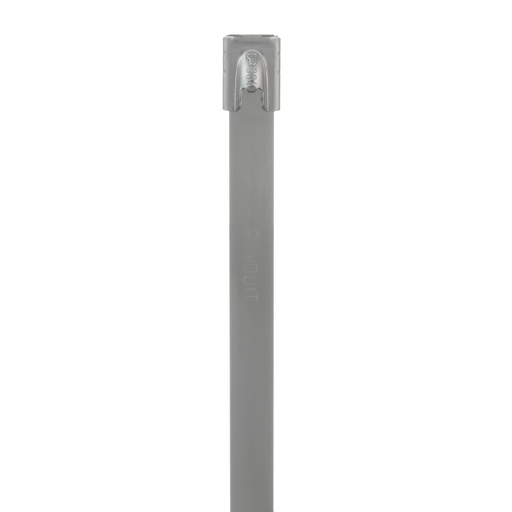

Pan-Steel® MLT12H-Q Cable Tie, SS 304, Heavy, 12" Dia., PK25
MFG #MLT12H-Q
$5.37 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
Product Description:
The MLT12H-Q self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT12H-Q cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
HESCO Part Number
PANMLT12HQ
UPC
074983343713
Manufacturer Part Number
MLT12H-Q
Manufacturer
Panduit
Pan-Steel® MLT12H-Q Cable Tie, SS 304, Heavy, 12" Dia., PK25
MFG #MLT12H-Q
Product Description:
The MLT12H-Q self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT12H-Q cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
HESCO Part Number
PANMLT12HQ
UPC
074983343713
Manufacturer Part Number
MLT12H-Q
Manufacturer
Panduit
$5.37 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL E56854,CE,ABS,GL,BV,LR,DNV,USCG
- No
Packaging Details
| UPC | : | 07498334371 |
| GTIN Package | : | 00074983343713 |
| Standard Package Volume Ft3 | : | 0.1541 |
| Standard Package Weight Pounds | : | 1.1600 |
| Std Package Height In | : | 1.45 |
| Std Package Height MM | : | 36.83 |
| Std Package Length In | : | 13.95 |
| Std Package Length MM | : | 354.33 |
| Std Package Width In | : | 12.85 |
| Std Package Width MM | : | 326.39 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 25 |
| GTIN Carton | : | 50074983343718 |
| Standard Carton Volume Ft3 | : | 0.7704 |
| Standard Carton Weight Pounds | : | 5.8000 |
| Std Carton Height In | : | 5.4 |
| Std Carton Height MM | : | 137.16 |
| Std Carton Length In | : | 18.4 |
| Std Carton Length MM | : | 467.36 |
| Std Carton Width In | : | 13.5 |
| Std Carton Width MM | : | 342.9 |
| Std Ctn Qty | : | 125 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983343713 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 25.0000 |
| Pallet Quantity | : | 6,000 |
| Pallet Volume | : | 36.979123 |
| Pallet Weight | : | 278.4000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States, China |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT |
| Body Thickness (mm) | : | 0.3 |
| Overall Length (In.) | : | 39.3 |
| Sub Brand | : | Pan-Steel® |
| Product Type | : | Cable Tie |
| Body Width (mm) | : | 7.9 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Resistance Properties | : | UV-Resistant |
| Material | : | Stainless Steel Type 304 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Maximum Bundle Diameter (mm) | : | 304 |
| Minimum Installation Temperature (°C) | : | -60 |
| Minimum Operating Temperature (°F) | : | -76 |
| Overall Length (mm) | : | 998 |
| Minimum Loop Tensile Strength (N) | : | 2000 |
| Color | : | Metallic |
| Application | : | General |
| Minimum Loop Tensile Strength (lb) | : | 450 |
| Body Thickness (In.) | : | 0.01 |
| Maximum Bundle Diameter (In.) | : | 12 |
| Body Width (In.) | : | 0.31 |
| Minimum Installation Temperature (°F) | : | -76 |
| Minimum Operating Temperature (°C) | : | -60 |
| Environment | : | Indoor/Outdoor |
| Maximum Operating Temperature (°C) | : | 538 |
| Maximum Operating Temperature (°F) | : | 1000 |
Videos 1
Videos 2
Videos 2
- Standards Met: UL E56854,CE,ABS,GL,BV,LR,DNV,USCG
- No
Packaging Details
UPC : 07498334371 GTIN Package : 00074983343713 Standard Package Volume Ft3 : 0.1541 Standard Package Weight Pounds : 1.1600 Std Package Height In : 1.45 Std Package Height MM : 36.83 Std Package Length In : 13.95 Std Package Length MM : 354.33 Std Package Width In : 12.85 Std Package Width MM : 326.39 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 25 GTIN Carton : 50074983343718 Standard Carton Volume Ft3 : 0.7704 Standard Carton Weight Pounds : 5.8000 Std Carton Height In : 5.4 Std Carton Height MM : 137.16 Std Carton Length In : 18.4 Std Carton Length MM : 467.36 Std Carton Width In : 13.5 Std Carton Width MM : 342.9 Std Ctn Qty : 125 Min. Order UOM : Piece EAN : 00074983343713 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 25.0000 Pallet Quantity : 6,000 Pallet Volume : 36.979123 Pallet Weight : 278.4000 RoHS Compliant : Compliant Specifications
Country of Origin : United States, China Any Reason Not to Sell : N Product Segment : IEI For Use With : GS4MT-E, HTMT, PPTMT, ST2MT Body Thickness (mm) : 0.3 Overall Length (In.) : 39.3 Sub Brand : Pan-Steel® Product Type : Cable Tie Body Width (mm) : 7.9 Minimum Bundle Diameter (In.) : 0.5 Resistance Properties : UV-Resistant Material : Stainless Steel Type 304 Minimum Bundle Diameter (mm) : 12.7 Maximum Bundle Diameter (mm) : 304 Minimum Installation Temperature (°C) : -60 Minimum Operating Temperature (°F) : -76 Overall Length (mm) : 998 Minimum Loop Tensile Strength (N) : 2000 Color : Metallic Application : General Minimum Loop Tensile Strength (lb) : 450 Body Thickness (In.) : 0.01 Maximum Bundle Diameter (In.) : 12 Body Width (In.) : 0.31 Minimum Installation Temperature (°F) : -76 Minimum Operating Temperature (°C) : -60 Environment : Indoor/Outdoor Maximum Operating Temperature (°C) : 538 Maximum Operating Temperature (°F) : 1000 - Application Guides
