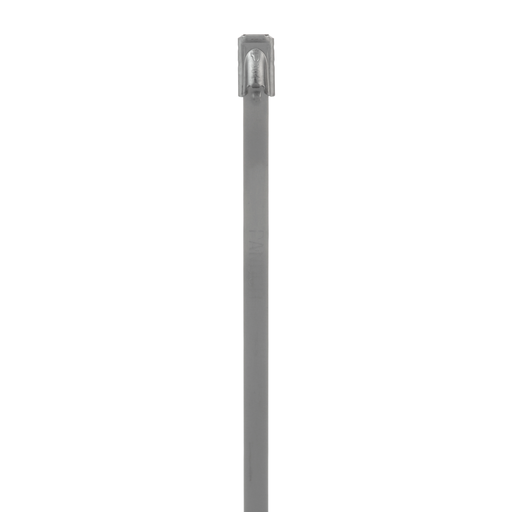

Pan-Steel® MLT2.7S-CP Cable Tie, SS 304, Standard, 2.7" Dia., PK100
MFG #MLT2.7S-CP
$1.38 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
The MLT2.7S-CP self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT2.7S-CP cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
HESCO Part Number
PANMLT27SCP
UPC
074983389636
Manufacturer Part Number
MLT2.7S-CP
Manufacturer
Panduit
Pan-Steel® MLT2.7S-CP Cable Tie, SS 304, Standard, 2.7" Dia., PK100
MFG #MLT2.7S-CP
Product Description:
The MLT2.7S-CP self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT2.7S-CP cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
HESCO Part Number
PANMLT27SCP
UPC
074983389636
Manufacturer Part Number
MLT2.7S-CP
Manufacturer
Panduit
$1.38 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL E56854,CE,ABS,GL,BV,LR,DNV
- No
Packaging Details
| UPC | : | 07498338963 |
| GTIN Package | : | 00074983389636 |
| Standard Package Volume Ft3 | : | 0.0238 |
| Standard Package Weight Pounds | : | 0.6700 |
| Std Package Height In | : | 1.1 |
| Std Package Height MM | : | 27.94 |
| Std Package Length In | : | 11.9 |
| Std Package Length MM | : | 302.26 |
| Std Package Width In | : | 5.9 |
| Std Package Width MM | : | 149.86 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983389631 |
| Standard Carton Volume Ft3 | : | 0.1191 |
| Standard Carton Weight Pounds | : | 3.3500 |
| Std Carton Height In | : | 1.85 |
| Std Carton Height MM | : | 46.99 |
| Std Carton Length In | : | 18.95 |
| Std Carton Length MM | : | 481.33 |
| Std Carton Width In | : | 5.65 |
| Std Carton Width MM | : | 143.51 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983389636 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 168,000 |
| Pallet Volume | : | 40.024833 |
| Pallet Weight | : | 1,125.6000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States, China |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (mm) | : | 259 |
| Environment | : | Indoor/Outdoor |
| Maximum Bundle Diameter (mm) | : | 69 |
| Sub Brand | : | Pan-Steel® |
| Body Width (In.) | : | 0.18 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Minimum Operating Temperature (°F) | : | -76 |
| Resistance Properties | : | UV-Resistant |
| Maximum Bundle Diameter (In.) | : | 2.7 |
| Minimum Loop Tensile Strength (lb) | : | 200 |
| Color | : | Metallic |
| Product Type | : | Cable Tie |
| Minimum Installation Temperature (°C) | : | -60 |
| Overall Length (In.) | : | 10.2 |
| Body Thickness (mm) | : | 0.3 |
| Body Thickness (In.) | : | 0.01 |
| Minimum Installation Temperature (°F) | : | -76 |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Loop Tensile Strength (N) | : | 890 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT |
| Maximum Operating Temperature (°C) | : | 538 |
| Application | : | General |
| Body Width (mm) | : | 4.6 |
| Maximum Operating Temperature (°F) | : | 1000 |
| Material | : | Stainless Steel Type 304 |
Videos 1
Videos 2
Videos 2
- Standards Met: UL E56854,CE,ABS,GL,BV,LR,DNV
- No
Packaging Details
UPC : 07498338963 GTIN Package : 00074983389636 Standard Package Volume Ft3 : 0.0238 Standard Package Weight Pounds : 0.6700 Std Package Height In : 1.1 Std Package Height MM : 27.94 Std Package Length In : 11.9 Std Package Length MM : 302.26 Std Package Width In : 5.9 Std Package Width MM : 149.86 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983389631 Standard Carton Volume Ft3 : 0.1191 Standard Carton Weight Pounds : 3.3500 Std Carton Height In : 1.85 Std Carton Height MM : 46.99 Std Carton Length In : 18.95 Std Carton Length MM : 481.33 Std Carton Width In : 5.65 Std Carton Width MM : 143.51 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983389636 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 168,000 Pallet Volume : 40.024833 Pallet Weight : 1,125.6000 RoHS Compliant : Compliant Specifications
Country of Origin : United States, China Any Reason Not to Sell : N Product Segment : IEI Overall Length (mm) : 259 Environment : Indoor/Outdoor Maximum Bundle Diameter (mm) : 69 Sub Brand : Pan-Steel® Body Width (In.) : 0.18 Minimum Bundle Diameter (mm) : 12.7 Minimum Operating Temperature (°F) : -76 Resistance Properties : UV-Resistant Maximum Bundle Diameter (In.) : 2.7 Minimum Loop Tensile Strength (lb) : 200 Color : Metallic Product Type : Cable Tie Minimum Installation Temperature (°C) : -60 Overall Length (In.) : 10.2 Body Thickness (mm) : 0.3 Body Thickness (In.) : 0.01 Minimum Installation Temperature (°F) : -76 Minimum Operating Temperature (°C) : -60 Minimum Loop Tensile Strength (N) : 890 Minimum Bundle Diameter (In.) : 0.5 For Use With : GS4MT-E, HTMT, PPTMT, ST2MT Maximum Operating Temperature (°C) : 538 Application : General Body Width (mm) : 4.6 Maximum Operating Temperature (°F) : 1000 Material : Stainless Steel Type 304 - Part Drawings
