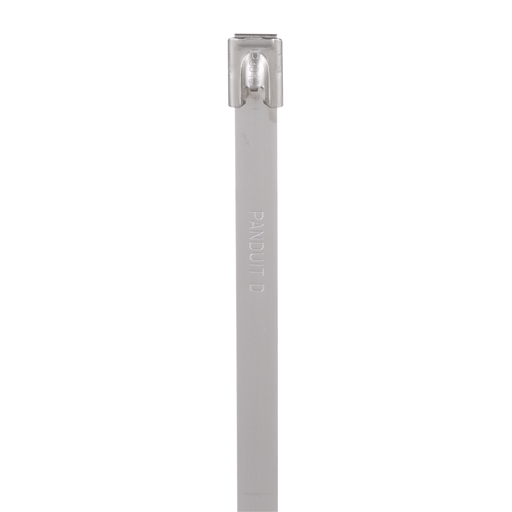

Pan-Steel® MLT4DH-L Cable Cleat, MLT Strap, 304 SS, Single/Trefoil/Quad, 28in L
MFG #MLT4DH-L
$3.15 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
The MLT4DH-L self-locking cable cleat speeds up installation with a unique self-locking head that secures into any position along the band's length. The smooth and safe cable banding passes through the head twice, providing additional strength in short circuit applications. The variable design is compatible with quad, trefoil, and multicore cables and certified to IEC61914:2015, tested up to 47.0kA peak fault current. Features 304 AISI SS, 2670N tensile strength, 102mm bundle capacity.
HESCO Part Number
PANMLT4DHL
UPC
074983483525
Manufacturer Part Number
MLT4DH-L
Manufacturer
Panduit
Pan-Steel® MLT4DH-L Cable Cleat, MLT Strap, 304 SS, Single/Trefoil/Quad, 28in L
MFG #MLT4DH-L
Product Description:
The MLT4DH-L self-locking cable cleat speeds up installation with a unique self-locking head that secures into any position along the band's length. The smooth and safe cable banding passes through the head twice, providing additional strength in short circuit applications. The variable design is compatible with quad, trefoil, and multicore cables and certified to IEC61914:2015, tested up to 47.0kA peak fault current. Features 304 AISI SS, 2670N tensile strength, 102mm bundle capacity.
HESCO Part Number
PANMLT4DHL
UPC
074983483525
Manufacturer Part Number
MLT4DH-L
Manufacturer
Panduit
$3.15 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Environment | : | Indoor/Outdoor |
| Product Type | : | Cable Tie |
| Body Width (mm) | : | 7.9 |
| Minimum Installation Temperature (°F) | : | -76 |
| Body Thickness (mm) | : | 0.3 |
| Sub Brand | : | Pan-Steel® |
| Minimum Loop Tensile Strength (N) | : | 2669 |
| Body Thickness (In.) | : | 0.01 |
| Maximum Bundle Diameter (mm) | : | 101 |
| Material | : | Stainless Steel Type 304 |
| Maximum Operating Temperature (°F) | : | 1000 |
| Overall Length (In.) | : | 28 |
| Maximum Operating Temperature (°C) | : | 538 |
| Overall Length (mm) | : | 711 |
| Body Width (In.) | : | 0.31 |
| Minimum Loop Tensile Strength (lb) | : | 600 |
| Maximum Bundle Diameter (In.) | : | 4 |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Installation Temperature (°C) | : | -60 |
| Minimum Operating Temperature (°C) | : | -60 |
Packaging Details | ||
| UPC | : | 07498348352 |
| GTIN Package | : | 00074983483525 |
| Standard Package Volume Ft3 | : | 0.0512 |
| Standard Package Weight Pounds | : | 1.4600 |
| Std Package Height In | : | 1.05 |
| Std Package Height MM | : | 26.67 |
| Std Package Length In | : | 29.7 |
| Std Package Length MM | : | 754.38 |
| Std Package Width In | : | 3.85 |
| Std Package Width MM | : | 97.79 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983483520 |
| Standard Carton Volume Ft3 | : | 0.2558 |
| Standard Carton Weight Pounds | : | 7.3000 |
| Std Carton Height In | : | 3 |
| Std Carton Height MM | : | 76.2 |
| Std Carton Length In | : | 35.9 |
| Std Carton Length MM | : | 911.86 |
| Std Carton Width In | : | 4.45 |
| Std Carton Width MM | : | 113.03 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983483525 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 35,000 |
| Pallet Volume | : | 35.809486 |
| Pallet Weight | : | 1,022.0000 |
| RoHS Compliant | : | Compliant |
