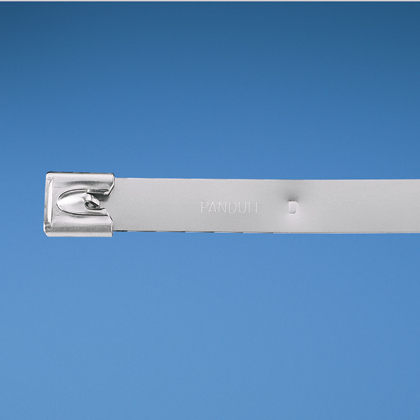

Pan-Steel® MLT4EH-LP316 Stainless Steel Cable Ties
MFG #MLT4EH-LP316
$3.09 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
Pan-Steel® Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 316 stainless steel promote worker safety in indoor, outdoor and underground environments. Extra-heavy cross section, Max bundle diameter: 4in, 17.1in, Tensile strength: 2670, 50pc.
HESCO Part Number
PANMLT4EHLP316
UPC
074983445967
Manufacturer Part Number
MLT4EH-LP316
Manufacturer
Panduit
Pan-Steel® MLT4EH-LP316 Stainless Steel Cable Ties
MFG #MLT4EH-LP316
Product Description:
Pan-Steel® Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 316 stainless steel promote worker safety in indoor, outdoor and underground environments. Extra-heavy cross section, Max bundle diameter: 4in, 17.1in, Tensile strength: 2670, 50pc.
HESCO Part Number
PANMLT4EHLP316
UPC
074983445967
Manufacturer Part Number
MLT4EH-LP316
Manufacturer
Panduit
$3.09 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE,ABS,GL,BV,LR,DNV,UL
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Installation Temperature (°F) | : | -76 |
| Maximum Operating Temperature (°F) | : | 1000 |
| Color | : | Natural |
| Body Thickness (In.) | : | 0.01 |
| Minimum Loop Tensile Strength (N) | : | 2670 |
| Minimum Installation Temperature (°C) | : | -60 |
| Body Width (In.) | : | 0.5 |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Length (mm) | : | 434 |
| Overall Length (In.) | : | 17.1 |
| Material | : | Stainless Steel Type 316 |
| Maximum Operating Temperature (°C) | : | 538 |
| Maximum Bundle Diameter (mm) | : | 102 |
| Application | : | Corrosive Environment |
| Body Thickness (mm) | : | 0.3 |
| Maximum Bundle Diameter (In.) | : | 4 |
| Minimum Bundle Diameter (In.) | : | 1 |
| Body Width (mm) | : | 12.7 |
| Resistance Properties | : | UV-Resistant |
| Minimum Loop Tensile Strength (lb) | : | 600 |
| Sub Brand | : | Pan-Steel® |
| Minimum Bundle Diameter (mm) | : | 25.4 |
| For Use With | : | RT2HT,ST3MT |
| Product Type | : | Cable Tie |
| Environment | : | Harsh |
Packaging Details | ||
| UPC | : | 07498344596 |
| GTIN Package | : | 00074983445967 |
| Standard Package Volume Ft3 | : | 0.1351 |
| Standard Package Weight Pounds | : | 1.8350 |
| Std Package Height In | : | 1.8 |
| Std Package Height MM | : | 45.72 |
| Std Package Length In | : | 24 |
| Std Package Length MM | : | 609.6 |
| Std Package Width In | : | 5.8 |
| Std Package Width MM | : | 147.32 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983445962 |
| Standard Carton Volume Ft3 | : | 0.6754 |
| Standard Carton Weight Pounds | : | 9.1750 |
| Std Carton Height In | : | 8.4 |
| Std Carton Height MM | : | 213.36 |
| Std Carton Length In | : | 20 |
| Std Carton Length MM | : | 508 |
| Std Carton Width In | : | 7.2 |
| Std Carton Width MM | : | 182.88 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983445967 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 15,000 |
| Pallet Volume | : | 40.526521 |
| Pallet Weight | : | 550.5000 |
| RoHS Compliant | : | Compliant |
