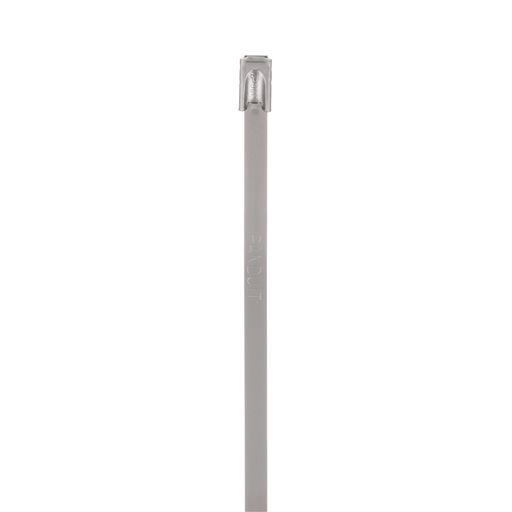

Pan-Steel® MLT4S-D Cable Tie, SS 304, Standard, 4" Dia., PK500
MFG #MLT4S-D
$1.47 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
The MLT4S-D Pan-Steel® 304 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLT4SD
UPC
074983754199
Manufacturer Part Number
MLT4S-D
Manufacturer
Panduit
Pan-Steel® MLT4S-D Cable Tie, SS 304, Standard, 4" Dia., PK500
MFG #MLT4S-D
Product Description:
The MLT4S-D Pan-Steel® 304 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLT4SD
UPC
074983754199
Manufacturer Part Number
MLT4S-D
Manufacturer
Panduit
$1.47 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL E56854,CE,ABS,GL,BV,LR,DNV
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Installation Temperature (°C) | : | -60 |
| Sub Brand | : | Pan-Steel® |
| Maximum Operating Temperature (°C) | : | 300 |
| Color | : | Metallic |
| Body Thickness (mm) | : | 0.3 |
| Maximum Bundle Diameter (mm) | : | 102 |
| Maximum Bundle Diameter (In.) | : | 4 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Overall Length (In.) | : | 14.3 |
| Overall Length (mm) | : | 362 |
| Minimum Loop Tensile Strength (N) | : | 890 |
| Resistance Properties | : | UV-Resistant |
| Body Thickness (In.) | : | 0.01 |
| Body Width (In.) | : | 0.18 |
| Minimum Loop Tensile Strength (lb) | : | 200 |
| Minimum Operating Temperature (°C) | : | -60 |
| Environment | : | Indoor/Outdoor |
| Body Width (mm) | : | 4.6 |
| Maximum Operating Temperature (°F) | : | 1000 |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT |
| Material | : | Stainless Steel Type 304 |
| Product Type | : | Cable Tie |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Application | : | General |
| Minimum Installation Temperature (°F) | : | -76 |
Packaging Details | ||
| UPC | : | 07498375419 |
| GTIN Package | : | 00074983754199 |
| Standard Package Volume Ft3 | : | 0.0880 |
| Standard Package Weight Pounds | : | 4.4000 |
| Std Package Height In | : | .6 |
| Std Package Height MM | : | 15.24 |
| Std Package Length In | : | 20 |
| Std Package Length MM | : | 508 |
| Std Package Width In | : | 8 |
| Std Package Width MM | : | 203.2 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| GTIN Carton | : | 50074983754194 |
| Standard Carton Volume Ft3 | : | 0.8805 |
| Standard Carton Weight Pounds | : | 44.0000 |
| Std Carton Height In | : | 9 |
| Std Carton Height MM | : | 228.6 |
| Std Carton Length In | : | 17.25 |
| Std Carton Length MM | : | 438.15 |
| Std Carton Width In | : | 9.25 |
| Std Carton Width MM | : | 234.95 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983754199 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 225,000 |
| Pallet Volume | : | 39.622202 |
| Pallet Weight | : | 1,980.0000 |
| RoHS Compliant | : | Compliant |
