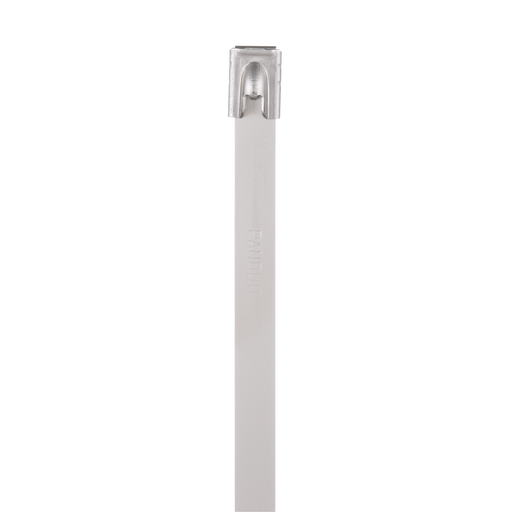

Pan-Steel® MLT6H-LP316 Cable Tie, SS 316, Heavy, 6" Dia., PK50
MFG #MLT6H-LP316
$3.46 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
The MLT6H-LP316 Pan-Steel® 316 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLT6HLP316
UPC
074983543908
Manufacturer Part Number
MLT6H-LP316
Manufacturer
Panduit
Pan-Steel® MLT6H-LP316 Cable Tie, SS 316, Heavy, 6" Dia., PK50
MFG #MLT6H-LP316
Product Description:
The MLT6H-LP316 Pan-Steel® 316 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLT6HLP316
UPC
074983543908
Manufacturer Part Number
MLT6H-LP316
Manufacturer
Panduit
$3.46 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL E56854,CE,ABS,GL,SAE,BV,LR,DNV,USCG
- No
Packaging Details
| UPC | : | 07498354390 |
| GTIN Package | : | 00074983543908 |
| Standard Package Volume Ft3 | : | 0.0326 |
| Standard Package Weight Pounds | : | 1.1650 |
| Std Package Height In | : | 1.4 |
| Std Package Height MM | : | 35.56 |
| Std Package Length In | : | 21.55 |
| Std Package Length MM | : | 547.37 |
| Std Package Width In | : | 5.5 |
| Std Package Width MM | : | 139.7 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983543903 |
| Standard Carton Volume Ft3 | : | 0.1631 |
| Standard Carton Weight Pounds | : | 5.8250 |
| Std Carton Height In | : | 1.95 |
| Std Carton Height MM | : | 49.53 |
| Std Carton Length In | : | 24.95 |
| Std Carton Length MM | : | 633.73 |
| Std Carton Width In | : | 5.8 |
| Std Carton Width MM | : | 147.32 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983543908 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 70,000 |
| Pallet Volume | : | 45.670069 |
| Pallet Weight | : | 1,631.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States, China |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Maximum Bundle Diameter (mm) | : | 152 |
| Maximum Bundle Diameter (In.) | : | 6 |
| Body Thickness (In.) | : | 0.01 |
| Body Width (mm) | : | 7.9 |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT |
| Overall Length (In.) | : | 20.5 |
| Minimum Installation Temperature (°F) | : | -76 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Minimum Installation Temperature (°C) | : | -60 |
| Minimum Loop Tensile Strength (lb) | : | 450 |
| Resistance Properties | : | UV-Resistant |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Length (mm) | : | 521 |
| Product Type | : | Cable Tie |
| Maximum Operating Temperature (°F) | : | 1000 |
| Body Thickness (mm) | : | 0.3 |
| Military Cross Reference Number | : | M23190/3-7 |
| Color | : | Metallic |
| Environment | : | Harsh |
| Sub Brand | : | Pan-Steel® |
| Minimum Loop Tensile Strength (N) | : | 2000 |
| Body Width (In.) | : | 0.31 |
| Minimum Operating Temperature (°F) | : | -76 |
| Material | : | Stainless Steel Type 316 |
| Application | : | Harsh Environment |
| Maximum Operating Temperature (°C) | : | 538 |
Videos 1
Videos 2
Videos 2
- Standards Met: UL E56854,CE,ABS,GL,SAE,BV,LR,DNV,USCG
- No
Packaging Details
UPC : 07498354390 GTIN Package : 00074983543908 Standard Package Volume Ft3 : 0.0326 Standard Package Weight Pounds : 1.1650 Std Package Height In : 1.4 Std Package Height MM : 35.56 Std Package Length In : 21.55 Std Package Length MM : 547.37 Std Package Width In : 5.5 Std Package Width MM : 139.7 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 GTIN Carton : 50074983543903 Standard Carton Volume Ft3 : 0.1631 Standard Carton Weight Pounds : 5.8250 Std Carton Height In : 1.95 Std Carton Height MM : 49.53 Std Carton Length In : 24.95 Std Carton Length MM : 633.73 Std Carton Width In : 5.8 Std Carton Width MM : 147.32 Std Ctn Qty : 250 Min. Order UOM : Piece EAN : 00074983543908 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 70,000 Pallet Volume : 45.670069 Pallet Weight : 1,631.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States, China Any Reason Not to Sell : N Product Segment : IEI Minimum Bundle Diameter (In.) : 0.5 Maximum Bundle Diameter (mm) : 152 Maximum Bundle Diameter (In.) : 6 Body Thickness (In.) : 0.01 Body Width (mm) : 7.9 For Use With : GS4MT-E, HTMT, PPTMT, ST2MT Overall Length (In.) : 20.5 Minimum Installation Temperature (°F) : -76 Minimum Bundle Diameter (mm) : 12.7 Minimum Installation Temperature (°C) : -60 Minimum Loop Tensile Strength (lb) : 450 Resistance Properties : UV-Resistant Minimum Operating Temperature (°C) : -60 Overall Length (mm) : 521 Product Type : Cable Tie Maximum Operating Temperature (°F) : 1000 Body Thickness (mm) : 0.3 Military Cross Reference Number : M23190/3-7 Color : Metallic Environment : Harsh Sub Brand : Pan-Steel® Minimum Loop Tensile Strength (N) : 2000 Body Width (In.) : 0.31 Minimum Operating Temperature (°F) : -76 Material : Stainless Steel Type 316 Application : Harsh Environment Maximum Operating Temperature (°C) : 538 - Product Bulletins
