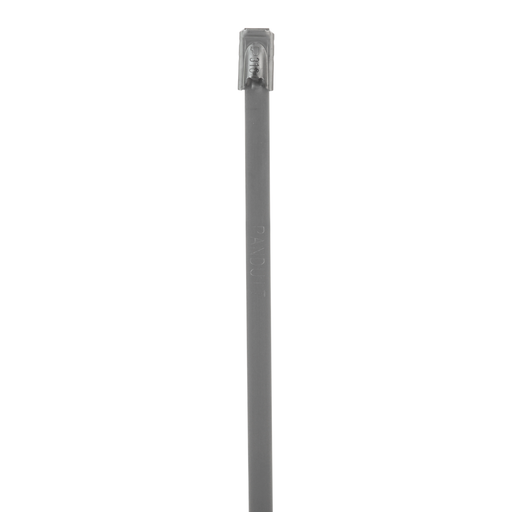

Pan-Steel® MLT6S-CP316 Cable Tie, SS 316, Standard, 6" Dia., PK100
MFG #MLT6S-CP316
$2.89 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
The MLT6S-CP316 Pan-Steel® 316 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLT6SCP316
UPC
074983544035
Manufacturer Part Number
MLT6S-CP316
Manufacturer
Panduit
Pan-Steel® MLT6S-CP316 Cable Tie, SS 316, Standard, 6" Dia., PK100
MFG #MLT6S-CP316
Product Description:
The MLT6S-CP316 Pan-Steel® 316 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLT6SCP316
UPC
074983544035
Manufacturer Part Number
MLT6S-CP316
Manufacturer
Panduit
$2.89 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL E56854,CE,ABS,GL,SAE,BV,LR,DNV
- No
Packaging Details
| UPC | : | 07498354403 |
| GTIN Package | : | 00074983544035 |
| Standard Package Volume Ft3 | : | 0.0326 |
| Standard Package Weight Pounds | : | 1.2000 |
| Std Package Height In | : | .7 |
| Std Package Height MM | : | 17.78 |
| Std Package Length In | : | 21.5 |
| Std Package Length MM | : | 546.1 |
| Std Package Width In | : | 3.9 |
| Std Package Width MM | : | 99.06 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983544030 |
| Standard Carton Volume Ft3 | : | 0.1631 |
| Standard Carton Weight Pounds | : | 6.0000 |
| Std Carton Height In | : | 2.9 |
| Std Carton Height MM | : | 73.66 |
| Std Carton Length In | : | 22.9 |
| Std Carton Length MM | : | 581.66 |
| Std Carton Width In | : | 4.2 |
| Std Carton Width MM | : | 106.68 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983544035 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 90,000 |
| Pallet Volume | : | 29.359330 |
| Pallet Weight | : | 1,080.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States, China |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Environment | : | Harsh |
| Maximum Bundle Diameter (mm) | : | 152 |
| Minimum Loop Tensile Strength (N) | : | 890 |
| Product Type | : | Cable Tie |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Color | : | Metallic |
| Body Thickness (mm) | : | 0.3 |
| Maximum Bundle Diameter (In.) | : | 6 |
| Body Width (In.) | : | 0.18 |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Military Cross Reference Number | : | M23190/3-3 |
| Resistance Properties | : | UV-Resistant |
| Maximum Operating Temperature (°C) | : | 538 |
| Minimum Operating Temperature (°F) | : | -76 |
| Material | : | Stainless Steel Type 316 |
| Overall Length (In.) | : | 20.5 |
| Body Thickness (In.) | : | 0.01 |
| Sub Brand | : | Pan-Steel® |
| Minimum Installation Temperature (°F) | : | -76 |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Installation Temperature (°C) | : | -60 |
| Minimum Loop Tensile Strength (lb) | : | 200 |
| Application | : | Harsh Environment |
| Maximum Operating Temperature (°F) | : | 1000 |
| Body Width (mm) | : | 4.6 |
| Overall Length (mm) | : | 521 |
Videos 1
Videos 2
Videos 2
- Standards Met: UL E56854,CE,ABS,GL,SAE,BV,LR,DNV
- No
Packaging Details
UPC : 07498354403 GTIN Package : 00074983544035 Standard Package Volume Ft3 : 0.0326 Standard Package Weight Pounds : 1.2000 Std Package Height In : .7 Std Package Height MM : 17.78 Std Package Length In : 21.5 Std Package Length MM : 546.1 Std Package Width In : 3.9 Std Package Width MM : 99.06 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983544030 Standard Carton Volume Ft3 : 0.1631 Standard Carton Weight Pounds : 6.0000 Std Carton Height In : 2.9 Std Carton Height MM : 73.66 Std Carton Length In : 22.9 Std Carton Length MM : 581.66 Std Carton Width In : 4.2 Std Carton Width MM : 106.68 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983544035 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 90,000 Pallet Volume : 29.359330 Pallet Weight : 1,080.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States, China Any Reason Not to Sell : N Product Segment : IEI Environment : Harsh Maximum Bundle Diameter (mm) : 152 Minimum Loop Tensile Strength (N) : 890 Product Type : Cable Tie Minimum Bundle Diameter (In.) : 0.5 Color : Metallic Body Thickness (mm) : 0.3 Maximum Bundle Diameter (In.) : 6 Body Width (In.) : 0.18 For Use With : GS4MT-E, HTMT, PPTMT, ST2MT Minimum Bundle Diameter (mm) : 12.7 Military Cross Reference Number : M23190/3-3 Resistance Properties : UV-Resistant Maximum Operating Temperature (°C) : 538 Minimum Operating Temperature (°F) : -76 Material : Stainless Steel Type 316 Overall Length (In.) : 20.5 Body Thickness (In.) : 0.01 Sub Brand : Pan-Steel® Minimum Installation Temperature (°F) : -76 Minimum Operating Temperature (°C) : -60 Minimum Installation Temperature (°C) : -60 Minimum Loop Tensile Strength (lb) : 200 Application : Harsh Environment Maximum Operating Temperature (°F) : 1000 Body Width (mm) : 4.6 Overall Length (mm) : 521 - Part Drawings
