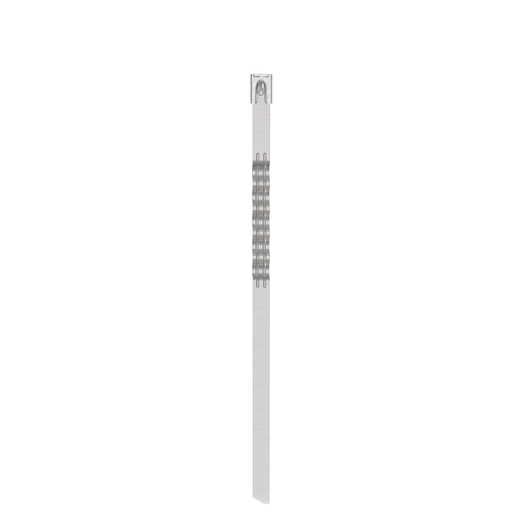

Wave-Ty™ MLT6WH-LP Wave Cable Tie, SS 304, Heavy, 6" Dia., PK50
MFG #MLT6WH-LP
$3.36 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
The MLT6WH-LP Pan-Steel® Wave-Ty™ 304 grade stainless steel cable tie maintains greater installed tension in applications with non-resilient objects due to its patented wave-form spring design. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLT6WHLP
UPC
074983765133
Manufacturer Part Number
MLT6WH-LP
Manufacturer
Panduit
Wave-Ty™ MLT6WH-LP Wave Cable Tie, SS 304, Heavy, 6" Dia., PK50
MFG #MLT6WH-LP
Product Description:
The MLT6WH-LP Pan-Steel® Wave-Ty™ 304 grade stainless steel cable tie maintains greater installed tension in applications with non-resilient objects due to its patented wave-form spring design. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLT6WHLP
UPC
074983765133
Manufacturer Part Number
MLT6WH-LP
Manufacturer
Panduit
$3.36 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL E56854,CE,ABS,GL,BV,LR
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Body Width (In.) | : | 0.31 |
| Material | : | Stainless Steel Type 304 |
| Product Type | : | Cable Tie |
| Application | : | Thermal Expansion |
| Minimum Loop Tensile Strength (lb) | : | 450 |
| Minimum Bundle Diameter (mm) | : | 51 |
| Overall Length (mm) | : | 521 |
| Body Thickness (In.) | : | 0.01 |
| Body Width (mm) | : | 7.9 |
| Body Thickness (mm) | : | 0.3 |
| Maximum Operating Temperature (°C) | : | 538 |
| Minimum Operating Temperature (°C) | : | -60 |
| Maximum Bundle Diameter (In.) | : | 6 |
| Minimum Installation Temperature (°C) | : | -60 |
| Resistance Properties | : | UV-Resistant |
| Color | : | Metallic |
| Minimum Installation Temperature (°F) | : | -76 |
| Overall Length (In.) | : | 20.5 |
| Environment | : | Indoor/Outdoor |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT |
| Maximum Operating Temperature (°F) | : | 1000 |
| Sub Brand | : | Wave-Ty™ |
| Maximum Bundle Diameter (mm) | : | 152 |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Loop Tensile Strength (N) | : | 2000 |
| Minimum Bundle Diameter (In.) | : | 2 |
Packaging Details | ||
| UPC | : | 07498376513 |
| GTIN Package | : | 00074983765133 |
| Standard Package Volume Ft3 | : | 0.0332 |
| Standard Package Weight Pounds | : | 1.2200 |
| Std Package Height In | : | .5 |
| Std Package Height MM | : | 12.7 |
| Std Package Length In | : | 24 |
| Std Package Length MM | : | 609.6 |
| Std Package Width In | : | 4 |
| Std Package Width MM | : | 101.6 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983765138 |
| Standard Carton Volume Ft3 | : | 0.1662 |
| Standard Carton Weight Pounds | : | 6.1000 |
| Std Carton Height In | : | 3.1 |
| Std Carton Height MM | : | 78.74 |
| Std Carton Length In | : | 22.6 |
| Std Carton Length MM | : | 574.04 |
| Std Carton Width In | : | 4.1 |
| Std Carton Width MM | : | 104.14 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983765133 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 70,000 |
| Pallet Volume | : | 46.544491 |
| Pallet Weight | : | 1,708.0000 |
| RoHS Compliant | : | Compliant |
