Panduit

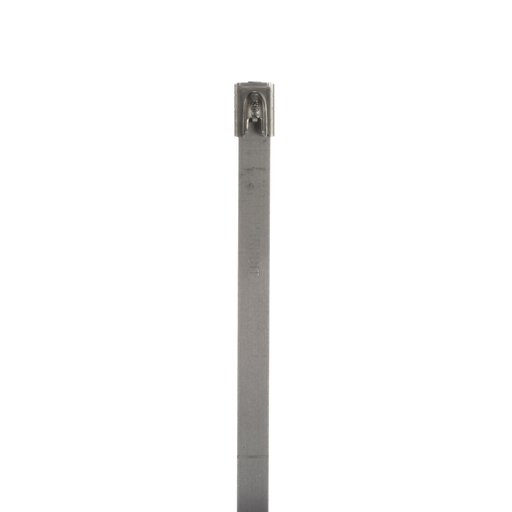

Pan-Steel® MLT8H-LP Cable Tie, SS 304, Heavy, 8" Dia., PK50
MFG #MLT8H-LP
$3.44 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
The MLT8H-LP self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT8H-LP cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
HESCO Part Number
PANMLT8HLP
UPC
074983543915
Manufacturer Part Number
MLT8H-LP
Manufacturer
Panduit
Panduit
Pan-Steel® MLT8H-LP Cable Tie, SS 304, Heavy, 8" Dia., PK50
MFG #MLT8H-LP
Product Description:
The MLT8H-LP self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT8H-LP cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
HESCO Part Number
PANMLT8HLP
UPC
074983543915
Manufacturer Part Number
MLT8H-LP
Manufacturer
Panduit
$3.44 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL E56854,CE,ABS,GL,SAE,BV,LR,DNV,USCG
Specifications
| Country of Origin | : | United States, China |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Body Width (In.) | : | 0.31 |
| Product Type | : | Cable Tie |
| Minimum Installation Temperature (°F) | : | -76 |
| Minimum Installation Temperature (°C) | : | -60 |
| Minimum Loop Tensile Strength (lb) | : | 450 |
| Body Thickness (mm) | : | 0.3 |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Maximum Bundle Diameter (In.) | : | 8 |
| Environment | : | Indoor/Outdoor |
| Maximum Bundle Diameter (mm) | : | 203 |
| Body Thickness (In.) | : | 0.01 |
| Material | : | Stainless Steel Type 304 |
| Color | : | Metallic |
| Application | : | General |
| Resistance Properties | : | UV-Resistant |
| Sub Brand | : | Pan-Steel® |
| Military Cross Reference Number | : | M23190/3-8 |
| Minimum Loop Tensile Strength (N) | : | 2000 |
| Maximum Operating Temperature (°C) | : | 538 |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Operating Temperature (°F) | : | -76 |
| Body Width (mm) | : | 7.9 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Overall Length (mm) | : | 679 |
| Overall Length (In.) | : | 26.8 |
| Maximum Operating Temperature (°F) | : | 1000 |
Packaging Details | ||
| UPC | : | 07498354391 |
| GTIN Package | : | 00074983543915 |
| Standard Package Volume Ft3 | : | 0.0422 |
| Standard Package Weight Pounds | : | 1.4400 |
| Std Package Height In | : | 1.35 |
| Std Package Height MM | : | 34.29 |
| Std Package Length In | : | 28.25 |
| Std Package Length MM | : | 717.55 |
| Std Package Width In | : | 3.85 |
| Std Package Width MM | : | 97.79 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983543910 |
| Standard Carton Volume Ft3 | : | 0.2108 |
| Standard Carton Weight Pounds | : | 7.2000 |
| Std Carton Height In | : | 2.95 |
| Std Carton Height MM | : | 74.93 |
| Std Carton Length In | : | 29.95 |
| Std Carton Length MM | : | 760.73 |
| Std Carton Width In | : | 4.4 |
| Std Carton Width MM | : | 111.76 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983543915 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 20,000 |
| Pallet Volume | : | 16.860278 |
| Pallet Weight | : | 576.0000 |
| RoHS Compliant | : | Compliant |
