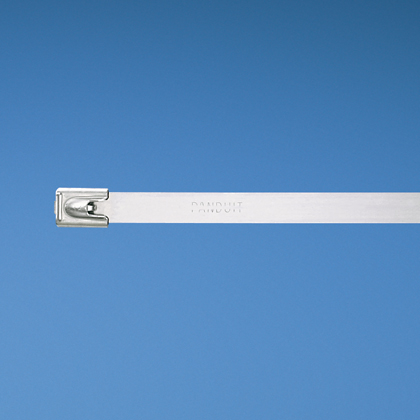

Pan-Steel® MLT8LH-LP Stainless Steel Cable Ties
MFG #MLT8LH-LP
$3.24 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
Pan-Steel® Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 304 stainless steel promote worker safety in indoor environments. Light-heavy cross section, Max bundle diameter: 8in, 26.8in, Tensile strength: 1112, 50pc.
HESCO Part Number
PANMLT8LHLP
UPC
074983421732
Manufacturer Part Number
MLT8LH-LP
Manufacturer
Panduit
Pan-Steel® MLT8LH-LP Stainless Steel Cable Ties
MFG #MLT8LH-LP
Product Description:
Pan-Steel® Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 304 stainless steel promote worker safety in indoor environments. Light-heavy cross section, Max bundle diameter: 8in, 26.8in, Tensile strength: 1112, 50pc.
HESCO Part Number
PANMLT8LHLP
UPC
074983421732
Manufacturer Part Number
MLT8LH-LP
Manufacturer
Panduit
$3.24 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL E56854,CE,ABS,GL,BV,LR
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Loop Tensile Strength (lb) | : | 250 |
| Body Width (mm) | : | 6.4 |
| Product Type | : | Cable Tie |
| Environment | : | Indoor/Outdoor |
| Maximum Operating Temperature (°F) | : | 1000 |
| Minimum Installation Temperature (°F) | : | -76 |
| Resistance Properties | : | UV-Resistant |
| Color | : | Natural |
| Overall Length (In.) | : | 26.8 |
| Application | : | General |
| Sub Brand | : | Pan-Steel® |
| Body Thickness (mm) | : | 0.3 |
| Minimum Loop Tensile Strength (N) | : | 1112 |
| Maximum Bundle Diameter (mm) | : | 203 |
| Maximum Operating Temperature (°C) | : | 538 |
| Material | : | Stainless Steel Type 304 |
| Minimum Installation Temperature (°C) | : | -60 |
| Maximum Bundle Diameter (In.) | : | 8 |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT,ST3MT |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Body Thickness (In.) | : | 0.01 |
| Body Width (In.) | : | 0.25 |
| Overall Length (mm) | : | 679 |
| Minimum Operating Temperature (°C) | : | -60 |
Packaging Details | ||
| UPC | : | 07498342173 |
| GTIN Package | : | 00074983421732 |
| Standard Package Volume Ft3 | : | 0.0429 |
| Standard Package Weight Pounds | : | 1.1800 |
| Std Package Height In | : | .5 |
| Std Package Height MM | : | 12.7 |
| Std Package Length In | : | 32 |
| Std Package Length MM | : | 812.8 |
| Std Package Width In | : | 4 |
| Std Package Width MM | : | 101.6 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983421737 |
| Standard Carton Volume Ft3 | : | 0.2143 |
| Standard Carton Weight Pounds | : | 5.9000 |
| Std Carton Height In | : | 29.7 |
| Std Carton Height MM | : | 754.38 |
| Std Carton Length In | : | 2.9 |
| Std Carton Length MM | : | 73.66 |
| Std Carton Width In | : | 4.3 |
| Std Carton Width MM | : | 109.22 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983421732 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 42,000 |
| Pallet Volume | : | 36.007125 |
| Pallet Weight | : | 991.2000 |
| RoHS Compliant | : | Compliant |
