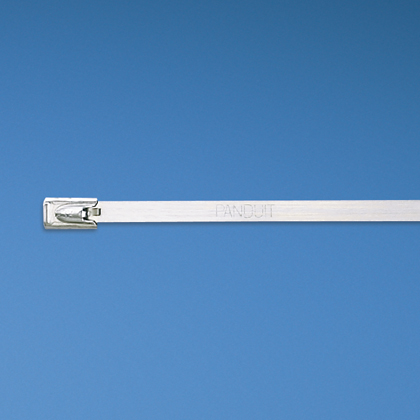

Pan-Steel® MLT8S-CP316 Stainless Steel Cable Ties
MFG #MLT8S-CP316
$4.02 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Pan-Steel® Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 316 stainless steel promote worker safety in indoor, outdoor and underground environments. Standard cross section, Max bundle diameter: 8in, 26.8in, Tensile strength: 890, 100pc.
HESCO Part Number
PANMLT8SCP316
UPC
074983544080
Manufacturer Part Number
MLT8S-CP316
Manufacturer
Panduit
Pan-Steel® MLT8S-CP316 Stainless Steel Cable Ties
MFG #MLT8S-CP316
Product Description:
Pan-Steel® Self-locking Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, the smooth edges of 316 stainless steel promote worker safety in indoor, outdoor and underground environments. Standard cross section, Max bundle diameter: 8in, 26.8in, Tensile strength: 890, 100pc.
HESCO Part Number
PANMLT8SCP316
UPC
074983544080
Manufacturer Part Number
MLT8S-CP316
Manufacturer
Panduit
$4.02 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL E56854,CE,ABS,GL,SAE
- No
Packaging Details
| UPC | : | 07498354408 |
| GTIN Package | : | 00074983544080 |
| Standard Package Volume Ft3 | : | 0.0426 |
| Standard Package Weight Pounds | : | 1.6300 |
| Std Package Height In | : | .5 |
| Std Package Height MM | : | 12.7 |
| Std Package Length In | : | 32 |
| Std Package Length MM | : | 812.8 |
| Std Package Width In | : | 4 |
| Std Package Width MM | : | 101.6 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983544085 |
| Standard Carton Volume Ft3 | : | 0.2130 |
| Standard Carton Weight Pounds | : | 8.1500 |
| Std Carton Height In | : | 2.9 |
| Std Carton Height MM | : | 73.66 |
| Std Carton Length In | : | 29.7 |
| Std Carton Length MM | : | 754.38 |
| Std Carton Width In | : | 4.2 |
| Std Carton Width MM | : | 106.68 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983544080 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 84,000 |
| Pallet Volume | : | 35.785533 |
| Pallet Weight | : | 1,369.2000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States, China |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Installation Temperature (°F) | : | -76 |
| Material | : | Stainless Steel Type 316 |
| Sub Brand | : | Pan-Steel® |
| Minimum Loop Tensile Strength (lb) | : | 200 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Minimum Operating Temperature (°F) | : | -76 |
| Overall Length (In.) | : | 26.8 |
| Body Thickness (In.) | : | 0.01 |
| Maximum Bundle Diameter (mm) | : | 203 |
| Maximum Operating Temperature (°F) | : | 1000 |
| Minimum Loop Tensile Strength (N) | : | 890 |
| Military Cross Reference Number | : | M23190/3-4 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Color | : | Natural |
| Minimum Operating Temperature (°C) | : | -60 |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT,ST3MT |
| Maximum Operating Temperature (°C) | : | 538 |
| Maximum Bundle Diameter (In.) | : | 8 |
| Minimum Installation Temperature (°C) | : | -60 |
| Body Width (In.) | : | 0.18 |
| Application | : | Corrosive Environment |
| Body Thickness (mm) | : | 0.3 |
| Body Width (mm) | : | 4.6 |
| Environment | : | Harsh |
| Product Type | : | Cable Tie |
| Overall Length (mm) | : | 679 |
| Resistance Properties | : | UV-Resistant |
