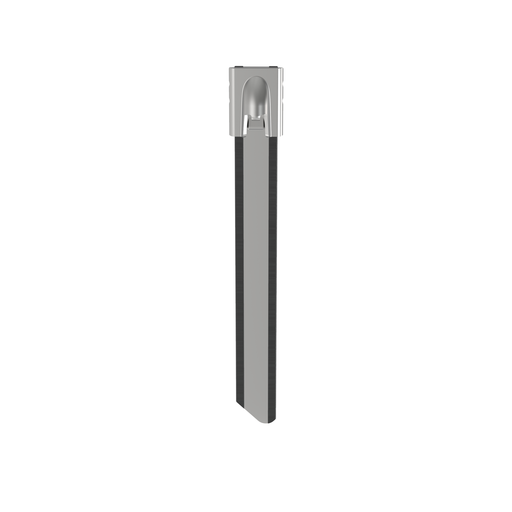

Pan-Steel® MLTC10H-LP316 Cable Tie, PA 11 Coated SS 316, Black, Heavy, 10" Dia.
MFG #MLTC10H-LP316
$9.77 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
The MLT10H-LP316 Pan-Steel® 316 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLTC10HLP316
UPC
074983225521
Manufacturer Part Number
MLTC10H-LP316
Manufacturer
Panduit
Pan-Steel® MLTC10H-LP316 Cable Tie, PA 11 Coated SS 316, Black, Heavy, 10" Dia.
MFG #MLTC10H-LP316
Product Description:
The MLT10H-LP316 Pan-Steel® 316 grade stainless steel cable tie speeds up installation with a patented, wide entry self-locking head that eases band threading and insertion. Unique locking ramp design and strengthening ribs allows the tie to lock into place at any length along the tie body with increased lock strength. Fully rounded edges ensure worker and bundle safety.
HESCO Part Number
PANMLTC10HLP316
UPC
074983225521
Manufacturer Part Number
MLTC10H-LP316
Manufacturer
Panduit
$9.77 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL E56854,CE,ABS
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (mm) | : | 838 |
| Maximum Operating Temperature (°F) | : | 284 |
| Body Thickness (mm) | : | 0.5 |
| Minimum Installation Temperature (°C) | : | -40 |
| Sub Brand | : | Pan-Steel® |
| Minimum Operating Temperature (°C) | : | -40 |
| Application | : | Harsh Environment |
| Resistance Properties | : | UV-Resistant |
| Material | : | Stainless Steel Type 316 |
| Product Type | : | Cable Tie |
| Body Thickness (In.) | : | 0.018 |
| Environment | : | Harsh |
| Minimum Installation Temperature (°F) | : | -40 |
| Color | : | Black |
| Minimum Loop Tensile Strength (lb) | : | 250 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Body Width (In.) | : | 0.319 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Overall Length (In.) | : | 33 |
| Maximum Bundle Diameter (mm) | : | 254 |
| Minimum Operating Temperature (°F) | : | -40 |
| For Use With | : | GS4MT-E, PBTMT, PPTMT, ST2MT, HTMT |
| Body Width (mm) | : | 8.1 |
| Maximum Bundle Diameter (In.) | : | 10 |
| Minimum Loop Tensile Strength (N) | : | 1112 |
| Maximum Operating Temperature (°C) | : | 140 |
| Finish/Coating | : | Nylon 11 Selectively Coated |
Packaging Details | ||
| UPC | : | 07498322552 |
| GTIN Package | : | 00074983225521 |
| Standard Package Volume Ft3 | : | 0.0512 |
| Standard Package Weight Pounds | : | 1.8300 |
| Std Package Height In | : | .5 |
| Std Package Height MM | : | 12.7 |
| Std Package Length In | : | 35 |
| Std Package Length MM | : | 889 |
| Std Package Width In | : | 4 |
| Std Package Width MM | : | 101.6 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983225526 |
| Standard Carton Volume Ft3 | : | 0.2558 |
| Standard Carton Weight Pounds | : | 9.1500 |
| Std Carton Height In | : | 2.9 |
| Std Carton Height MM | : | 73.66 |
| Std Carton Length In | : | 35.9 |
| Std Carton Length MM | : | 911.86 |
| Std Carton Width In | : | 4.2 |
| Std Carton Width MM | : | 106.68 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983225521 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | Y |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 35,000 |
| Pallet Volume | : | 35.809486 |
| Pallet Weight | : | 1,281.0000 |
| RoHS Compliant | : | Compliant |
