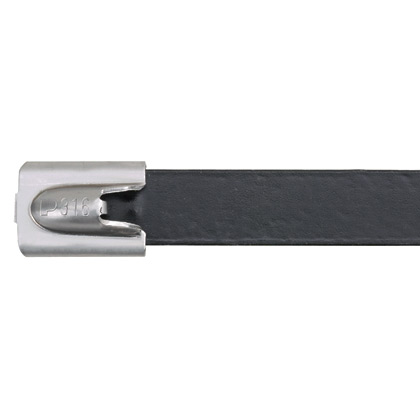

Pan-Steel® MLTFC2H-LP316 Cable Tie, PET Coated SS 316, Black, Heavy, 2" Dia.
MFG #MLTFC2H-LP316
$3.35 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
The MLTFC2H-LP316 fully coated polyester, self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any length along the tie body. The Polyester coating is UV-resistant, low smoke, and halogen free. The coating also provides additional edge protection and prevents corrosion between dissimilar metals.
HESCO Part Number
PANMLTFC2HLP316
UPC
074983593194
Manufacturer Part Number
MLTFC2H-LP316
Manufacturer
Panduit
Pan-Steel® MLTFC2H-LP316 Cable Tie, PET Coated SS 316, Black, Heavy, 2" Dia.
MFG #MLTFC2H-LP316
Product Description:
The MLTFC2H-LP316 fully coated polyester, self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any length along the tie body. The Polyester coating is UV-resistant, low smoke, and halogen free. The coating also provides additional edge protection and prevents corrosion between dissimilar metals.
HESCO Part Number
PANMLTFC2HLP316
UPC
074983593194
Manufacturer Part Number
MLTFC2H-LP316
Manufacturer
Panduit
$3.35 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: ABS,CE,UL
- No
Packaging Details
| UPC | : | 07498359319 |
| GTIN Package | : | 00074983593194 |
| Standard Package Volume Ft3 | : | 0.0154 |
| Standard Package Weight Pounds | : | 0.6550 |
| Std Package Height In | : | 1 |
| Std Package Height MM | : | 25.4 |
| Std Package Length In | : | 9.55 |
| Std Package Length MM | : | 242.57 |
| Std Package Width In | : | 3.95 |
| Std Package Width MM | : | 100.33 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983593199 |
| Standard Carton Volume Ft3 | : | 0.0768 |
| Standard Carton Weight Pounds | : | 3.2750 |
| Std Carton Height In | : | 1.9 |
| Std Carton Height MM | : | 48.26 |
| Std Carton Length In | : | 12.9 |
| Std Carton Length MM | : | 327.66 |
| Std Carton Width In | : | 5.7 |
| Std Carton Width MM | : | 144.78 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983593194 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 140,000 |
| Pallet Volume | : | 43.024722 |
| Pallet Weight | : | 1,834.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Body Thickness (mm) | : | 0.3 |
| Body Width (In.) | : | 0.319 |
| Minimum Operating Temperature (°F) | : | -40 |
| Color | : | Black |
| Minimum Loop Tensile Strength (N) | : | 1112 |
| Resistance Properties | : | UV-Resistant |
| Overall Length (In.) | : | 7.9 |
| Sub Brand | : | Pan-Steel® |
| Product Type | : | Cable Tie |
| Overall Length (mm) | : | 201 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Material | : | Stainless Steel Type 316 |
| Environment | : | Harsh |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| For Use With | : | GS4MT-E, PBTMT, PPTMT, ST2MT, HTMT |
| Maximum Bundle Diameter (mm) | : | 51 |
| Body Thickness (In.) | : | 0.01 |
| Maximum Operating Temperature (°F) | : | 302 |
| Minimum Installation Temperature (°F) | : | -40 |
| Minimum Operating Temperature (°C) | : | -40 |
| Application | : | Harsh Environment |
| Maximum Operating Temperature (°C) | : | 150 |
| Body Width (mm) | : | 8.1 |
| Maximum Bundle Diameter (In.) | : | 2 |
| Minimum Installation Temperature (°C) | : | -40 |
| Minimum Loop Tensile Strength (lb) | : | 250 |
| Finish/Coating | : | Polyester Fully-Coated |
