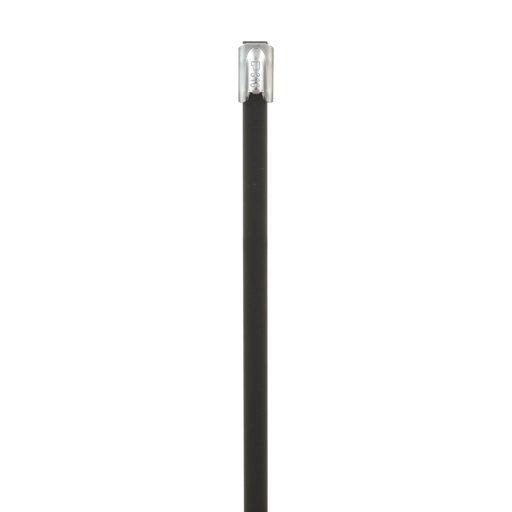

Pan-Steel® MLTFC2S-CP316 Cable Tie, PET Coated SS 316, Black, Standard, 2" Dia.
MFG #MLTFC2S-CP316
$2.79 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
The MLTFC2S-CP316 self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The 316 stainless steel is wrapped in UV-resistant, halogen-free, Polyester to promote worker safety and reliability in corrosive, high-vibration, temperature-extreme environments. The Polyester coating is available in six color options and provides visual indication for easy identification in color-coding applications.
HESCO Part Number
PANMLTFC2SCP316
UPC
074983593330
Manufacturer Part Number
MLTFC2S-CP316
Manufacturer
Panduit
Pan-Steel® MLTFC2S-CP316 Cable Tie, PET Coated SS 316, Black, Standard, 2" Dia.
MFG #MLTFC2S-CP316
Product Description:
The MLTFC2S-CP316 self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The 316 stainless steel is wrapped in UV-resistant, halogen-free, Polyester to promote worker safety and reliability in corrosive, high-vibration, temperature-extreme environments. The Polyester coating is available in six color options and provides visual indication for easy identification in color-coding applications.
HESCO Part Number
PANMLTFC2SCP316
UPC
074983593330
Manufacturer Part Number
MLTFC2S-CP316
Manufacturer
Panduit
$2.79 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL E56854,CE,ABS
Packaging Details
| UPC | : | 07498359333 |
| GTIN Package | : | 00074983593330 |
| Standard Package Volume Ft3 | : | 0.0155 |
| Standard Package Weight Pounds | : | 0.6600 |
| Std Package Height In | : | 1.15 |
| Std Package Height MM | : | 29.21 |
| Std Package Length In | : | 10.2 |
| Std Package Length MM | : | 259.08 |
| Std Package Width In | : | 4 |
| Std Package Width MM | : | 101.6 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983593335 |
| Standard Carton Volume Ft3 | : | 0.0776 |
| Standard Carton Weight Pounds | : | 3.3000 |
| Std Carton Height In | : | 1.85 |
| Std Carton Height MM | : | 46.99 |
| Std Carton Length In | : | 12.85 |
| Std Carton Length MM | : | 326.39 |
| Std Carton Width In | : | 5.7 |
| Std Carton Width MM | : | 144.78 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983593330 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 280,000 |
| Pallet Volume | : | 43.434471 |
| Pallet Weight | : | 1,848.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| For Use With | : | GS4MT-E, HTMT, PPTMT, ST2MT |
| Minimum Loop Tensile Strength (lb) | : | 100 |
| Minimum Operating Temperature (°F) | : | -40 |
| Overall Length (In.) | : | 7.9 |
| Maximum Operating Temperature (°F) | : | 302 |
| Product Type | : | Cable Tie |
| Resistance Properties | : | UV-Resistant |
| Minimum Installation Temperature (°F) | : | -40 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Overall Length (mm) | : | 201 |
| Environment | : | Harsh |
| Body Width (In.) | : | 0.18 |
| Maximum Bundle Diameter (In.) | : | 2 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Application | : | Harsh Environment |
| Maximum Operating Temperature (°C) | : | 150 |
| Material | : | Stainless Steel Type 316 |
| Minimum Installation Temperature (°C) | : | -40 |
| Minimum Operating Temperature (°C) | : | -40 |
| Body Thickness (mm) | : | 0.4 |
| Sub Brand | : | Pan-Steel® |
| Maximum Bundle Diameter (mm) | : | 51 |
| Minimum Loop Tensile Strength (N) | : | 445 |
| Body Thickness (In.) | : | 0.017 |
| Color | : | Black |
| Body Width (mm) | : | 4.6 |
| Finish/Coating | : | Polyester Fully-Coated |
Videos 1
- No
- Standards Met: UL E56854,CE,ABS
Packaging Details
UPC : 07498359333 GTIN Package : 00074983593330 Standard Package Volume Ft3 : 0.0155 Standard Package Weight Pounds : 0.6600 Std Package Height In : 1.15 Std Package Height MM : 29.21 Std Package Length In : 10.2 Std Package Length MM : 259.08 Std Package Width In : 4 Std Package Width MM : 101.6 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983593335 Standard Carton Volume Ft3 : 0.0776 Standard Carton Weight Pounds : 3.3000 Std Carton Height In : 1.85 Std Carton Height MM : 46.99 Std Carton Length In : 12.85 Std Carton Length MM : 326.39 Std Carton Width In : 5.7 Std Carton Width MM : 144.78 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983593330 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 280,000 Pallet Volume : 43.434471 Pallet Weight : 1,848.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI For Use With : GS4MT-E, HTMT, PPTMT, ST2MT Minimum Loop Tensile Strength (lb) : 100 Minimum Operating Temperature (°F) : -40 Overall Length (In.) : 7.9 Maximum Operating Temperature (°F) : 302 Product Type : Cable Tie Resistance Properties : UV-Resistant Minimum Installation Temperature (°F) : -40 Minimum Bundle Diameter (mm) : 12.7 Overall Length (mm) : 201 Environment : Harsh Body Width (In.) : 0.18 Maximum Bundle Diameter (In.) : 2 Minimum Bundle Diameter (In.) : 0.5 Application : Harsh Environment Maximum Operating Temperature (°C) : 150 Material : Stainless Steel Type 316 Minimum Installation Temperature (°C) : -40 Minimum Operating Temperature (°C) : -40 Body Thickness (mm) : 0.4 Sub Brand : Pan-Steel® Maximum Bundle Diameter (mm) : 51 Minimum Loop Tensile Strength (N) : 445 Body Thickness (In.) : 0.017 Color : Black Body Width (mm) : 4.6 Finish/Coating : Polyester Fully-Coated - Product Bulletins
