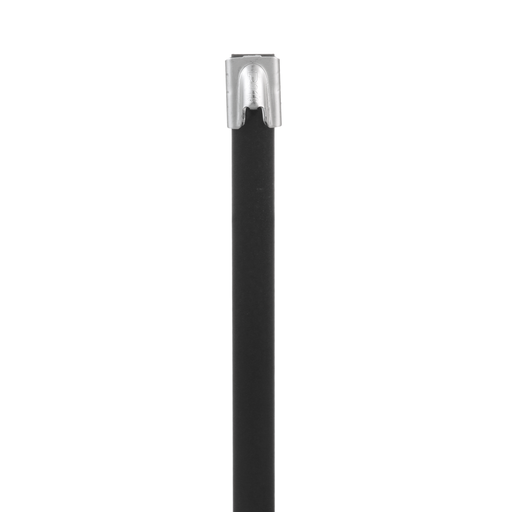

Pan-Steel® MLTFC4H-LP316 Cable Tie, PET Coated SS 316, Black, Heavy, 4" Dia.
MFG #MLTFC4H-LP316
$3.93 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
The MLTFC4H-LP316 self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The 316 stainless steel is wrapped in UV-resistant, halogen-free, Polyester to promote worker safety and reliability in corrosive, high-vibration, temperature-extreme environments. The Polyester coating is available in six color options and provides visual indication for easy identification in color-coding applications.
HESCO Part Number
PANMLTFC4HLP316
UPC
074983593255
Manufacturer Part Number
MLTFC4H-LP316
Manufacturer
Panduit
Pan-Steel® MLTFC4H-LP316 Cable Tie, PET Coated SS 316, Black, Heavy, 4" Dia.
MFG #MLTFC4H-LP316
Product Description:
The MLTFC4H-LP316 self-locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The 316 stainless steel is wrapped in UV-resistant, halogen-free, Polyester to promote worker safety and reliability in corrosive, high-vibration, temperature-extreme environments. The Polyester coating is available in six color options and provides visual indication for easy identification in color-coding applications.
HESCO Part Number
PANMLTFC4HLP316
UPC
074983593255
Manufacturer Part Number
MLTFC4H-LP316
Manufacturer
Panduit
$3.93 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: ABS,CE,UL
Packaging Details
| UPC | : | 07498359325 |
| GTIN Package | : | 00074983593255 |
| Standard Package Volume Ft3 | : | 0.0238 |
| Standard Package Weight Pounds | : | 0.9000 |
| Std Package Height In | : | 1.2 |
| Std Package Height MM | : | 30.48 |
| Std Package Length In | : | 16 |
| Std Package Length MM | : | 406.4 |
| Std Package Width In | : | 4 |
| Std Package Width MM | : | 101.6 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983593250 |
| Standard Carton Volume Ft3 | : | 0.1191 |
| Standard Carton Weight Pounds | : | 4.5000 |
| Std Carton Height In | : | 1.85 |
| Std Carton Height MM | : | 46.99 |
| Std Carton Length In | : | 18.9 |
| Std Carton Length MM | : | 480.06 |
| Std Carton Width In | : | 5.75 |
| Std Carton Width MM | : | 146.05 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983593255 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 84,000 |
| Pallet Volume | : | 40.024833 |
| Pallet Weight | : | 1,512.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Bundle Diameter (mm) | : | 102 |
| Minimum Installation Temperature (°F) | : | -40 |
| Maximum Bundle Diameter (In.) | : | 4 |
| Sub Brand | : | Pan-Steel® |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Minimum Operating Temperature (°F) | : | -40 |
| Minimum Loop Tensile Strength (lb) | : | 250 |
| Resistance Properties | : | UV-Resistant |
| Application | : | Harsh Environment |
| Minimum Operating Temperature (°C) | : | -40 |
| Material | : | Stainless Steel Type 316 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Maximum Operating Temperature (°F) | : | 302 |
| Body Width (In.) | : | 0.319 |
| Body Width (mm) | : | 8.1 |
| Minimum Installation Temperature (°C) | : | -40 |
| Color | : | Black |
| Maximum Operating Temperature (°C) | : | 150 |
| Product Type | : | Cable Tie |
| Body Thickness (In.) | : | 0.017 |
| Minimum Loop Tensile Strength (N) | : | 1112 |
| For Use With | : | GS4MT-E, PBTMT, PPTMT, ST2MT, HTMT |
| Environment | : | Harsh |
| Body Thickness (mm) | : | 0.4 |
| Overall Length (In.) | : | 14.3 |
| Overall Length (mm) | : | 362 |
| Finish/Coating | : | Polyester Fully-Coated |
Videos 1
- No
- Standards Met: ABS,CE,UL
Packaging Details
UPC : 07498359325 GTIN Package : 00074983593255 Standard Package Volume Ft3 : 0.0238 Standard Package Weight Pounds : 0.9000 Std Package Height In : 1.2 Std Package Height MM : 30.48 Std Package Length In : 16 Std Package Length MM : 406.4 Std Package Width In : 4 Std Package Width MM : 101.6 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 GTIN Carton : 50074983593250 Standard Carton Volume Ft3 : 0.1191 Standard Carton Weight Pounds : 4.5000 Std Carton Height In : 1.85 Std Carton Height MM : 46.99 Std Carton Length In : 18.9 Std Carton Length MM : 480.06 Std Carton Width In : 5.75 Std Carton Width MM : 146.05 Std Ctn Qty : 250 Min. Order UOM : Piece EAN : 00074983593255 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 84,000 Pallet Volume : 40.024833 Pallet Weight : 1,512.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Maximum Bundle Diameter (mm) : 102 Minimum Installation Temperature (°F) : -40 Maximum Bundle Diameter (In.) : 4 Sub Brand : Pan-Steel® Minimum Bundle Diameter (In.) : 0.5 Minimum Operating Temperature (°F) : -40 Minimum Loop Tensile Strength (lb) : 250 Resistance Properties : UV-Resistant Application : Harsh Environment Minimum Operating Temperature (°C) : -40 Material : Stainless Steel Type 316 Minimum Bundle Diameter (mm) : 12.7 Maximum Operating Temperature (°F) : 302 Body Width (In.) : 0.319 Body Width (mm) : 8.1 Minimum Installation Temperature (°C) : -40 Color : Black Maximum Operating Temperature (°C) : 150 Product Type : Cable Tie Body Thickness (In.) : 0.017 Minimum Loop Tensile Strength (N) : 1112 For Use With : GS4MT-E, PBTMT, PPTMT, ST2MT, HTMT Environment : Harsh Body Thickness (mm) : 0.4 Overall Length (In.) : 14.3 Overall Length (mm) : 362 Finish/Coating : Polyester Fully-Coated - Part Drawings
