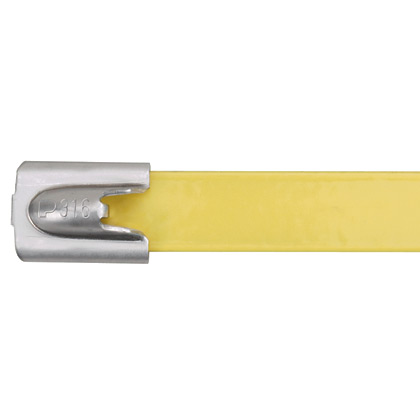

Pan-Steel® MLTFC4H-LP316YL Stainless Steel Cable Ties
MFG #MLTFC4H-LP316YL
$4.46 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
Pan-Steel® Polyester Fully Coated Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, 316 stainless steel is wrapped in UV-resistant, halogen-free, low-smoke Polyester to promote worker safety and reliability in corrosive, high-vibration, temperature-extreme environments. Heavy cross section, Max bundle diameter: 4.0in, 14.3in, Tensile strength: 1112, Yellow, 50pc.
HESCO Part Number
PANMLTFC4HLP316YL
UPC
074983117833
Manufacturer Part Number
MLTFC4H-LP316YL
Manufacturer
Panduit
Pan-Steel® MLTFC4H-LP316YL Stainless Steel Cable Ties
MFG #MLTFC4H-LP316YL
Product Description:
Pan-Steel® Polyester Fully Coated Cable Ties speed up installation with a unique self-locking head design that locks into any part of the tie. Plus, 316 stainless steel is wrapped in UV-resistant, halogen-free, low-smoke Polyester to promote worker safety and reliability in corrosive, high-vibration, temperature-extreme environments. Heavy cross section, Max bundle diameter: 4.0in, 14.3in, Tensile strength: 1112, Yellow, 50pc.
HESCO Part Number
PANMLTFC4HLP316YL
UPC
074983117833
Manufacturer Part Number
MLTFC4H-LP316YL
Manufacturer
Panduit
$4.46 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Standards Met: CE,ABS,UL
- No
Packaging Details
| UPC | : | 07498311783 |
| GTIN Package | : | 00074983117833 |
| Standard Package Volume Ft3 | : | 0.0275 |
| Standard Package Weight Pounds | : | 0.9400 |
| Std Package Height In | : | .5 |
| Std Package Height MM | : | 12.7 |
| Std Package Length In | : | 15.7 |
| Std Package Length MM | : | 398.78 |
| Std Package Width In | : | 4 |
| Std Package Width MM | : | 101.6 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983117838 |
| Standard Carton Volume Ft3 | : | 0.1377 |
| Standard Carton Weight Pounds | : | 4.7000 |
| Std Carton Height In | : | 3.2 |
| Std Carton Height MM | : | 81.28 |
| Std Carton Length In | : | 16.9 |
| Std Carton Length MM | : | 429.26 |
| Std Carton Width In | : | 4.4 |
| Std Carton Width MM | : | 111.76 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983117833 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 84,000 |
| Pallet Volume | : | 46.268444 |
| Pallet Weight | : | 1,579.2000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Bundle Diameter (In.) | : | 4 |
| Sub Brand | : | Pan-Steel® |
| Minimum Operating Temperature (°C) | : | -40 |
| Overall Length (mm) | : | 362 |
| Body Width (In.) | : | 0.31 |
| Maximum Operating Temperature (°F) | : | 302 |
| Minimum Operating Temperature (°F) | : | -40 |
| Application | : | Corrosive Environment |
| Material | : | Stainless Steel Type 316 |
| Resistance Properties | : | UV-Resistant |
| For Use With | : | HTMT, GS4MT, PPTMT, ST2MT |
| Maximum Bundle Diameter (mm) | : | 101.6 |
| Color | : | Yellow |
| Environment | : | Harsh |
| Maximum Operating Temperature (°C) | : | 150 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Minimum Installation Temperature (°F) | : | -40 |
| Minimum Loop Tensile Strength (lb) | : | 250 |
| Body Thickness (mm) | : | 0.4 |
| Finish/Coating | : | Polyester Fully-Coated |
| Product Type | : | Cable Tie |
| Overall Length (In.) | : | 14.3 |
| Minimum Installation Temperature (°C) | : | -40 |
| Minimum Loop Tensile Strength (N) | : | 1112 |
| Body Width (mm) | : | 7.9 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Body Thickness (In.) | : | 0.017 |
- Standards Met: CE,ABS,UL
- No
Packaging Details
UPC : 07498311783 GTIN Package : 00074983117833 Standard Package Volume Ft3 : 0.0275 Standard Package Weight Pounds : 0.9400 Std Package Height In : .5 Std Package Height MM : 12.7 Std Package Length In : 15.7 Std Package Length MM : 398.78 Std Package Width In : 4 Std Package Width MM : 101.6 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 GTIN Carton : 50074983117838 Standard Carton Volume Ft3 : 0.1377 Standard Carton Weight Pounds : 4.7000 Std Carton Height In : 3.2 Std Carton Height MM : 81.28 Std Carton Length In : 16.9 Std Carton Length MM : 429.26 Std Carton Width In : 4.4 Std Carton Width MM : 111.76 Std Ctn Qty : 250 Min. Order UOM : Piece EAN : 00074983117833 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 84,000 Pallet Volume : 46.268444 Pallet Weight : 1,579.2000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Maximum Bundle Diameter (In.) : 4 Sub Brand : Pan-Steel® Minimum Operating Temperature (°C) : -40 Overall Length (mm) : 362 Body Width (In.) : 0.31 Maximum Operating Temperature (°F) : 302 Minimum Operating Temperature (°F) : -40 Application : Corrosive Environment Material : Stainless Steel Type 316 Resistance Properties : UV-Resistant For Use With : HTMT, GS4MT, PPTMT, ST2MT Maximum Bundle Diameter (mm) : 101.6 Color : Yellow Environment : Harsh Maximum Operating Temperature (°C) : 150 Minimum Bundle Diameter (mm) : 12.7 Minimum Installation Temperature (°F) : -40 Minimum Loop Tensile Strength (lb) : 250 Body Thickness (mm) : 0.4 Finish/Coating : Polyester Fully-Coated Product Type : Cable Tie Overall Length (In.) : 14.3 Minimum Installation Temperature (°C) : -40 Minimum Loop Tensile Strength (N) : 1112 Body Width (mm) : 7.9 Minimum Bundle Diameter (In.) : 0.5 Body Thickness (In.) : 0.017 - Product Bulletins
