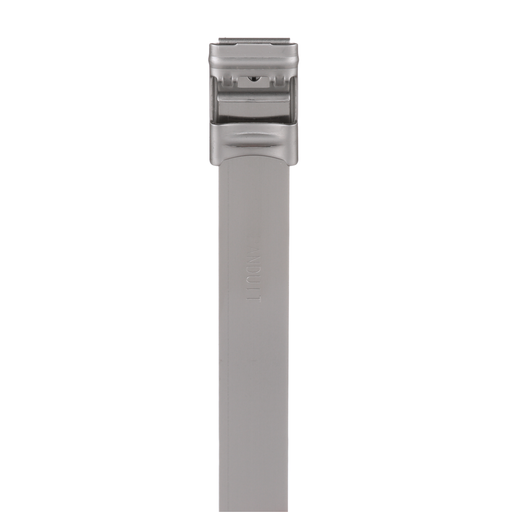

Pan-Steel® MS10W50T15-L4 Strapping, SS 304, 39" L, 671 lb Break Strength, PK50
MFG #MS10W50T15-L4
$3.40 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
The MS10W50T15-L4 Pan-Steel® Stainless Steel Strap is the ultimate solution for strapping applications. The buckle design and tension-controlled installation tool offer quick and safe installation for a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
HESCO Part Number
PANMS10W50T15L4
UPC
074983446964
Manufacturer Part Number
MS10W50T15-L4
Manufacturer
Panduit
Pan-Steel® MS10W50T15-L4 Strapping, SS 304, 39" L, 671 lb Break Strength, PK50
MFG #MS10W50T15-L4
Product Description:
The MS10W50T15-L4 Pan-Steel® Stainless Steel Strap is the ultimate solution for strapping applications. The buckle design and tension-controlled installation tool offer quick and safe installation for a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.
HESCO Part Number
PANMS10W50T15L4
UPC
074983446964
Manufacturer Part Number
MS10W50T15-L4
Manufacturer
Panduit
$3.40 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: RoHS Compliant,UL E56854, CE,ABS,GL,LR
Packaging Details
| UPC | : | 07498344696 |
| GTIN Package | : | 00074983446964 |
| Standard Package Volume Ft3 | : | 0.2123 |
| Standard Package Weight Pounds | : | 4.7500 |
| Std Package Height In | : | .5 |
| Std Package Height MM | : | 12.7 |
| Std Package Length In | : | 42 |
| Std Package Length MM | : | 1066.8 |
| Std Package Width In | : | 5.8 |
| Std Package Width MM | : | 147.32 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983446969 |
| Standard Carton Volume Ft3 | : | 1.0616 |
| Standard Carton Weight Pounds | : | 23.7500 |
| Std Carton Height In | : | 8.6 |
| Std Carton Height MM | : | 218.44 |
| Std Carton Length In | : | 39.5 |
| Std Carton Length MM | : | 1003.3 |
| Std Carton Width In | : | 5.4 |
| Std Carton Width MM | : | 137.16 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983446964 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 11,250 |
| Pallet Volume | : | 47.770313 |
| Pallet Weight | : | 1,068.7500 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Sub Brand | : | Pan-Steel® |
| Minimum Bundle Width (mm) | : | 25.4 |
| Material | : | Stainless Steel Type 304 |
| Strap Breaking Strength (N) | : | 2979 |
| Minimum Loop Tensile Strength (lb) | : | 700 |
| Minimum Bundle Width (In.) | : | 1 |
| Minimum Operating Temperature (°C) | : | -60 |
| For Use With | : | BT2HT, BT2MS75 |
| Overall Width (In.) | : | 0.5 |
| Maximum Bundle Diameter (mm) | : | 254 |
| Overall Width (mm) | : | 12.7 |
| Maximum Operating Temperature (°C) | : | 538 |
| Color | : | Natural |
| Overall Thickness (mm) | : | 0.4 |
| Maximum Bundle Diameter (In.) | : | 10 |
| Maximum Installation Temperature (°F) | : | 1000 |
| Strap Breaking Strength (lb) | : | 671 |
| Product Type | : | Strapping |
| Minimum Operating Temperature (°F) | : | -76 |
| Resistance Properties | : | UV-Resistant |
| Environment | : | Indoor and Outdoor |
| Maximum Installation Temperature (°C) | : | 538 |
| Overall Length (In.) | : | 37 |
| Minimum Installation Temperature (°F) | : | -76 |
| Overall Length (mm) | : | 940 |
| Minimum Loop Tensile Strength (N) | : | 2979 |
| Overall Thickness (In.) | : | 0.015 |
| Minimum Installation Temperature (°C) | : | -60 |
| Maximum Operating Temperature (°F) | : | 1000 |
| Application | : | General |
