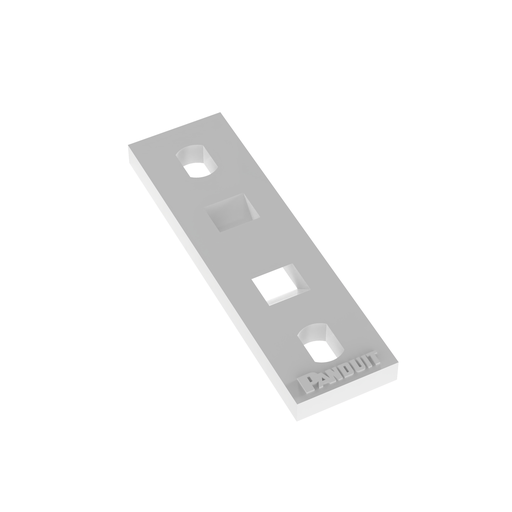

MTP1H-E10-C Tie Plate, Natural, PA 6.6, 2.09x0.62", #10 Screw, PK100
MFG #MTP1H-E10-C
$6.25 / E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
Product Description:
The multiple tie plate in natural color supports one bundle and is used with miniature, intermediate, standard, heavy-standard, light-heavy, and heavy cable ties. It uses #10 (M5) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.
HESCO Part Number
PANMTP1HE10C
UPC
074983584307
Manufacturer Part Number
MTP1H-E10-C
Manufacturer
Panduit
MTP1H-E10-C Tie Plate, Natural, PA 6.6, 2.09x0.62", #10 Screw, PK100
MFG #MTP1H-E10-C
Product Description:
The multiple tie plate in natural color supports one bundle and is used with miniature, intermediate, standard, heavy-standard, light-heavy, and heavy cable ties. It uses #10 (M5) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.
HESCO Part Number
PANMTP1HE10C
UPC
074983584307
Manufacturer Part Number
MTP1H-E10-C
Manufacturer
Panduit
$6.25 / E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant
- No
Packaging Details
| UPC | : | 07498358430 |
| GTIN Package | : | 00074983584307 |
| Standard Package Volume Ft3 | : | 0.0736 |
| Standard Package Weight Pounds | : | 0.8550 |
| Std Package Height In | : | 7 |
| Std Package Height MM | : | 177.8 |
| Std Package Length In | : | 8 |
| Std Package Length MM | : | 203.2 |
| Std Package Width In | : | 1.5 |
| Std Package Width MM | : | 38.1 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983584302 |
| Standard Carton Volume Ft3 | : | 0.7360 |
| Standard Carton Weight Pounds | : | 8.5500 |
| Std Carton Height In | : | 9.6 |
| Std Carton Height MM | : | 243.84 |
| Std Carton Length In | : | 14.4 |
| Std Carton Length MM | : | 365.76 |
| Std Carton Width In | : | 9.2 |
| Std Carton Width MM | : | 233.68 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983584307 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 200.0000 |
| Pallet Quantity | : | 60,000 |
| Pallet Volume | : | 44.160000 |
| Pallet Weight | : | 513.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Width (mm) | : | 15.8 |
| Color | : | Natural |
| Flammability Rating | : | UL94V-2 |
| Minimum Operating Temperature (°C) | : | -60 |
| Maximum Operating Temperature (°C) | : | 85 |
| Mount Method | : | Screw-On |
| Application | : | Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles |
| Overall Height (In.) | : | 0.2 |
| Overall Width (In.) | : | 0.63 |
| Maximum Operating Temperature (°F) | : | 185 |
| Environment | : | Indoor |
| Overall Length (mm) | : | 53.1 |
| Product Type | : | Cable Tie Mount |
| Minimum Loop Tensile Strength (N) | : | 534 |
| Minimum Operating Temperature (°F) | : | -76 |
| Material | : | Nylon 6.6 |
| Mounting Hole Thread Size | : | #10 |
| For Use With | : | Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties |
| Overall Height (mm) | : | 5.2 |
| Overall Length (In.) | : | 2.09 |
| Minimum Loop Tensile Strength (lb) | : | 120 |
Videos 1
- Standards Met: cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant
- No
Packaging Details
UPC : 07498358430 GTIN Package : 00074983584307 Standard Package Volume Ft3 : 0.0736 Standard Package Weight Pounds : 0.8550 Std Package Height In : 7 Std Package Height MM : 177.8 Std Package Length In : 8 Std Package Length MM : 203.2 Std Package Width In : 1.5 Std Package Width MM : 38.1 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983584302 Standard Carton Volume Ft3 : 0.7360 Standard Carton Weight Pounds : 8.5500 Std Carton Height In : 9.6 Std Carton Height MM : 243.84 Std Carton Length In : 14.4 Std Carton Length MM : 365.76 Std Carton Width In : 9.2 Std Carton Width MM : 233.68 Std Ctn Qty : 1000 Min. Order UOM : Piece EAN : 00074983584307 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 200.0000 Pallet Quantity : 60,000 Pallet Volume : 44.160000 Pallet Weight : 513.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Overall Width (mm) : 15.8 Color : Natural Flammability Rating : UL94V-2 Minimum Operating Temperature (°C) : -60 Maximum Operating Temperature (°C) : 85 Mount Method : Screw-On Application : Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles Overall Height (In.) : 0.2 Overall Width (In.) : 0.63 Maximum Operating Temperature (°F) : 185 Environment : Indoor Overall Length (mm) : 53.1 Product Type : Cable Tie Mount Minimum Loop Tensile Strength (N) : 534 Minimum Operating Temperature (°F) : -76 Material : Nylon 6.6 Mounting Hole Thread Size : #10 For Use With : Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties Overall Height (mm) : 5.2 Overall Length (In.) : 2.09 Minimum Loop Tensile Strength (lb) : 120 - Part Drawings
