Panduit

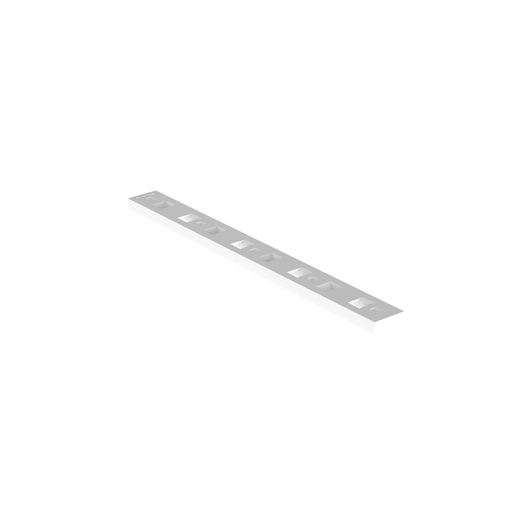

MTP4H-E10-C Tie Plate, Natural, PA 6.6, 6.59x0.63", #10 Screw, PK100
MFG #MTP4H-E10-C
$7.11 / E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
Product Description:
The multiple tie plate in natural color supports four bundles and is used with miniature, intermediate, standard, heavy-standard, light-heavy, and heavy cable ties. It uses #10 (M5) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.
HESCO Part Number
PANMTP4HE10C
UPC
074983584420
Manufacturer Part Number
MTP4H-E10-C
Manufacturer
Panduit
Panduit
MTP4H-E10-C Tie Plate, Natural, PA 6.6, 6.59x0.63", #10 Screw, PK100
MFG #MTP4H-E10-C
Product Description:
The multiple tie plate in natural color supports four bundles and is used with miniature, intermediate, standard, heavy-standard, light-heavy, and heavy cable ties. It uses #10 (M5) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.
HESCO Part Number
PANMTP4HE10C
UPC
074983584420
Manufacturer Part Number
MTP4H-E10-C
Manufacturer
Panduit
$7.11 / E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Height (mm) | : | 5.2 |
| Overall Height (In.) | : | 0.2 |
| Flammability Rating | : | UL94V-2 |
| Overall Length (In.) | : | 6.59 |
| Overall Length (mm) | : | 167.4 |
| Minimum Operating Temperature (°C) | : | -60 |
| Material | : | Nylon 6.6 |
| Maximum Operating Temperature (°F) | : | 185 |
| Minimum Operating Temperature (°F) | : | -76 |
| Product Type | : | Cable Tie Mount |
| Minimum Loop Tensile Strength (N) | : | 534 |
| Maximum Operating Temperature (°C) | : | 85 |
| For Use With | : | Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties |
| Application | : | Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles |
| Mount Method | : | Screw-On |
| Minimum Loop Tensile Strength (lb) | : | 120 |
| Environment | : | Indoor |
| Color | : | Natural |
| Overall Width (mm) | : | 15.8 |
| Overall Width (In.) | : | 0.63 |
| Mounting Hole Thread Size | : | #10 |
Packaging Details | ||
| UPC | : | 07498358442 |
| GTIN Package | : | 00074983584420 |
| Standard Package Volume Ft3 | : | 0.1320 |
| Standard Package Weight Pounds | : | 2.3300 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 14 |
| Std Package Length MM | : | 355.6 |
| Std Package Width In | : | 11 |
| Std Package Width MM | : | 279.4 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983584425 |
| Standard Carton Volume Ft3 | : | 1.3201 |
| Standard Carton Weight Pounds | : | 23.3000 |
| Std Carton Height In | : | 10.91 |
| Std Carton Height MM | : | 277.114 |
| Std Carton Length In | : | 14.46 |
| Std Carton Length MM | : | 367.284 |
| Std Carton Width In | : | 14.46 |
| Std Carton Width MM | : | 367.284 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983584420 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 200.0000 |
| Pallet Quantity | : | 36,000 |
| Pallet Volume | : | 47.524778 |
| Pallet Weight | : | 838.8000 |
| RoHS Compliant | : | Compliant |
Videos 1
- No
- Standards Met: cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant
Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Overall Height (mm) : 5.2 Overall Height (In.) : 0.2 Flammability Rating : UL94V-2 Overall Length (In.) : 6.59 Overall Length (mm) : 167.4 Minimum Operating Temperature (°C) : -60 Material : Nylon 6.6 Maximum Operating Temperature (°F) : 185 Minimum Operating Temperature (°F) : -76 Product Type : Cable Tie Mount Minimum Loop Tensile Strength (N) : 534 Maximum Operating Temperature (°C) : 85 For Use With : Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties Application : Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles Mount Method : Screw-On Minimum Loop Tensile Strength (lb) : 120 Environment : Indoor Color : Natural Overall Width (mm) : 15.8 Overall Width (In.) : 0.63 Mounting Hole Thread Size : #10 Packaging Details
UPC : 07498358442 GTIN Package : 00074983584420 Standard Package Volume Ft3 : 0.1320 Standard Package Weight Pounds : 2.3300 Std Package Height In : 1.5 Std Package Height MM : 38.1 Std Package Length In : 14 Std Package Length MM : 355.6 Std Package Width In : 11 Std Package Width MM : 279.4 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983584425 Standard Carton Volume Ft3 : 1.3201 Standard Carton Weight Pounds : 23.3000 Std Carton Height In : 10.91 Std Carton Height MM : 277.114 Std Carton Length In : 14.46 Std Carton Length MM : 367.284 Std Carton Width In : 14.46 Std Carton Width MM : 367.284 Std Ctn Qty : 1000 Min. Order UOM : Piece EAN : 00074983584420 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 200.0000 Pallet Quantity : 36,000 Pallet Volume : 47.524778 Pallet Weight : 838.8000 RoHS Compliant : Compliant - Part Drawings
