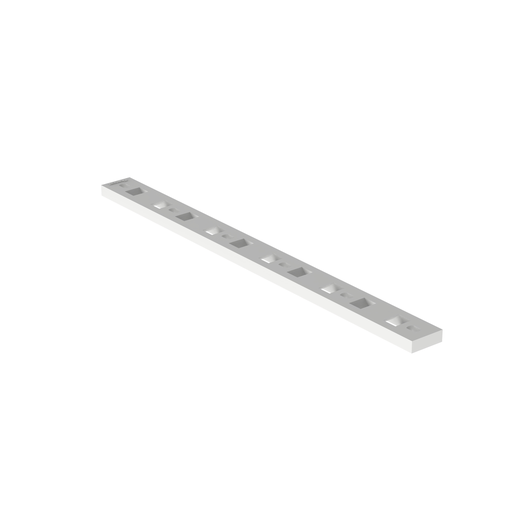

MTP5S-E10-C Cable Tie Mount
MFG #MTP5S-E10-C
$4.75 / E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
Product Description:
The multiple tie plate in natural color supports five bundles and is used with miniature, intermediate, and standard cable ties. It uses #10 (M5) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.
HESCO Part Number
PANMTP5SE10C
UPC
074983584444
Manufacturer Part Number
MTP5S-E10-C
Manufacturer
Panduit
MTP5S-E10-C Cable Tie Mount
MFG #MTP5S-E10-C
Product Description:
The multiple tie plate in natural color supports five bundles and is used with miniature, intermediate, and standard cable ties. It uses #10 (M5) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.
HESCO Part Number
PANMTP5SE10C
UPC
074983584444
Manufacturer Part Number
MTP5S-E10-C
Manufacturer
Panduit
$4.75 / E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant
- No
Packaging Details
| UPC | : | 07498358444 |
| GTIN Package | : | 00074983584444 |
| Standard Package Volume Ft3 | : | 0.0705 |
| Standard Package Weight Pounds | : | 0.8200 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 11 |
| Std Package Length MM | : | 279.4 |
| Std Package Width In | : | 8 |
| Std Package Width MM | : | 203.2 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983584449 |
| Standard Carton Volume Ft3 | : | 0.7051 |
| Standard Carton Weight Pounds | : | 8.2000 |
| Std Carton Height In | : | 9.8 |
| Std Carton Height MM | : | 248.92 |
| Std Carton Length In | : | 14.5 |
| Std Carton Length MM | : | 368.3 |
| Std Carton Width In | : | 9.1 |
| Std Carton Width MM | : | 231.14 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983584444 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 200.0000 |
| Pallet Quantity | : | 60,000 |
| Pallet Volume | : | 42.304688 |
| Pallet Weight | : | 492.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°C) | : | 85 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Flammability Rating | : | UL94V-2 |
| Overall Length (mm) | : | 171.4 |
| Material | : | Nylon 6.6 |
| Environment | : | Indoor |
| Mount Method | : | Screw-On |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Color | : | Natural |
| Application | : | Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles |
| Overall Width (mm) | : | 12.7 |
| Product Type | : | Cable Tie Mount |
| Minimum Operating Temperature (°C) | : | -60 |
| Maximum Operating Temperature (°F) | : | 185 |
| Minimum Operating Temperature (°F) | : | -76 |
| Overall Height (In.) | : | 0.125 |
| Mounting Hole Thread Size | : | #10 |
| Overall Length (In.) | : | 6.75 |
| Overall Width (In.) | : | 0.5 |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Overall Height (mm) | : | 3.2 |
Videos 1
- Standards Met: cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant
- No
Packaging Details
UPC : 07498358444 GTIN Package : 00074983584444 Standard Package Volume Ft3 : 0.0705 Standard Package Weight Pounds : 0.8200 Std Package Height In : 1.5 Std Package Height MM : 38.1 Std Package Length In : 11 Std Package Length MM : 279.4 Std Package Width In : 8 Std Package Width MM : 203.2 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983584449 Standard Carton Volume Ft3 : 0.7051 Standard Carton Weight Pounds : 8.2000 Std Carton Height In : 9.8 Std Carton Height MM : 248.92 Std Carton Length In : 14.5 Std Carton Length MM : 368.3 Std Carton Width In : 9.1 Std Carton Width MM : 231.14 Std Ctn Qty : 1000 Min. Order UOM : Piece EAN : 00074983584444 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 200.0000 Pallet Quantity : 60,000 Pallet Volume : 42.304688 Pallet Weight : 492.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Maximum Operating Temperature (°C) : 85 For Use With : Miniature, Intermediate, Standard Cross-Section Ties Flammability Rating : UL94V-2 Overall Length (mm) : 171.4 Material : Nylon 6.6 Environment : Indoor Mount Method : Screw-On Minimum Loop Tensile Strength (N) : 222 Color : Natural Application : Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles Overall Width (mm) : 12.7 Product Type : Cable Tie Mount Minimum Operating Temperature (°C) : -60 Maximum Operating Temperature (°F) : 185 Minimum Operating Temperature (°F) : -76 Overall Height (In.) : 0.125 Mounting Hole Thread Size : #10 Overall Length (In.) : 6.75 Overall Width (In.) : 0.5 Minimum Loop Tensile Strength (lb) : 50 Overall Height (mm) : 3.2 - Part Drawings
