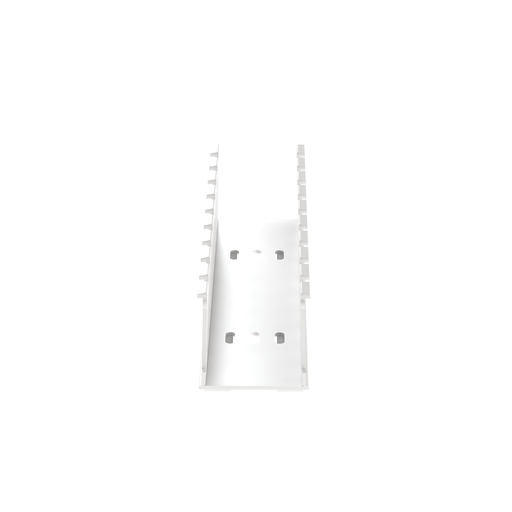

Panduct® NE2X2WH6-A Wide Slot Duct, White, Adh., Hal-Free PPO, 2.08"x2.14", PK6
MFG #NE2X2WH6-A
$19.79 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
Product Description:
The NE2X2WH6-A Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes with adhesive. 2.08" x 2.14" (52.8mm x 54.4mm) and 6' (1.83m) long. Cover sold separately. Color White. 6 pieces per package.
HESCO Part Number
PANNE2X2WH6A
UPC
074983214372
Manufacturer Part Number
NE2X2WH6-A
Manufacturer
Panduit
Panduct® NE2X2WH6-A Wide Slot Duct, White, Adh., Hal-Free PPO, 2.08"x2.14", PK6
MFG #NE2X2WH6-A
Product Description:
The NE2X2WH6-A Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes with adhesive. 2.08" x 2.14" (52.8mm x 54.4mm) and 6' (1.83m) long. Cover sold separately. Color White. 6 pieces per package.
HESCO Part Number
PANNE2X2WH6A
UPC
074983214372
Manufacturer Part Number
NE2X2WH6-A
Manufacturer
Panduit
$19.79 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, EN45545-2 HL1 & HL3 Compliant, BABA Compliant
Packaging Details
| UPC | : | 07498321437 |
| GTIN Package | : | 00074983214372 |
| Standard Package Volume Ft3 | : | 0.1361 |
| Standard Package Weight Pounds | : | 1.1724 |
| Std Package Height In | : | 2 |
| Std Package Height MM | : | 50.8 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 2 |
| Std Package Width MM | : | 50.8 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983214377 |
| Standard Carton Volume Ft3 | : | 2.7213 |
| Standard Carton Weight Pounds | : | 23.4480 |
| Std Carton Height In | : | 4.7 |
| Std Carton Height MM | : | 119.38 |
| Std Carton Length In | : | 72.8 |
| Std Carton Length MM | : | 1849.12 |
| Std Carton Width In | : | 13.5 |
| Std Carton Width MM | : | 342.9 |
| Std Ctn Qty | : | 120 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983214372 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 6.0000 |
| Pallet Quantity | : | 2,520 |
| Pallet Volume | : | 57.146314 |
| Pallet Weight | : | 492.4080 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Application | : | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications |
| Overall Width (mm) | : | 54.4 |
| Mount Method | : | Mounting Holes with Adhesive |
| Measurement System | : | Metric |
| Wiring Duct Style | : | Wide Slot Wiring Duct |
| Includes | : | Base Only |
| Note | : | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation. |
| Slot Width (mm) | : | 7.9 |
| Cover Part Number | : | NC2WH6 |
| Overall Length (m) | : | 1.83 |
| Overall Width (In.) | : | 2.14 |
| Color | : | White |
| Material | : | PPO |
| Flammability Rating | : | UL94V-0 |
| Overall Height (In.) | : | 2.08 |
| Slot Width (In.) | : | 0.31 |
| Product Type | : | Base Wiring Duct |
| Overall Length (ft.) | : | 6 |
| Sub Brand | : | Panduct® |
| Material Properties | : | Halogen-Free |
| Duct Dimensions (In.) | : | 2.14W x 2.08H |
