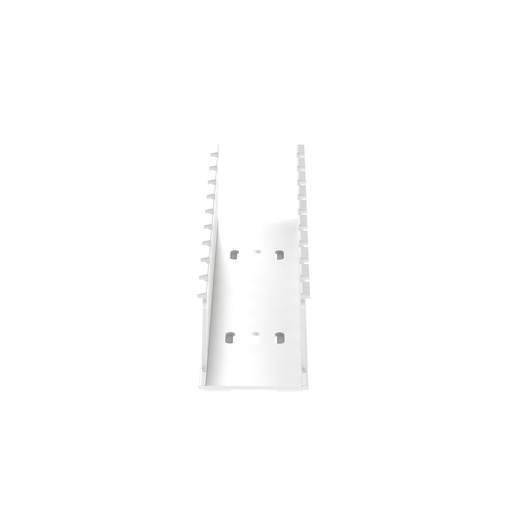

Panduct® NE2X2WH6 Wide Slot Duct, White, Hal-Free PPO, 2.08"x2.14", PK6
MFG #NE2X2WH6
$16.53 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
Product Description:
The NE2X2WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 2.08" x 2.14" (52.8 mm x 54.4 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.
HESCO Part Number
PANNE2X2WH6
UPC
074983214921
Manufacturer Part Number
NE2X2WH6
Manufacturer
Panduit
Panduct® NE2X2WH6 Wide Slot Duct, White, Hal-Free PPO, 2.08"x2.14", PK6
MFG #NE2X2WH6
Product Description:
The NE2X2WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 2.08" x 2.14" (52.8 mm x 54.4 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.
HESCO Part Number
PANNE2X2WH6
UPC
074983214921
Manufacturer Part Number
NE2X2WH6
Manufacturer
Panduit
$16.53 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, EN45545-2 HL1 & HL3 Compliant, BABA Compliant
Packaging Details
| UPC | : | 07498321492 |
| GTIN Package | : | 00074983214921 |
| Standard Package Volume Ft3 | : | 0.1312 |
| Standard Package Weight Pounds | : | 1.3350 |
| Std Package Height In | : | 2 |
| Std Package Height MM | : | 50.8 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 2 |
| Std Package Width MM | : | 50.8 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983214926 |
| Standard Carton Volume Ft3 | : | 2.6236 |
| Standard Carton Weight Pounds | : | 26.7000 |
| Std Carton Height In | : | 4.7 |
| Std Carton Height MM | : | 119.38 |
| Std Carton Length In | : | 72.9 |
| Std Carton Length MM | : | 1851.66 |
| Std Carton Width In | : | 13.3 |
| Std Carton Width MM | : | 337.82 |
| Std Ctn Qty | : | 120 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983214921 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 6.0000 |
| Pallet Quantity | : | 2,520 |
| Pallet Volume | : | 55.094627 |
| Pallet Weight | : | 560.7000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Application | : | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications |
| Overall Width (mm) | : | 54.4 |
| Overall Length (ft.) | : | 6 |
| Material | : | PPO |
| Overall Length (m) | : | 1.83 |
| Slot Width (mm) | : | 7.9 |
| Slot Width (In.) | : | 0.31 |
| Overall Width (In.) | : | 2.14 |
| Color | : | White |
| Measurement System | : | Metric |
| Product Type | : | Base Wiring Duct |
| Wiring Duct Style | : | Wide Slot Wiring Duct |
| Flammability Rating | : | UL94V-0 |
| Sub Brand | : | Panduct® |
| Cover Part Number | : | NC2WH6 |
| Mount Method | : | DIN Standard Mounting Holes |
| Includes | : | Base Only |
| Overall Height (In.) | : | 2.08 |
| Material Properties | : | Halogen-Free |
| Duct Dimensions (In.) | : | 2.14W x 2.08H |
