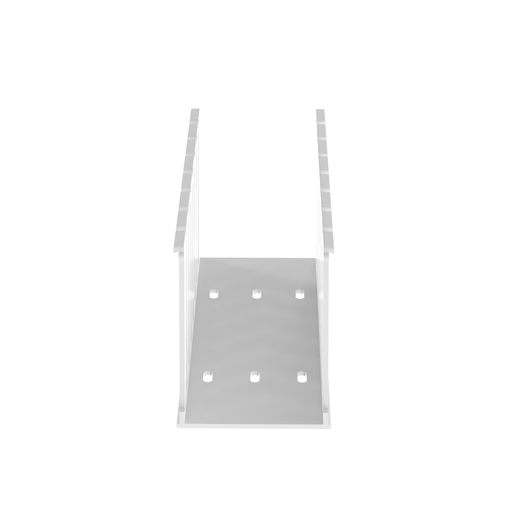

Panduct® NE3X4WH6 Wide Slot Duct, White, Hal-Free PPO, 4.06"x3.14", PK6
MFG #NE3X4WH6
$34.87 / FT
(Must order in increments of 6/FT)
(Must order in increments of 6/FT)
Product Description:
The NE3X4WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 4.06" x 3.14" (103.1 mm x 79.8 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.
HESCO Part Number
PANNE3X4WH6
UPC
074983215065
Manufacturer Part Number
NE3X4WH6
Manufacturer
Panduit
Panduct® NE3X4WH6 Wide Slot Duct, White, Hal-Free PPO, 4.06"x3.14", PK6
MFG #NE3X4WH6
Product Description:
The NE3X4WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 4.06" x 3.14" (103.1 mm x 79.8 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.
HESCO Part Number
PANNE3X4WH6
UPC
074983215065
Manufacturer Part Number
NE3X4WH6
Manufacturer
Panduit
$34.87 / FT
(Must order in increments of 6/FT)
(Must order in increments of 6/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, EN45545-2 HL1 & HL3 Compliant, BABA Compliant
- No
Packaging Details
| UPC | : | 07498321506 |
| GTIN Package | : | 00074983215065 |
| Standard Package Volume Ft3 | : | 0.3531 |
| Standard Package Weight Pounds | : | 2.4552 |
| Std Package Height In | : | 4 |
| Std Package Height MM | : | 101.6 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 3 |
| Std Package Width MM | : | 76.2 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983215060 |
| Standard Carton Volume Ft3 | : | 3.5311 |
| Standard Carton Weight Pounds | : | 24.5520 |
| Std Carton Height In | : | 4.5 |
| Std Carton Height MM | : | 114.3 |
| Std Carton Length In | : | 72.9 |
| Std Carton Length MM | : | 1851.66 |
| Std Carton Width In | : | 18.6 |
| Std Carton Width MM | : | 472.44 |
| Std Ctn Qty | : | 60 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983215065 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 6.0000 |
| Pallet Quantity | : | 840 |
| Pallet Volume | : | 49.435313 |
| Pallet Weight | : | 343.7280 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Width (In.) | : | 3.14 |
| Color | : | White |
| Measurement System | : | Metric |
| Includes | : | (1) Base |
| Mount Method | : | DIN Standard Mounting Holes |
| Overall Length (m) | : | 1.83 |
| Sub Brand | : | Panduct® |
| Overall Height (In.) | : | 4.06 |
| Cover Part Number | : | NC3WH6 |
| Slot Width (In.) | : | 0.31 |
| Overall Width (mm) | : | 79.8 |
| Slot Width (mm) | : | 7.9 |
| Overall Length (ft.) | : | 6 |
| Overall Height (mm) | : | 103.1 |
| Product Type | : | Base Wiring Duct |
| Wiring Duct Style | : | Wide Slot Wiring Duct |
| Material | : | PPO |
| Flammability Rating | : | UL94V-0 |
| Application | : | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications |
| Material Properties | : | Halogen-Free |
| Duct Dimensions (In.) | : | 3.14W x 4.06H |
| Nominal Width (In.) | : | 3 |
| Nominal Height (In.) | : | 4 |
