Panduct® NNC100X50LG2 Base/Cover
MFG #NNC100X50LG2
$102.50 / MR
(Must order in increments of 10/MR)
(Must order in increments of 10/MR)
Product Description:

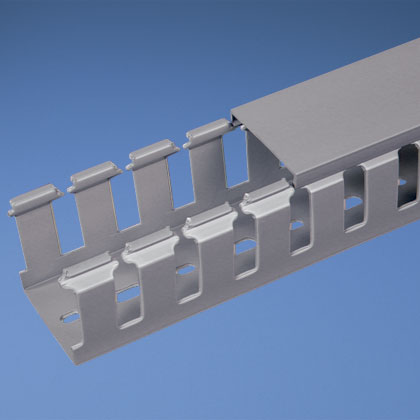

Panduct® type NNC halogen-free metric wiring duct, 100mm W x 47.8mm H x 2M length, halogen-free, light gray.
HESCO Part Number
PANNNC100X50LG2
UPC
074983985593
Manufacturer Part Number
NNC100X50LG2
Manufacturer
Panduit
Panduct® NNC100X50LG2 Base/Cover
MFG #NNC100X50LG2
Product Description:
Panduct® type NNC halogen-free metric wiring duct, 100mm W x 47.8mm H x 2M length, halogen-free, light gray.
HESCO Part Number
PANNNC100X50LG2
UPC
074983985593
Manufacturer Part Number
NNC100X50LG2
Manufacturer
Panduit
$102.50 / MR
(Must order in increments of 10/MR)
(Must order in increments of 10/MR)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, DIN 43659 Compliant, EN45545-2 HL1 & HL3 Compliant, BABA Compliant
Packaging Details
| UPC | : | 07498398559 |
| GTIN Package | : | 00074983985593 |
| Standard Package Volume Ft3 | : | 0.3242 |
| Standard Package Weight Pounds | : | 3.0000 |
| Std Package Height In | : | 1.1 |
| Std Package Height MM | : | 27.94 |
| Std Package Length In | : | 78 |
| Std Package Length MM | : | 1981.2 |
| Std Package Width In | : | 6.6 |
| Std Package Width MM | : | 167.64 |
| Std. Pkg. UOM | : | Meters |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2 |
| GTIN Carton | : | 50074983985598 |
| Standard Carton Volume Ft3 | : | 1.6209 |
| Standard Carton Weight Pounds | : | 15.0000 |
| Std Carton Height In | : | 2.7 |
| Std Carton Height MM | : | 68.58 |
| Std Carton Length In | : | 79.8 |
| Std Carton Length MM | : | 2026.92 |
| Std Carton Width In | : | 13 |
| Std Carton Width MM | : | 330.2 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Meters |
| EAN | : | 00074983985593 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 390 |
| Pallet Volume | : | 63.216563 |
| Pallet Weight | : | 585.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Slot Width (mm) | : | 10 |
| Color | : | Light Gray |
| Overall Width (In.) | : | 3.92 |
| Product Type | : | Wiring Duct Base with Cover |
| Material | : | PPO |
| Measurement System | : | Metric |
| Includes | : | Base, Cover |
| Application | : | NNC Wiring Duct is Used to Route, Protect, and Manage Wires near Sensitive Electronic Equipment and in Environments where Heat Resistance or Public Safety is a Concern |
| Overall Length (m) | : | 2 |
| Slot Width (In.) | : | 0.39 |
| Mount Method | : | DIN Standard Mounting Holes |
| Overall Width (mm) | : | 99.6 |
| Overall Length (ft.) | : | 6.6 |
| Wiring Duct Type | : | NNC |
| Wiring Duct Style | : | Wide Slot Wiring Duct |
| Overall Height (mm) | : | 47.8 |
| Flammability Rating | : | UL94 V-0 |
| Overall Height (In.) | : | 1.88 |
| Cover Part Number | : | NC100WH2 (included) |
| Sub Brand | : | Panduct® |
| Material Properties | : | Halogen-Free |
| Duct Dimensions (In.) | : | 3.92W x 1.88H |
