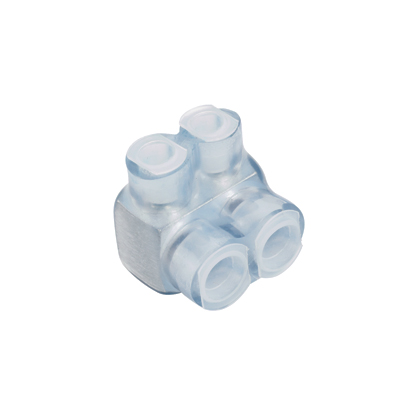

Pan-Lug™ PCSB350-2S-4Y Multi-Tap Mechanical Connectors, Single Sided
MFG #PCSB350-2S-4Y
$65.86 / E
EACH
EACH
Product Description:
Multi-Tap connector, single-sided, clear insulation, 2 ports, 350 kcmil - #10 STR.
HESCO Part Number
PANPCSB3502S4Y
UPC
074983596812
Manufacturer Part Number
PCSB350-2S-4Y
Manufacturer
Panduit
Pan-Lug™ PCSB350-2S-4Y Multi-Tap Mechanical Connectors, Single Sided
MFG #PCSB350-2S-4Y
Product Description:
Multi-Tap connector, single-sided, clear insulation, 2 ports, 350 kcmil - #10 STR.
HESCO Part Number
PANPCSB3502S4Y
UPC
074983596812
Manufacturer Part Number
PCSB350-2S-4Y
Manufacturer
Panduit
$65.86 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Voltage (V) | : | 600 |
| CSA Temperature Rating (°C) | : | 90 |
| Product Type | : | Single-Sided Multi-Tap Connector |
| Sub Brand | : | Pan-Lug™ |
| Insulation Material | : | Clear PVC |
| Number of Ports | : | 2 |
| Base Material | : | Aluminum |
| UL Temperature Rating (°C) | : | 90 |
| Overall Length (In.) | : | 2.17 |
| Overall Length (mm) | : | 58.7 |
| Note | : | For Use with Aluminum or Copper Code Conductors |
| Overall Height (mm) | : | 63.5 |
| Overall Height (In.) | : | 2.5 |
| Overall Width (In.) | : | 2.25 |
| Overall Width (mm) | : | 57.2 |
| Application | : | Aluminum or Copper Code Conductors |
| Screw Type | : | Hex |
| Aluminum Conductor Size | : | 10 AWG-350 kcmil |
| Copper Conductor Size | : | 10 AWG-350 kcmil |
Packaging Details | ||
| UPC | : | 07498359681 |
| GTIN Package | : | 00074983596812 |
| Standard Package Volume Ft3 | : | 0.0697 |
| Standard Package Weight Pounds | : | 0.9760 |
| Std Package Height In | : | 3.45 |
| Std Package Height MM | : | 87.63 |
| Std Package Length In | : | 8.15 |
| Std Package Length MM | : | 207.01 |
| Std Package Width In | : | 4.35 |
| Std Package Width MM | : | 110.49 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 4 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983596812 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Maximum Voltage (V) : 600 CSA Temperature Rating (°C) : 90 Product Type : Single-Sided Multi-Tap Connector Sub Brand : Pan-Lug™ Insulation Material : Clear PVC Number of Ports : 2 Base Material : Aluminum UL Temperature Rating (°C) : 90 Overall Length (In.) : 2.17 Overall Length (mm) : 58.7 Note : For Use with Aluminum or Copper Code Conductors Overall Height (mm) : 63.5 Overall Height (In.) : 2.5 Overall Width (In.) : 2.25 Overall Width (mm) : 57.2 Application : Aluminum or Copper Code Conductors Screw Type : Hex Aluminum Conductor Size : 10 AWG-350 kcmil Copper Conductor Size : 10 AWG-350 kcmil Packaging Details
UPC : 07498359681 GTIN Package : 00074983596812 Standard Package Volume Ft3 : 0.0697 Standard Package Weight Pounds : 0.9760 Std Package Height In : 3.45 Std Package Height MM : 87.63 Std Package Length In : 8.15 Std Package Length MM : 207.01 Std Package Width In : 4.35 Std Package Width MM : 110.49 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 4 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983596812 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Installation Documents
Installation Documents 1
MSDSMSDS 1
Part DrawingsPart Drawings 1
