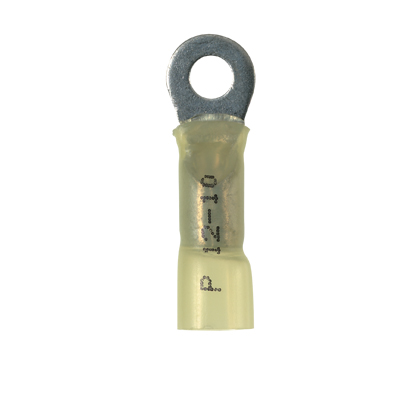

Pan-Term® PH10-10R-E Ring Terminal
MFG #PH10-10R-E
$2.35 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Heat Shrink Ring Terminal 12 – 10 AWG, #10 stud size.
HESCO Part Number
PANPH1010RE
UPC
074983818112
Manufacturer Part Number
PH10-10R-E
Manufacturer
Panduit
Pan-Term® PH10-10R-E Ring Terminal
MFG #PH10-10R-E
Product Description:
Heat Shrink Ring Terminal 12 – 10 AWG, #10 stud size.
HESCO Part Number
PANPH1010RE
UPC
074983818112
Manufacturer Part Number
PH10-10R-E
Manufacturer
Panduit
$2.35 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| For Use With | : | CT-310 |
| Packaging Type | : | Bag |
| Maximum Wire Insulation Diameter (In.) | : | 0.24 |
| Sub Brand | : | Pan-Term® |
| Stud Hole Size (In.) | : | #10 |
| Color Code | : | Yellow |
| Overall Length (mm) | : | 30.5 |
| Tongue Width (mm) | : | 9.4 |
| Minimum Metric Conductor Size (mm²) | : | 4 |
| Wire Strip Length (In.) | : | 5/16 |
| Wire Strip Length (mm) | : | 7.9 |
| Stud Hole Size (mm) | : | 5 |
| Barrel Type | : | Standard |
| Overall Width (mm) | : | 9.4 |
| Product Type | : | Ring Terminal |
| Base Material | : | Copper |
| Maximum Voltage (V) | : | 600 |
| Insulation Material | : | Heat Shrink |
| Barrel Length (mm) | : | 6.4 |
| Stud Size | : | #10 |
| Finish/Coating | : | Tin-Plated |
| Maximum Wire Insulation Diameter (mm) | : | 6.1 |
| Maximum Operating Temperature (°C) | : | 125 |
| Flammability Rating | : | UL94-HB |
| Maximum Operating Temperature (°F) | : | 257 |
| Maximum Metric Conductor Size (mm²) | : | 6 |
| Barrel Length (In.) | : | 0.25 |
| Seam Type | : | Brazed |
| Overall Length (In.) | : | 1.2 |
| Overall Width (In.) | : | 0.37 |
| Wire Size | : | 12-10 AWG |
| Copper Conductor Size | : | 12-10 AWG |
Packaging Details | ||
| UPC | : | 07498381811 |
| GTIN Package | : | 00074983818112 |
| Standard Package Volume Ft3 | : | 0.0067 |
| Standard Package Weight Pounds | : | 0.1460 |
| Std Package Height In | : | 1.2 |
| Std Package Height MM | : | 30.48 |
| Std Package Length In | : | 4.15 |
| Std Package Length MM | : | 105.41 |
| Std Package Width In | : | 2.35 |
| Std Package Width MM | : | 59.69 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 20 |
| GTIN Carton | : | 50074983818117 |
| Standard Carton Volume Ft3 | : | 0.0337 |
| Standard Carton Weight Pounds | : | 0.7300 |
| Std Carton Height In | : | 3.4 |
| Std Carton Height MM | : | 86.36 |
| Std Carton Length In | : | 8.1 |
| Std Carton Length MM | : | 205.74 |
| Std Carton Width In | : | 4.4 |
| Std Carton Width MM | : | 111.76 |
| Std Ctn Qty | : | 100 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983818112 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI For Use With : CT-310 Packaging Type : Bag Maximum Wire Insulation Diameter (In.) : 0.24 Sub Brand : Pan-Term® Stud Hole Size (In.) : #10 Color Code : Yellow Overall Length (mm) : 30.5 Tongue Width (mm) : 9.4 Minimum Metric Conductor Size (mm²) : 4 Wire Strip Length (In.) : 5/16 Wire Strip Length (mm) : 7.9 Stud Hole Size (mm) : 5 Barrel Type : Standard Overall Width (mm) : 9.4 Product Type : Ring Terminal Base Material : Copper Maximum Voltage (V) : 600 Insulation Material : Heat Shrink Barrel Length (mm) : 6.4 Stud Size : #10 Finish/Coating : Tin-Plated Maximum Wire Insulation Diameter (mm) : 6.1 Maximum Operating Temperature (°C) : 125 Flammability Rating : UL94-HB Maximum Operating Temperature (°F) : 257 Maximum Metric Conductor Size (mm²) : 6 Barrel Length (In.) : 0.25 Seam Type : Brazed Overall Length (In.) : 1.2 Overall Width (In.) : 0.37 Wire Size : 12-10 AWG Copper Conductor Size : 12-10 AWG Packaging Details
UPC : 07498381811 GTIN Package : 00074983818112 Standard Package Volume Ft3 : 0.0067 Standard Package Weight Pounds : 0.1460 Std Package Height In : 1.2 Std Package Height MM : 30.48 Std Package Length In : 4.15 Std Package Length MM : 105.41 Std Package Width In : 2.35 Std Package Width MM : 59.69 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 20 GTIN Carton : 50074983818117 Standard Carton Volume Ft3 : 0.0337 Standard Carton Weight Pounds : 0.7300 Std Carton Height In : 3.4 Std Carton Height MM : 86.36 Std Carton Length In : 8.1 Std Carton Length MM : 205.74 Std Carton Width In : 4.4 Std Carton Width MM : 111.76 Std Ctn Qty : 100 Min. Order UOM : Piece EAN : 00074983818112 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Selection Guides
