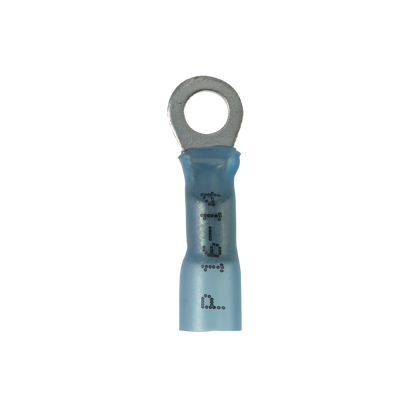

Pan-Term® PH14-14R-Q Ring Terminal
MFG #PH14-14R-Q
$2.18 / E
(Must order in increments of 125/E)
(Must order in increments of 125/E)
Product Description:
Heat Shrink Ring Terminal 16 – 14 AWG, 1/4" stud size.
HESCO Part Number
PANPH1414RQ
UPC
074983818075
Manufacturer Part Number
PH14-14R-Q
Manufacturer
Panduit
Pan-Term® PH14-14R-Q Ring Terminal
MFG #PH14-14R-Q
Product Description:
Heat Shrink Ring Terminal 16 – 14 AWG, 1/4" stud size.
HESCO Part Number
PANPH1414RQ
UPC
074983818075
Manufacturer Part Number
PH14-14R-Q
Manufacturer
Panduit
$2.18 / E
(Must order in increments of 125/E)
(Must order in increments of 125/E)
- Features
- Specifications
- Resources
- Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Barrel Type | : | Standard |
| Maximum Operating Temperature (°F) | : | 257 |
| Product Type | : | Ring Terminal |
| Overall Width (In.) | : | 0.46 |
| Maximum Voltage (V) | : | 600 |
| Insulation Material | : | Heat Shrink |
| Maximum Wire Insulation Diameter (mm) | : | 4.8 |
| Seam Type | : | Brazed |
| Sub Brand | : | Pan-Term® |
| Barrel Length (In.) | : | 0.25 |
| Maximum Wire Insulation Diameter (In.) | : | 0.19 |
| Minimum Metric Conductor Size (mm²) | : | 1.5 |
| Overall Length (In.) | : | 1.24 |
| Tongue Width (mm) | : | 11.7 |
| Base Material | : | Copper |
| Wire Strip Length (In.) | : | 5/16 |
| Stud Size | : | 1/4" |
| Color Code | : | Blue |
| For Use With | : | CT-310 |
| Overall Length (mm) | : | 31.5 |
| Wire Strip Length (mm) | : | 7.9 |
| Packaging Type | : | Bag |
| Stud Hole Size (In.) | : | 1/4 |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Stud Hole Size (mm) | : | 6 |
| Flammability Rating | : | UL94-HB |
| Barrel Length (mm) | : | 6.4 |
| Finish/Coating | : | Tin-Plated |
| Overall Width (mm) | : | 11.7 |
| Maximum Operating Temperature (°C) | : | 125 |
| Wire Size | : | 16-14 AWG |
| Copper Conductor Size | : | 16-14 AWG |
Packaging Details | ||
| UPC | : | 07498381807 |
| GTIN Package | : | 00074983818075 |
| Standard Package Volume Ft3 | : | 0.0139 |
| Standard Package Weight Pounds | : | 0.1300 |
| Std Package Height In | : | .65 |
| Std Package Height MM | : | 16.51 |
| Std Package Length In | : | 6.45 |
| Std Package Length MM | : | 163.83 |
| Std Package Width In | : | 4.05 |
| Std Package Width MM | : | 102.87 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 25 |
| GTIN Carton | : | 50074983818070 |
| Standard Carton Volume Ft3 | : | 0.0697 |
| Standard Carton Weight Pounds | : | 0.6500 |
| Std Carton Height In | : | 3.45 |
| Std Carton Height MM | : | 87.63 |
| Std Carton Length In | : | 8.1 |
| Std Carton Length MM | : | 205.74 |
| Std Carton Width In | : | 4.4 |
| Std Carton Width MM | : | 111.76 |
| Std Ctn Qty | : | 125 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983818075 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 125.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Barrel Type : Standard Maximum Operating Temperature (°F) : 257 Product Type : Ring Terminal Overall Width (In.) : 0.46 Maximum Voltage (V) : 600 Insulation Material : Heat Shrink Maximum Wire Insulation Diameter (mm) : 4.8 Seam Type : Brazed Sub Brand : Pan-Term® Barrel Length (In.) : 0.25 Maximum Wire Insulation Diameter (In.) : 0.19 Minimum Metric Conductor Size (mm²) : 1.5 Overall Length (In.) : 1.24 Tongue Width (mm) : 11.7 Base Material : Copper Wire Strip Length (In.) : 5/16 Stud Size : 1/4" Color Code : Blue For Use With : CT-310 Overall Length (mm) : 31.5 Wire Strip Length (mm) : 7.9 Packaging Type : Bag Stud Hole Size (In.) : 1/4 Maximum Metric Conductor Size (mm²) : 2.5 Stud Hole Size (mm) : 6 Flammability Rating : UL94-HB Barrel Length (mm) : 6.4 Finish/Coating : Tin-Plated Overall Width (mm) : 11.7 Maximum Operating Temperature (°C) : 125 Wire Size : 16-14 AWG Copper Conductor Size : 16-14 AWG Packaging Details
UPC : 07498381807 GTIN Package : 00074983818075 Standard Package Volume Ft3 : 0.0139 Standard Package Weight Pounds : 0.1300 Std Package Height In : .65 Std Package Height MM : 16.51 Std Package Length In : 6.45 Std Package Length MM : 163.83 Std Package Width In : 4.05 Std Package Width MM : 102.87 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 25 GTIN Carton : 50074983818070 Standard Carton Volume Ft3 : 0.0697 Standard Carton Weight Pounds : 0.6500 Std Carton Height In : 3.45 Std Carton Height MM : 87.63 Std Carton Length In : 8.1 Std Carton Length MM : 205.74 Std Carton Width In : 4.4 Std Carton Width MM : 111.76 Std Ctn Qty : 125 Min. Order UOM : Piece EAN : 00074983818075 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 125.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1
