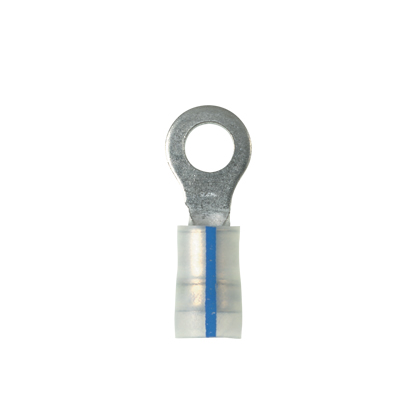

Pan-Term® PK14-10R-C Ring Terminal
MFG #PK14-10R-C
$1.48 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Ring terminal, 18 – 14 AWG, KYNAR insulated, # 10 stud size,bulk package.
HESCO Part Number
PANPK1410RC
UPC
074983828630
Manufacturer Part Number
PK14-10R-C
Manufacturer
Panduit
Pan-Term® PK14-10R-C Ring Terminal
MFG #PK14-10R-C
Product Description:
Ring terminal, 18 – 14 AWG, KYNAR insulated, # 10 stud size,bulk package.
HESCO Part Number
PANPK1410RC
UPC
074983828630
Manufacturer Part Number
PK14-10R-C
Manufacturer
Panduit
$1.48 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164
Packaging Details
| UPC | : | 07498382863 |
| GTIN Package | : | 00074983828630 |
| Standard Package Volume Ft3 | : | 0.0074 |
| Standard Package Weight Pounds | : | 0.2900 |
| Std Package Height In | : | 1.75 |
| Std Package Height MM | : | 44.45 |
| Std Package Length In | : | 3.6 |
| Std Package Length MM | : | 91.44 |
| Std Package Width In | : | 1.8 |
| Std Package Width MM | : | 45.72 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983828635 |
| Standard Carton Volume Ft3 | : | 0.0368 |
| Standard Carton Weight Pounds | : | 1.4500 |
| Std Carton Height In | : | 3.65 |
| Std Carton Height MM | : | 92.71 |
| Std Carton Length In | : | 9.3 |
| Std Carton Length MM | : | 236.22 |
| Std Carton Width In | : | 2.1 |
| Std Carton Width MM | : | 53.34 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983828630 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (In.) | : | 0.87 |
| Wire Strip Length (In.) | : | 7/32 |
| Base Material | : | Copper |
| Flammability Rating | : | UL94V-0 |
| Finish/Coating | : | Tin-Plated |
| Color Code | : | Blue |
| Tongue Thickness (In.) | : | 0.03 |
| Maximum Operating Temperature (°C) | : | 150 |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Wire Strip Length (mm) | : | 5.6 |
| Seam Type | : | Butted with Sleeve |
| Overall Length (mm) | : | 22.1 |
| Maximum Wire Insulation Diameter (In.) | : | 0.162 |
| Maximum Wire Insulation Diameter (mm) | : | 4.1 |
| Insulation Material | : | Kynar |
| Packaging Type | : | Bottle |
| Maximum Operating Temperature (°F) | : | 302 |
| Minimum Metric Conductor Size (mm²) | : | 1 |
| Overall Width (In.) | : | 0.31 |
| For Use With | : | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Stud Size | : | #10 |
| Maximum Voltage (V) | : | 600 |
| Stud Hole Size (mm) | : | 5 |
| Stud Hole Size (In.) | : | #10 |
| Barrel Type | : | Grip Sleeve |
| Product Type | : | Ring Terminal |
| Overall Width (mm) | : | 7.9 |
| Tongue Thickness (mm) | : | 0.8 |
| Tongue Width (mm) | : | 7.9 |
| Sub Brand | : | Pan-Term® |
| Tongue Width (In.) | : | 0.31 |
| Wire Size | : | 18-14 AWG |
| Copper Conductor Size | : | 18-14 AWG |
- Standards Met: UL Listed 587H E52164
Packaging Details
UPC : 07498382863 GTIN Package : 00074983828630 Standard Package Volume Ft3 : 0.0074 Standard Package Weight Pounds : 0.2900 Std Package Height In : 1.75 Std Package Height MM : 44.45 Std Package Length In : 3.6 Std Package Length MM : 91.44 Std Package Width In : 1.8 Std Package Width MM : 45.72 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983828635 Standard Carton Volume Ft3 : 0.0368 Standard Carton Weight Pounds : 1.4500 Std Carton Height In : 3.65 Std Carton Height MM : 92.71 Std Carton Length In : 9.3 Std Carton Length MM : 236.22 Std Carton Width In : 2.1 Std Carton Width MM : 53.34 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983828630 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Overall Length (In.) : 0.87 Wire Strip Length (In.) : 7/32 Base Material : Copper Flammability Rating : UL94V-0 Finish/Coating : Tin-Plated Color Code : Blue Tongue Thickness (In.) : 0.03 Maximum Operating Temperature (°C) : 150 Maximum Metric Conductor Size (mm²) : 2.5 Wire Strip Length (mm) : 5.6 Seam Type : Butted with Sleeve Overall Length (mm) : 22.1 Maximum Wire Insulation Diameter (In.) : 0.162 Maximum Wire Insulation Diameter (mm) : 4.1 Insulation Material : Kynar Packaging Type : Bottle Maximum Operating Temperature (°F) : 302 Minimum Metric Conductor Size (mm²) : 1 Overall Width (In.) : 0.31 For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Stud Size : #10 Maximum Voltage (V) : 600 Stud Hole Size (mm) : 5 Stud Hole Size (In.) : #10 Barrel Type : Grip Sleeve Product Type : Ring Terminal Overall Width (mm) : 7.9 Tongue Thickness (mm) : 0.8 Tongue Width (mm) : 7.9 Sub Brand : Pan-Term® Tongue Width (In.) : 0.31 Wire Size : 18-14 AWG Copper Conductor Size : 18-14 AWG - Selection Guides
