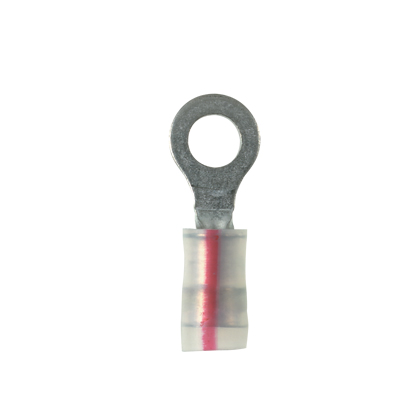

Pan-Term® PK18-6R-C Ring Terminal
MFG #PK18-6R-C
$1.48 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Ring terminal, 22 – 18 AWG, KYNAR insulated, #6 stud size, bulk package.
HESCO Part Number
PANPK186RC
UPC
074983828470
Manufacturer Part Number
PK18-6R-C
Manufacturer
Panduit
Pan-Term® PK18-6R-C Ring Terminal
MFG #PK18-6R-C
Product Description:
Ring terminal, 22 – 18 AWG, KYNAR insulated, #6 stud size, bulk package.
HESCO Part Number
PANPK186RC
UPC
074983828470
Manufacturer Part Number
PK18-6R-C
Manufacturer
Panduit
$1.48 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164
Packaging Details
| UPC | : | 07498382847 |
| GTIN Package | : | 00074983828470 |
| Standard Package Volume Ft3 | : | 0.0070 |
| Standard Package Weight Pounds | : | 0.2200 |
| Std Package Height In | : | 1.75 |
| Std Package Height MM | : | 44.45 |
| Std Package Length In | : | 3.6 |
| Std Package Length MM | : | 91.44 |
| Std Package Width In | : | 1.8 |
| Std Package Width MM | : | 45.72 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983828475 |
| Standard Carton Volume Ft3 | : | 0.0351 |
| Standard Carton Weight Pounds | : | 1.1000 |
| Std Carton Height In | : | 3.6 |
| Std Carton Height MM | : | 91.44 |
| Std Carton Length In | : | 9.6 |
| Std Carton Length MM | : | 243.84 |
| Std Carton Width In | : | 2.2 |
| Std Carton Width MM | : | 55.88 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983828470 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Base Material | : | Copper |
| Maximum Operating Temperature (°C) | : | 150 |
| Insulation Material | : | Kynar |
| Maximum Metric Conductor Size (mm²) | : | 1.5 |
| Flammability Rating | : | UL94V-0 |
| Maximum Voltage (V) | : | 600 |
| Stud Hole Size (In.) | : | #6 |
| Maximum Wire Insulation Diameter (In.) | : | 0.145 |
| Color Code | : | Red |
| Overall Width (In.) | : | 0.25 |
| Tongue Width (In.) | : | 0.25 |
| Tongue Width (mm) | : | 6.4 |
| Wire Strip Length (mm) | : | 5.6 |
| Stud Hole Size (mm) | : | 3.5 |
| Maximum Operating Temperature (°F) | : | 302 |
| Overall Length (In.) | : | 0.8 |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Stud Size | : | #6 |
| Product Type | : | Ring Terminal |
| Maximum Wire Insulation Diameter (mm) | : | 3.7 |
| Wire Strip Length (In.) | : | 7/32 |
| Tongue Thickness (In.) | : | 0.03 |
| Overall Length (mm) | : | 20.3 |
| Finish/Coating | : | Tin-Plated |
| For Use With | : | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Sub Brand | : | Pan-Term® |
| Seam Type | : | Butted with Sleeve |
| Packaging Type | : | Bottle |
| Tongue Thickness (mm) | : | 0.8 |
| Barrel Type | : | Grip Sleeve |
| Overall Width (mm) | : | 6.4 |
| Copper Conductor Size | : | 22-16 AWG |
| Wire Size | : | 22-16 AWG |
- Standards Met: UL Listed 587H E52164
Packaging Details
UPC : 07498382847 GTIN Package : 00074983828470 Standard Package Volume Ft3 : 0.0070 Standard Package Weight Pounds : 0.2200 Std Package Height In : 1.75 Std Package Height MM : 44.45 Std Package Length In : 3.6 Std Package Length MM : 91.44 Std Package Width In : 1.8 Std Package Width MM : 45.72 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983828475 Standard Carton Volume Ft3 : 0.0351 Standard Carton Weight Pounds : 1.1000 Std Carton Height In : 3.6 Std Carton Height MM : 91.44 Std Carton Length In : 9.6 Std Carton Length MM : 243.84 Std Carton Width In : 2.2 Std Carton Width MM : 55.88 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983828470 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Base Material : Copper Maximum Operating Temperature (°C) : 150 Insulation Material : Kynar Maximum Metric Conductor Size (mm²) : 1.5 Flammability Rating : UL94V-0 Maximum Voltage (V) : 600 Stud Hole Size (In.) : #6 Maximum Wire Insulation Diameter (In.) : 0.145 Color Code : Red Overall Width (In.) : 0.25 Tongue Width (In.) : 0.25 Tongue Width (mm) : 6.4 Wire Strip Length (mm) : 5.6 Stud Hole Size (mm) : 3.5 Maximum Operating Temperature (°F) : 302 Overall Length (In.) : 0.8 Minimum Metric Conductor Size (mm²) : 0.5 Stud Size : #6 Product Type : Ring Terminal Maximum Wire Insulation Diameter (mm) : 3.7 Wire Strip Length (In.) : 7/32 Tongue Thickness (In.) : 0.03 Overall Length (mm) : 20.3 Finish/Coating : Tin-Plated For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Sub Brand : Pan-Term® Seam Type : Butted with Sleeve Packaging Type : Bottle Tongue Thickness (mm) : 0.8 Barrel Type : Grip Sleeve Overall Width (mm) : 6.4 Copper Conductor Size : 22-16 AWG Wire Size : 22-16 AWG - Selection Guides
Selection Guides 1
Part DrawingsPart Drawings 1
