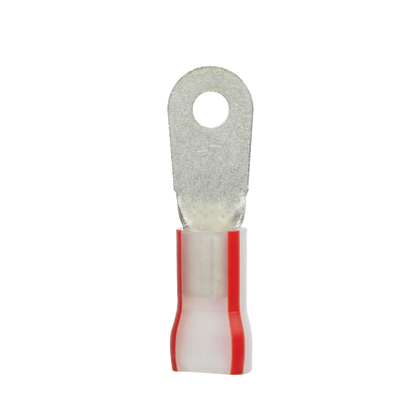

Pan-Term® PK8-10R-T Ring Terminal
MFG #PK8-10R-T
$2.68 / E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
Product Description:
Ring terminal, #8 AWG, KYNAR insulated, #10 stud size.
HESCO Part Number
PANPK810RT
UPC
074983198184
Manufacturer Part Number
PK8-10R-T
Manufacturer
Panduit
Pan-Term® PK8-10R-T Ring Terminal
MFG #PK8-10R-T
Product Description:
Ring terminal, #8 AWG, KYNAR insulated, #10 stud size.
HESCO Part Number
PANPK810RT
UPC
074983198184
Manufacturer Part Number
PK8-10R-T
Manufacturer
Panduit
$2.68 / E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Flammability Rating | : | UL94V-0 |
| For Use With | : | CT-2600 (CD-2600-PV8) |
| Maximum Voltage (V) | : | 600 |
| Tongue Thickness (In.) | : | 0.04 |
| Insulation Material | : | Kynar |
| Wire Strip Length (In.) | : | 3/8 |
| Overall Length (In.) | : | 1.52 |
| Finish/Coating | : | Tin-Plated |
| Stud Hole Size (In.) | : | #10 |
| Base Material | : | Copper |
| Maximum Operating Temperature (°F) | : | 302 |
| Tongue Thickness (mm) | : | 1 |
| Product Type | : | Ring Terminal |
| Maximum Wire Insulation Diameter (mm) | : | 8.3 |
| Tongue Width (In.) | : | 0.47 |
| Sub Brand | : | Pan-Term® |
| Stud Size | : | #10 |
| Barrel Type | : | Standard |
| Maximum Metric Conductor Size (mm²) | : | 10 |
| Minimum Metric Conductor Size (mm²) | : | 10 |
| Packaging Type | : | Box |
| Seam Type | : | Brazed |
| Overall Width (In.) | : | 0.47 |
| Maximum Wire Insulation Diameter (In.) | : | 0.326 |
| Overall Width (mm) | : | 11.9 |
| Color Code | : | Red |
| Wire Strip Length (mm) | : | 9.5 |
| Tongue Width (mm) | : | 11.9 |
| Overall Length (mm) | : | 38.6 |
| Maximum Operating Temperature (°C) | : | 150 |
| Stud Hole Size (mm) | : | 5 |
| Copper Conductor Size | : | 8 AWG |
| Wire Size | : | 8 AWG |
Packaging Details | ||
| UPC | : | 07498319818 |
| GTIN Package | : | 00074983198184 |
| Standard Package Volume Ft3 | : | 0.0461 |
| Standard Package Weight Pounds | : | 1.9500 |
| Std Package Height In | : | 3 |
| Std Package Height MM | : | 76.2 |
| Std Package Length In | : | 6 |
| Std Package Length MM | : | 152.4 |
| Std Package Width In | : | 3 |
| Std Package Width MM | : | 76.2 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 200 |
| GTIN Carton | : | 50074983198189 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983198184 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 200.0000 |
| Pallet Quantity | : | 172,800 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 1,684.8000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Listed 587H E52164
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Flammability Rating : UL94V-0 For Use With : CT-2600 (CD-2600-PV8) Maximum Voltage (V) : 600 Tongue Thickness (In.) : 0.04 Insulation Material : Kynar Wire Strip Length (In.) : 3/8 Overall Length (In.) : 1.52 Finish/Coating : Tin-Plated Stud Hole Size (In.) : #10 Base Material : Copper Maximum Operating Temperature (°F) : 302 Tongue Thickness (mm) : 1 Product Type : Ring Terminal Maximum Wire Insulation Diameter (mm) : 8.3 Tongue Width (In.) : 0.47 Sub Brand : Pan-Term® Stud Size : #10 Barrel Type : Standard Maximum Metric Conductor Size (mm²) : 10 Minimum Metric Conductor Size (mm²) : 10 Packaging Type : Box Seam Type : Brazed Overall Width (In.) : 0.47 Maximum Wire Insulation Diameter (In.) : 0.326 Overall Width (mm) : 11.9 Color Code : Red Wire Strip Length (mm) : 9.5 Tongue Width (mm) : 11.9 Overall Length (mm) : 38.6 Maximum Operating Temperature (°C) : 150 Stud Hole Size (mm) : 5 Copper Conductor Size : 8 AWG Wire Size : 8 AWG Packaging Details
UPC : 07498319818 GTIN Package : 00074983198184 Standard Package Volume Ft3 : 0.0461 Standard Package Weight Pounds : 1.9500 Std Package Height In : 3 Std Package Height MM : 76.2 Std Package Length In : 6 Std Package Length MM : 152.4 Std Package Width In : 3 Std Package Width MM : 76.2 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 200 GTIN Carton : 50074983198189 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983198184 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 200.0000 Pallet Quantity : 172,800 Pallet Volume : 0.000000 Pallet Weight : 1,684.8000 RoHS Compliant : Compliant - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1
