PLM1M-M3 Premium Cable Tie
MFG #PLM1M-M3
$0.30 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

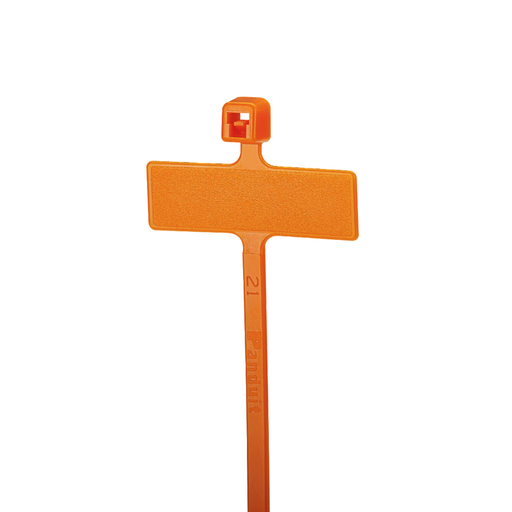

Pan-Ty® marker tie, wrap, miniature cross section, 3.9 (99mm) length, .26 x .95 (6.6 x 24.1mm) marker write-on area, nylon 6.6, orange.
HESCO Part Number
PANPLM1MM3
UPC
074983557615
Manufacturer Part Number
PLM1M-M3
Manufacturer
Panduit
PLM1M-M3 Premium Cable Tie
MFG #PLM1M-M3
Product Description:
Pan-Ty® marker tie, wrap, miniature cross section, 3.9 (99mm) length, .26 x .95 (6.6 x 24.1mm) marker write-on area, nylon 6.6, orange.
HESCO Part Number
PANPLM1MM3
UPC
074983557615
Manufacturer Part Number
PLM1M-M3
Manufacturer
Panduit
$0.30 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant,RoHS Compliant
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Bundle Diameter (mm) | : | 4.6 |
| Body Width (In.) | : | 0.098 |
| Overall Length (In.) | : | 3.9 |
| Application | : | General |
| Minimum Loop Tensile Strength (N) | : | 80 |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Operating Temperature (°F) | : | -70 |
| Maximum Operating Temperature (°F) | : | 185 |
| Maximum Bundle Diameter (mm) | : | 19 |
| Write-On Area Width (In.) | : | 0.95 |
| Environment | : | Indoor |
| Write-On Area Height (In.) | : | 0.26 |
| Material | : | Nylon 6.6 |
| Marker Type | : | Wrap |
| Military Cross Reference Number | : | MS3368-5-3E |
| Overall Length (mm) | : | 99 |
| Product Type | : | Premium Cable Tie |
| Minimum Loop Tensile Strength (lb) | : | 18 |
| Body Width (mm) | : | 2.5 |
| Color | : | Orange |
| For Use With | : | Bundles |
| Maximum Bundle Diameter (In.) | : | 0.75 |
| Body Thickness (In.) | : | 0.035 |
| Body Thickness (mm) | : | 0.9 |
| Minimum Bundle Diameter (In.) | : | 0.18 |
| Write-On Area (In.) | : | 0.95W x 0.26H |
Packaging Details | ||
| UPC | : | 07498355761 |
| GTIN Package | : | 00074983557615 |
| Standard Package Volume Ft3 | : | 0.1253 |
| Standard Package Weight Pounds | : | 1.1000 |
| Std Package Height In | : | 3.6 |
| Std Package Height MM | : | 91.44 |
| Std Package Length In | : | 13.9 |
| Std Package Length MM | : | 353.06 |
| Std Package Width In | : | 6.4 |
| Std Package Width MM | : | 162.56 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983557610 |
| Standard Carton Volume Ft3 | : | 3.1332 |
| Standard Carton Weight Pounds | : | 27.5000 |
| Std Carton Height In | : | 16.91 |
| Std Carton Height MM | : | 429.514 |
| Std Carton Length In | : | 21.96 |
| Std Carton Length MM | : | 557.784 |
| Std Carton Width In | : | 14.58 |
| Std Carton Width MM | : | 370.332 |
| Std Ctn Qty | : | 25000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983557615 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 300,000 |
| Pallet Volume | : | 37.598540 |
| Pallet Weight | : | 330.0000 |
| RoHS Compliant | : | Compliant |
