Pan-Ty® PLP1S-M Locking Push Mount Tie, PA6.6, 5.3"L, 50lb, PK1000
MFG #PLP1S-M
$0.29 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:

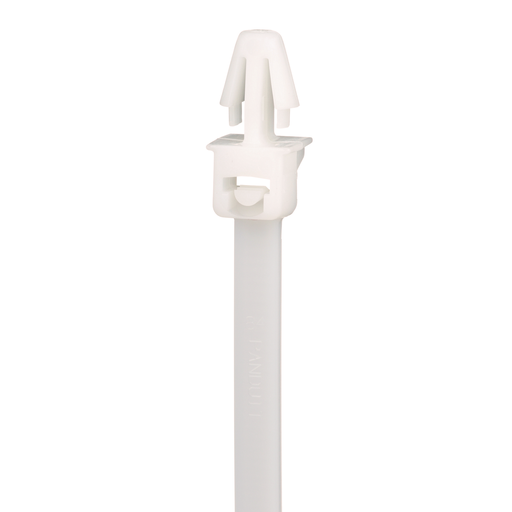

Panduit PLP1S-M Locking Push Mount Ties have an easy-to-use all-in-one wingless design to attach bundles to surfaces in confined spaces. The anchor is pressed into a pre-formed hole and locks in place. Standard cross section, 5.3” (135mm) length. Made of Nylon 6.6, they are natural in color and come in packages of 1000.
HESCO Part Number
PANPLP1SM
UPC
074983555031
Manufacturer Part Number
PLP1S-M
Manufacturer
Panduit
Pan-Ty® PLP1S-M Locking Push Mount Tie, PA6.6, 5.3"L, 50lb, PK1000
MFG #PLP1S-M
Product Description:
Panduit PLP1S-M Locking Push Mount Ties have an easy-to-use all-in-one wingless design to attach bundles to surfaces in confined spaces. The anchor is pressed into a pre-formed hole and locks in place. Standard cross section, 5.3” (135mm) length. Made of Nylon 6.6, they are natural in color and come in packages of 1000.
HESCO Part Number
PANPLP1SM
UPC
074983555031
Manufacturer Part Number
PLP1S-M
Manufacturer
Panduit
$0.29 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant
- No
Packaging Details
| UPC | : | 07498355503 |
| GTIN Package | : | 00074983555031 |
| Standard Package Volume Ft3 | : | 0.2572 |
| Standard Package Weight Pounds | : | 3.0000 |
| Std Package Height In | : | 4.3 |
| Std Package Height MM | : | 109.22 |
| Std Package Length In | : | 14.85 |
| Std Package Length MM | : | 377.19 |
| Std Package Width In | : | 12.2 |
| Std Package Width MM | : | 309.88 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983555036 |
| Standard Carton Volume Ft3 | : | 2.5715 |
| Standard Carton Weight Pounds | : | 30.0000 |
| Std Carton Height In | : | 18.4 |
| Std Carton Height MM | : | 467.36 |
| Std Carton Length In | : | 23 |
| Std Carton Length MM | : | 584.2 |
| Std Carton Width In | : | 10.5 |
| Std Carton Width MM | : | 266.7 |
| Std Ctn Qty | : | 10000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983555031 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 160,000 |
| Pallet Volume | : | 41.144444 |
| Pallet Weight | : | 480.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Costa Rica, Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Body Width (mm) | : | 4.8 |
| Minimum Operating Temperature (°F) | : | -76 |
| Maximum Bundle Diameter (In.) | : | 1 |
| Body Width (In.) | : | 0.19 |
| Maximum Bundle Diameter (mm) | : | 25.4 |
| Product Type | : | Premium Cable Tie |
| Minimum Installation Temperature (°F) | : | -4 |
| Minimum Operating Temperature (°C) | : | -60 |
| Environment | : | Indoor |
| Body Thickness (mm) | : | 1.3 |
| For Use With | : | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Overall Length (mm) | : | 135 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Material | : | Nylon 6.6 |
| Minimum Installation Temperature (°C) | : | -20 |
| Color | : | Natural |
| Overall Length (In.) | : | 5.3 |
| Maximum Operating Temperature (°F) | : | 185 |
| Body Thickness (In.) | : | 0.05 |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Material Description | : | Nylon 6.6 |
Videos 1
- Standards Met: UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant
- No
Packaging Details
UPC : 07498355503 GTIN Package : 00074983555031 Standard Package Volume Ft3 : 0.2572 Standard Package Weight Pounds : 3.0000 Std Package Height In : 4.3 Std Package Height MM : 109.22 Std Package Length In : 14.85 Std Package Length MM : 377.19 Std Package Width In : 12.2 Std Package Width MM : 309.88 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983555036 Standard Carton Volume Ft3 : 2.5715 Standard Carton Weight Pounds : 30.0000 Std Carton Height In : 18.4 Std Carton Height MM : 467.36 Std Carton Length In : 23 Std Carton Length MM : 584.2 Std Carton Width In : 10.5 Std Carton Width MM : 266.7 Std Ctn Qty : 10000 Min. Order UOM : Piece EAN : 00074983555031 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 160,000 Pallet Volume : 41.144444 Pallet Weight : 480.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Costa Rica, Malaysia Any Reason Not to Sell : N Product Segment : IEI Body Width (mm) : 4.8 Minimum Operating Temperature (°F) : -76 Maximum Bundle Diameter (In.) : 1 Body Width (In.) : 0.19 Maximum Bundle Diameter (mm) : 25.4 Product Type : Premium Cable Tie Minimum Installation Temperature (°F) : -4 Minimum Operating Temperature (°C) : -60 Environment : Indoor Body Thickness (mm) : 1.3 For Use With : GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 Overall Length (mm) : 135 Minimum Bundle Diameter (In.) : 0.06 Minimum Bundle Diameter (mm) : 1.5 Maximum Operating Temperature (°C) : 85 Minimum Loop Tensile Strength (N) : 222 Material : Nylon 6.6 Minimum Installation Temperature (°C) : -20 Color : Natural Overall Length (In.) : 5.3 Maximum Operating Temperature (°F) : 185 Body Thickness (In.) : 0.05 Minimum Loop Tensile Strength (lb) : 50 Material Description : Nylon 6.6 - Part Drawings
Part Drawings 1
Part Drawings 2
Selection GuidesSelection Guides 1 - Videos 1
