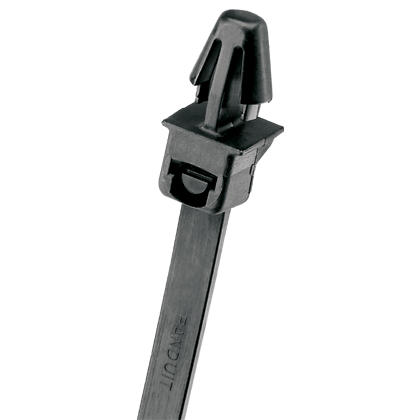

PLP1S-M30 Premium Cable Tie
MFG #PLP1S-M30
$0.37 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
Pan-Ty® Locking Push Mount Ties use an easy-to-use all-in-one wingless design to attach bundles to surfaces in confined spaces. Plus, with heat stabilized Nylon 6.6 material, it's ideal for temperatures up to 239 degrees. Standard cross section, 5.3in, Tensile Strength: 222, Black, 1000pc.
HESCO Part Number
PANPLP1SM30
UPC
074983558971
Manufacturer Part Number
PLP1S-M30
Manufacturer
Panduit
PLP1S-M30 Premium Cable Tie
MFG #PLP1S-M30
Product Description:
Pan-Ty® Locking Push Mount Ties use an easy-to-use all-in-one wingless design to attach bundles to surfaces in confined spaces. Plus, with heat stabilized Nylon 6.6 material, it's ideal for temperatures up to 239 degrees. Standard cross section, 5.3in, Tensile Strength: 222, Black, 1000pc.
HESCO Part Number
PANPLP1SM30
UPC
074983558971
Manufacturer Part Number
PLP1S-M30
Manufacturer
Panduit
$0.37 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant
- No
Specifications
| Country of Origin | : | Costa Rica, Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°F) | : | 185 |
| Maximum Operating Temperature (°C) | : | 85 |
| Environment | : | Indoor |
| Maximum Bundle Diameter (mm) | : | 25.4 |
| Overall Length (mm) | : | 135 |
| Material | : | Nylon 6.6 |
| Color | : | Black |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Overall Length (In.) | : | 5.3 |
| Body Width (In.) | : | 0.19 |
| Application | : | High Temperature |
| Product Type | : | Premium Cable Tie |
| Body Width (mm) | : | 4.8 |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Minimum Operating Temperature (°C) | : | -60 |
| Body Thickness (mm) | : | 1.3 |
| Resistance Properties | : | Heat-Resistant |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Body Thickness (In.) | : | 0.05 |
| For Use With | : | GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2 |
| Maximum Bundle Diameter (In.) | : | 1 |
| Material Description | : | Nylon 6.6 (Heat-Resistant) |
Packaging Details | ||
| UPC | : | 07498355897 |
| GTIN Package | : | 00074983558971 |
| Standard Package Volume Ft3 | : | 0.2572 |
| Standard Package Weight Pounds | : | 2.8000 |
| Std Package Height In | : | .1 |
| Std Package Height MM | : | 2.54 |
| Std Package Length In | : | 15 |
| Std Package Length MM | : | 381 |
| Std Package Width In | : | 13.5 |
| Std Package Width MM | : | 342.9 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983558976 |
| Standard Carton Volume Ft3 | : | 2.5715 |
| Standard Carton Weight Pounds | : | 28.0000 |
| Std Carton Height In | : | 18.4 |
| Std Carton Height MM | : | 467.36 |
| Std Carton Length In | : | 23 |
| Std Carton Length MM | : | 584.2 |
| Std Carton Width In | : | 10.5 |
| Std Carton Width MM | : | 266.7 |
| Std Ctn Qty | : | 10000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983558971 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 160,000 |
| Pallet Volume | : | 41.144444 |
| Pallet Weight | : | 448.0000 |
| RoHS Compliant | : | Compliant |
Videos 1
- Standards Met: UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant
- No
Specifications
Country of Origin : Costa Rica, Malaysia Any Reason Not to Sell : N Product Segment : IEI Maximum Operating Temperature (°F) : 185 Maximum Operating Temperature (°C) : 85 Environment : Indoor Maximum Bundle Diameter (mm) : 25.4 Overall Length (mm) : 135 Material : Nylon 6.6 Color : Black Minimum Bundle Diameter (In.) : 0.06 Minimum Bundle Diameter (mm) : 1.5 Overall Length (In.) : 5.3 Body Width (In.) : 0.19 Application : High Temperature Product Type : Premium Cable Tie Body Width (mm) : 4.8 Minimum Operating Temperature (°F) : -76 Minimum Loop Tensile Strength (N) : 222 Minimum Operating Temperature (°C) : -60 Body Thickness (mm) : 1.3 Resistance Properties : Heat-Resistant Minimum Loop Tensile Strength (lb) : 50 Body Thickness (In.) : 0.05 For Use With : GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2 Maximum Bundle Diameter (In.) : 1 Material Description : Nylon 6.6 (Heat-Resistant) Packaging Details
UPC : 07498355897 GTIN Package : 00074983558971 Standard Package Volume Ft3 : 0.2572 Standard Package Weight Pounds : 2.8000 Std Package Height In : .1 Std Package Height MM : 2.54 Std Package Length In : 15 Std Package Length MM : 381 Std Package Width In : 13.5 Std Package Width MM : 342.9 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983558976 Standard Carton Volume Ft3 : 2.5715 Standard Carton Weight Pounds : 28.0000 Std Carton Height In : 18.4 Std Carton Height MM : 467.36 Std Carton Length In : 23 Std Carton Length MM : 584.2 Std Carton Width In : 10.5 Std Carton Width MM : 266.7 Std Ctn Qty : 10000 Min. Order UOM : Piece EAN : 00074983558971 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 160,000 Pallet Volume : 41.144444 Pallet Weight : 448.0000 RoHS Compliant : Compliant - Part Drawings
