Panduit

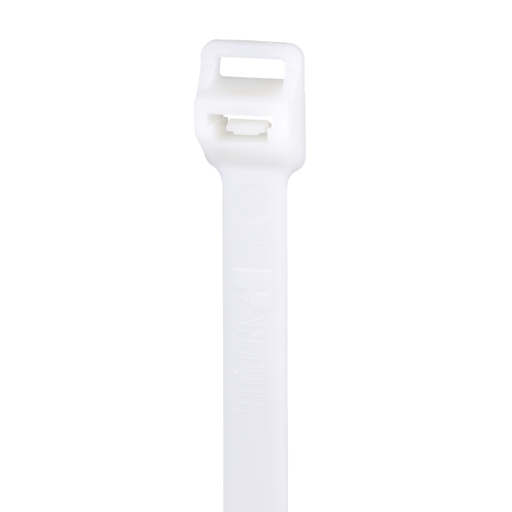

Pan-Ty® PLT12EH-C Cable Tie, PA6.6, 40.1"L, 250lb, PK100
MFG #PLT12EH-C
$3.74 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Panduit PLT12EH-C Lashing Cable Ties are ideal for heavy duty applications. Extra-Heavy cross section, 40.1” (1019mm) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
HESCO Part Number
PANPLT12EHC
UPC
074983542734
Manufacturer Part Number
PLT12EH-C
Manufacturer
Panduit
Panduit
Pan-Ty® PLT12EH-C Cable Tie, PA6.6, 40.1"L, 250lb, PK100
MFG #PLT12EH-C
Product Description:
Panduit PLT12EH-C Lashing Cable Ties are ideal for heavy duty applications. Extra-Heavy cross section, 40.1” (1019mm) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
HESCO Part Number
PANPLT12EHC
UPC
074983542734
Manufacturer Part Number
PLT12EH-C
Manufacturer
Panduit
$3.74 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL 62275 Compliant (Type 2, 21), CSA Certified, RoHS Compliant
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Operating Temperature (°F) | : | -76 |
| Body Thickness (mm) | : | 2.2 |
| Overall Length (In.) | : | 40.1 |
| Body Thickness (In.) | : | 0.085 |
| Body Width (In.) | : | 0.5 |
| Body Width (mm) | : | 12.7 |
| Minimum Installation Temperature (°C) | : | -20 |
| For Use With | : | GS4EH-E, ST3EH |
| Overall Length (mm) | : | 1019 |
| Color | : | Natural |
| Maximum Bundle Diameter (mm) | : | 304.8 |
| Maximum Bundle Diameter (In.) | : | 12 |
| Maximum Operating Temperature (°C) | : | 85 |
| Maximum Operating Temperature (°F) | : | 185 |
| Product Type | : | Premium Cable Tie |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Installation Temperature (°F) | : | -4 |
| Material | : | Nylon 6.6 |
| Environment | : | Indoor |
| Minimum Loop Tensile Strength (lb) | : | 250 |
| Minimum Bundle Diameter (In.) | : | 2.5 |
| Minimum Bundle Diameter (mm) | : | 63.5 |
| Minimum Loop Tensile Strength (N) | : | 1112 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498354273 |
| GTIN Package | : | 00074983542734 |
| Standard Package Volume Ft3 | : | 0.5667 |
| Standard Package Weight Pounds | : | 7.3000 |
| Std Package Height In | : | 3.9 |
| Std Package Height MM | : | 99.06 |
| Std Package Length In | : | 41 |
| Std Package Length MM | : | 1041.4 |
| Std Package Width In | : | 7 |
| Std Package Width MM | : | 177.8 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983542739 |
| Standard Carton Volume Ft3 | : | 2.8336 |
| Standard Carton Weight Pounds | : | 36.5000 |
| Std Carton Height In | : | 11.12 |
| Std Carton Height MM | : | 282.448 |
| Std Carton Length In | : | 44.21 |
| Std Carton Length MM | : | 1122.934 |
| Std Carton Width In | : | 9.96 |
| Std Carton Width MM | : | 252.984 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983542734 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 10,000 |
| Pallet Volume | : | 56.672308 |
| Pallet Weight | : | 730.0000 |
| RoHS Compliant | : | Compliant |
