PLT1M-L3-7 Premium Cable Tie
MFG #PLT1M-L3-7
$0.18 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

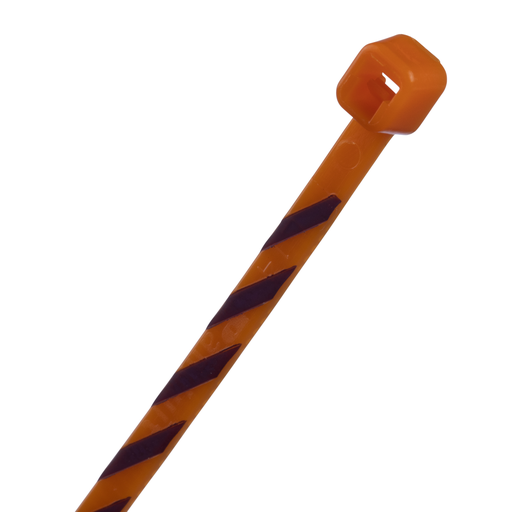

Pan-Ty® locking tie, miniature cross section, 4.0" (102mm) length, nylon 6.6, orange/violet stripe.
HESCO Part Number
PANPLT1ML37
UPC
074983539819
Manufacturer Part Number
PLT1M-L3-7
Manufacturer
Panduit
PLT1M-L3-7 Premium Cable Tie
MFG #PLT1M-L3-7
Product Description:
Pan-Ty® locking tie, miniature cross section, 4.0" (102mm) length, nylon 6.6, orange/violet stripe.
HESCO Part Number
PANPLT1ML37
UPC
074983539819
Manufacturer Part Number
PLT1M-L3-7
Manufacturer
Panduit
$0.18 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Application | : | General |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| For Use With | : | GTS-E, GS2B-E, PTS |
| Maximum Bundle Diameter (In.) | : | 0.87 |
| Body Width (mm) | : | 2.5 |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Loop Tensile Strength (N) | : | 80 |
| Minimum Installation Temperature (°C) | : | -20 |
| Minimum Operating Temperature (°F) | : | -76 |
| Overall Length (mm) | : | 102 |
| Maximum Operating Temperature (°C) | : | 85 |
| Overall Length (In.) | : | 4 |
| Material | : | Nylon 6.6 |
| Body Thickness (mm) | : | 0.9 |
| Minimum Installation Temperature (°F) | : | -4 |
| Product Type | : | Premium Cable Tie |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Body Thickness (In.) | : | 0.036 |
| Minimum Loop Tensile Strength (lb) | : | 18 |
| Environment | : | Indoor |
| Color | : | Orange/Violet |
| Body Width (In.) | : | 0.098 |
| Maximum Bundle Diameter (mm) | : | 22.1 |
| Maximum Operating Temperature (°F) | : | 185 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498353981 |
| GTIN Package | : | 00074983539819 |
| Standard Package Volume Ft3 | : | 0.0043 |
| Standard Package Weight Pounds | : | 0.0400 |
| Std Package Height In | : | .65 |
| Std Package Height MM | : | 16.51 |
| Std Package Length In | : | 5.35 |
| Std Package Length MM | : | 135.89 |
| Std Package Width In | : | 3.2 |
| Std Package Width MM | : | 81.28 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983539814 |
| Standard Carton Volume Ft3 | : | 0.0868 |
| Standard Carton Weight Pounds | : | 0.8000 |
| Std Carton Height In | : | 2.4 |
| Std Carton Height MM | : | 60.96 |
| Std Carton Length In | : | 10 |
| Std Carton Length MM | : | 254 |
| Std Carton Width In | : | 9.25 |
| Std Carton Width MM | : | 234.95 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983539819 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
