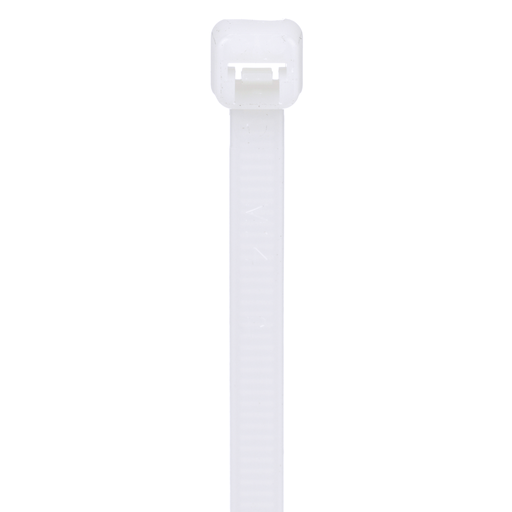

PLT1S-M Premium Cable Tie
MFG #PLT1S-M
$0.11 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Pan-Ty® locking tie, standard cross section, 4.8 (122mm) length, nylon 6.6, natural, bulk package.
HESCO Part Number
PANPLT1SM
UPC
074983540099
Manufacturer Part Number
PLT1S-M
Manufacturer
Panduit
PLT1S-M Premium Cable Tie
MFG #PLT1S-M
Product Description:
Pan-Ty® locking tie, standard cross section, 4.8 (122mm) length, nylon 6.6, natural, bulk package.
HESCO Part Number
PANPLT1SM
UPC
074983540099
Manufacturer Part Number
PLT1S-M
Manufacturer
Panduit
$0.11 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Installation Temperature (°C) | : | -20 |
| Color | : | Natural |
| Material | : | Nylon 6.6 |
| Minimum Installation Temperature (°F) | : | -4 |
| Maximum Bundle Diameter (In.) | : | 1 |
| Body Width (In.) | : | 0.19 |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| For Use With | : | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Product Type | : | Premium Cable Tie |
| Maximum Operating Temperature (°F) | : | 185 |
| Minimum Operating Temperature (°C) | : | -60 |
| Maximum Bundle Diameter (mm) | : | 25.4 |
| Overall Length (In.) | : | 4.8 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Environment | : | Plenum |
| Body Thickness (In.) | : | 0.052 |
| Maximum Operating Temperature (°C) | : | 85 |
| Application | : | General |
| Body Width (mm) | : | 4.8 |
| Overall Length (mm) | : | 122 |
| Minimum Operating Temperature (°F) | : | -76 |
| Body Thickness (mm) | : | 1.3 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498354009 |
| GTIN Package | : | 00074983540099 |
| Standard Package Volume Ft3 | : | 0.1803 |
| Standard Package Weight Pounds | : | 2.0000 |
| Std Package Height In | : | 4 |
| Std Package Height MM | : | 101.6 |
| Std Package Length In | : | 13.75 |
| Std Package Length MM | : | 349.25 |
| Std Package Width In | : | 8.85 |
| Std Package Width MM | : | 224.79 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983540094 |
| Standard Carton Volume Ft3 | : | 1.8029 |
| Standard Carton Weight Pounds | : | 20.0000 |
| Std Carton Height In | : | 12.7 |
| Std Carton Height MM | : | 322.58 |
| Std Carton Length In | : | 23.05 |
| Std Carton Length MM | : | 585.47 |
| Std Carton Width In | : | 10.95 |
| Std Carton Width MM | : | 278.13 |
| Std Ctn Qty | : | 10000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983540099 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5,000.0000 |
| Pallet Quantity | : | 240,000 |
| Pallet Volume | : | 43.268750 |
| Pallet Weight | : | 480.0000 |
| RoHS Compliant | : | Compliant |
