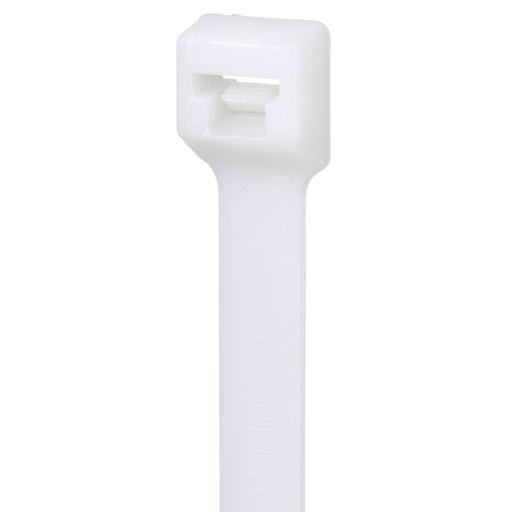

Pan-Ty® PLT2I-M Cable Tie, PA6.6, 8"L, 40lb, PK1000
MFG #PLT2I-M
$0.10 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
Product Description:
Panduit PLT2I-M Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 8.0” (203mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
HESCO Part Number
PANPLT2IM
UPC
074983540310
Manufacturer Part Number
PLT2I-M
Manufacturer
Panduit
Pan-Ty® PLT2I-M Cable Tie, PA6.6, 8"L, 40lb, PK1000
MFG #PLT2I-M
Product Description:
Panduit PLT2I-M Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 8.0” (203mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
HESCO Part Number
PANPLT2IM
UPC
074983540310
Manufacturer Part Number
PLT2I-M
Manufacturer
Panduit
$0.10 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
Packaging Details
| UPC | : | 07498354031 |
| GTIN Package | : | 00074983540310 |
| Standard Package Volume Ft3 | : | 0.1338 |
| Standard Package Weight Pounds | : | 2.2561 |
| Std Package Height In | : | 2.65 |
| Std Package Height MM | : | 67.31 |
| Std Package Length In | : | 14.2 |
| Std Package Length MM | : | 360.68 |
| Std Package Width In | : | 10.95 |
| Std Package Width MM | : | 278.13 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983540315 |
| Standard Carton Volume Ft3 | : | 3.3446 |
| Standard Carton Weight Pounds | : | 56.4025 |
| Std Carton Height In | : | 18.41 |
| Std Carton Height MM | : | 467.614 |
| Std Carton Length In | : | 21.96 |
| Std Carton Length MM | : | 557.784 |
| Std Carton Width In | : | 14.58 |
| Std Carton Width MM | : | 370.332 |
| Std Ctn Qty | : | 25000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983540310 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5,000.0000 |
| Pallet Quantity | : | 300,000 |
| Pallet Volume | : | 40.134792 |
| Pallet Weight | : | 676.8300 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States, Costa Rica, Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Bundle Diameter (mm) | : | 51 |
| For Use With | : | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Environment | : | Indoor |
| Product Type | : | Premium Cable Tie |
| Body Width (mm) | : | 3.6 |
| Overall Length (In.) | : | 8 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Material | : | Nylon 6.6 |
| Minimum Loop Tensile Strength (N) | : | 178 |
| Minimum Installation Temperature (°F) | : | -4 |
| Maximum Operating Temperature (°C) | : | 85 |
| Maximum Operating Temperature (°F) | : | 185 |
| Body Width (In.) | : | 0.142 |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Minimum Loop Tensile Strength (lb) | : | 40 |
| Overall Length (mm) | : | 203 |
| Body Thickness (In.) | : | 0.045 |
| Minimum Operating Temperature (°C) | : | -60 |
| Color | : | Natural |
| Maximum Bundle Diameter (In.) | : | 2 |
| Body Thickness (mm) | : | 1.1 |
| Minimum Installation Temperature (°C) | : | -20 |
| Material Description | : | Nylon 6.6 |
Videos 1
- No
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
Packaging Details
UPC : 07498354031 GTIN Package : 00074983540310 Standard Package Volume Ft3 : 0.1338 Standard Package Weight Pounds : 2.2561 Std Package Height In : 2.65 Std Package Height MM : 67.31 Std Package Length In : 14.2 Std Package Length MM : 360.68 Std Package Width In : 10.95 Std Package Width MM : 278.13 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983540315 Standard Carton Volume Ft3 : 3.3446 Standard Carton Weight Pounds : 56.4025 Std Carton Height In : 18.41 Std Carton Height MM : 467.614 Std Carton Length In : 21.96 Std Carton Length MM : 557.784 Std Carton Width In : 14.58 Std Carton Width MM : 370.332 Std Ctn Qty : 25000 Min. Order UOM : Piece EAN : 00074983540310 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 5,000.0000 Pallet Quantity : 300,000 Pallet Volume : 40.134792 Pallet Weight : 676.8300 RoHS Compliant : Compliant Specifications
Country of Origin : United States, Costa Rica, Malaysia Any Reason Not to Sell : N Product Segment : IEI Maximum Bundle Diameter (mm) : 51 For Use With : GTS-E, GS2B-E, PTS, PPTS, STS2 Environment : Indoor Product Type : Premium Cable Tie Body Width (mm) : 3.6 Overall Length (In.) : 8 Minimum Bundle Diameter (In.) : 0.06 Material : Nylon 6.6 Minimum Loop Tensile Strength (N) : 178 Minimum Installation Temperature (°F) : -4 Maximum Operating Temperature (°C) : 85 Maximum Operating Temperature (°F) : 185 Body Width (In.) : 0.142 Minimum Operating Temperature (°F) : -76 Minimum Bundle Diameter (mm) : 1.5 Minimum Loop Tensile Strength (lb) : 40 Overall Length (mm) : 203 Body Thickness (In.) : 0.045 Minimum Operating Temperature (°C) : -60 Color : Natural Maximum Bundle Diameter (In.) : 2 Body Thickness (mm) : 1.1 Minimum Installation Temperature (°C) : -20 Material Description : Nylon 6.6 - Brochures
