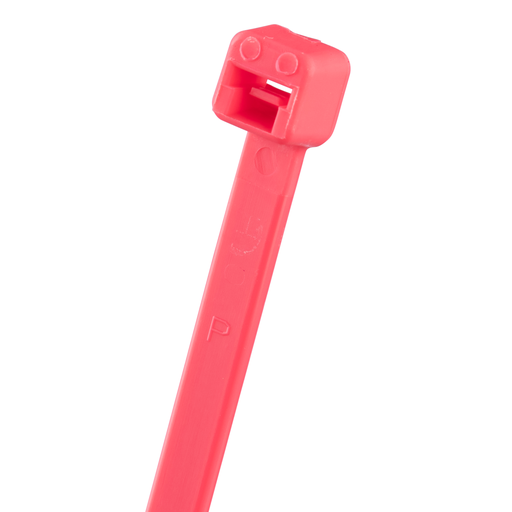

Pan-Ty® PLT2I-M59 Cable Tie, Fluor Pink, PA6.6, 8"L, 40lb, PK1000
MFG #PLT2I-M59
$0.14 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
Product Description:
Panduit PLT2I-M59 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 8.0" (203mm) length. Made of Nylon 6.6, are fluorescent pink in color and come in packages of 1000.
HESCO Part Number
PANPLT2IM59
UPC
074983280865
Manufacturer Part Number
PLT2I-M59
Manufacturer
Panduit
Pan-Ty® PLT2I-M59 Cable Tie, Fluor Pink, PA6.6, 8"L, 40lb, PK1000
MFG #PLT2I-M59
Product Description:
Panduit PLT2I-M59 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 8.0" (203mm) length. Made of Nylon 6.6, are fluorescent pink in color and come in packages of 1000.
HESCO Part Number
PANPLT2IM59
UPC
074983280865
Manufacturer Part Number
PLT2I-M59
Manufacturer
Panduit
$0.14 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Environment | : | Indoor |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Maximum Bundle Diameter (In.) | : | 2 |
| Minimum Operating Temperature (°F) | : | -76 |
| Maximum Operating Temperature (°F) | : | 185 |
| Material | : | Nylon 6.6 |
| Minimum Loop Tensile Strength (N) | : | 178 |
| For Use With | : | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Body Thickness (In.) | : | 0.045 |
| Product Type | : | Premium Cable Tie |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Color | : | Fluorescent Pink |
| Maximum Bundle Diameter (mm) | : | 51 |
| Body Width (In.) | : | 0.142 |
| Body Width (mm) | : | 3.6 |
| Minimum Loop Tensile Strength (lb) | : | 40 |
| Overall Length (In.) | : | 8 |
| Minimum Installation Temperature (°F) | : | -4 |
| Overall Length (mm) | : | 203 |
| Body Thickness (mm) | : | 1.1 |
| Minimum Installation Temperature (°C) | : | -20 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498328086 |
| GTIN Package | : | 00074983280865 |
| Standard Package Volume Ft3 | : | 0.1362 |
| Standard Package Weight Pounds | : | 2.0000 |
| Std Package Height In | : | 2.95 |
| Std Package Height MM | : | 74.93 |
| Std Package Length In | : | 15.25 |
| Std Package Length MM | : | 387.35 |
| Std Package Width In | : | 10.7 |
| Std Package Width MM | : | 271.78 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983280860 |
| Standard Carton Volume Ft3 | : | 3.4046 |
| Standard Carton Weight Pounds | : | 50.0000 |
| Std Carton Height In | : | 18.41 |
| Std Carton Height MM | : | 467.614 |
| Std Carton Length In | : | 21.96 |
| Std Carton Length MM | : | 557.784 |
| Std Carton Width In | : | 14.58 |
| Std Carton Width MM | : | 370.332 |
| Std Ctn Qty | : | 25000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983280865 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5,000.0000 |
| Pallet Quantity | : | 300,000 |
| Pallet Volume | : | 40.855667 |
| Pallet Weight | : | 600.0000 |
| RoHS Compliant | : | Compliant |
Videos 1
- No
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
Specifications
Country of Origin : Malaysia Any Reason Not to Sell : N Product Segment : IEI Environment : Indoor Maximum Operating Temperature (°C) : 85 Minimum Bundle Diameter (mm) : 1.5 Maximum Bundle Diameter (In.) : 2 Minimum Operating Temperature (°F) : -76 Maximum Operating Temperature (°F) : 185 Material : Nylon 6.6 Minimum Loop Tensile Strength (N) : 178 For Use With : GTS-E, GS2B-E, PTS, PPTS, STS2 Body Thickness (In.) : 0.045 Product Type : Premium Cable Tie Minimum Operating Temperature (°C) : -60 Minimum Bundle Diameter (In.) : 0.06 Color : Fluorescent Pink Maximum Bundle Diameter (mm) : 51 Body Width (In.) : 0.142 Body Width (mm) : 3.6 Minimum Loop Tensile Strength (lb) : 40 Overall Length (In.) : 8 Minimum Installation Temperature (°F) : -4 Overall Length (mm) : 203 Body Thickness (mm) : 1.1 Minimum Installation Temperature (°C) : -20 Material Description : Nylon 6.6 Packaging Details
UPC : 07498328086 GTIN Package : 00074983280865 Standard Package Volume Ft3 : 0.1362 Standard Package Weight Pounds : 2.0000 Std Package Height In : 2.95 Std Package Height MM : 74.93 Std Package Length In : 15.25 Std Package Length MM : 387.35 Std Package Width In : 10.7 Std Package Width MM : 271.78 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983280860 Standard Carton Volume Ft3 : 3.4046 Standard Carton Weight Pounds : 50.0000 Std Carton Height In : 18.41 Std Carton Height MM : 467.614 Std Carton Length In : 21.96 Std Carton Length MM : 557.784 Std Carton Width In : 14.58 Std Carton Width MM : 370.332 Std Ctn Qty : 25000 Min. Order UOM : Piece EAN : 00074983280865 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 5,000.0000 Pallet Quantity : 300,000 Pallet Volume : 40.855667 Pallet Weight : 600.0000 RoHS Compliant : Compliant - Part Drawings
