PLT2S-C10 Premium Cable Tie
MFG #PLT2S-C10
$0.32 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

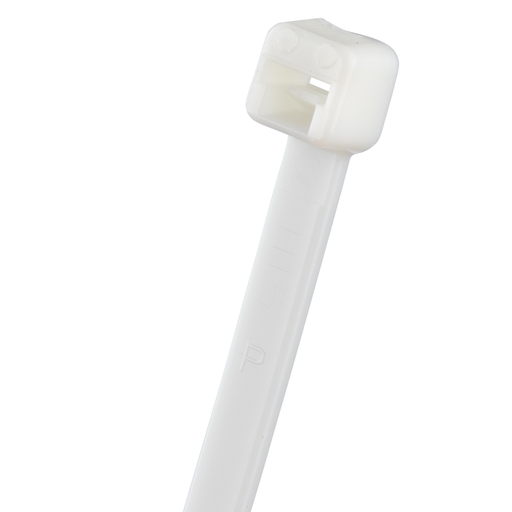

Pan-Ty® locking tie, standard cross section, 7.4 (188mm) length, nylon 6.6, white, standard package.
HESCO Part Number
PANPLT2SC10
UPC
074983547661
Manufacturer Part Number
PLT2S-C10
Manufacturer
Panduit
PLT2S-C10 Premium Cable Tie
MFG #PLT2S-C10
Product Description:
Pan-Ty® locking tie, standard cross section, 7.4 (188mm) length, nylon 6.6, white, standard package.
HESCO Part Number
PANPLT2SC10
UPC
074983547661
Manufacturer Part Number
PLT2S-C10
Manufacturer
Panduit
$0.32 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
- No
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Installation Temperature (°C) | : | -20 |
| Body Width (In.) | : | 0.19 |
| Maximum Bundle Diameter (In.) | : | 1.88 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Maximum Operating Temperature (°F) | : | 185 |
| For Use With | : | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH |
| Minimum Operating Temperature (°C) | : | -60 |
| Material | : | Nylon 6.6 |
| Overall Length (In.) | : | 7.4 |
| Body Thickness (mm) | : | 1.3 |
| Environment | : | Plenum |
| Product Type | : | Premium Cable Tie |
| Minimum Installation Temperature (°F) | : | -4 |
| Maximum Bundle Diameter (mm) | : | 47.8 |
| Minimum Operating Temperature (°F) | : | -76 |
| Color | : | White |
| Body Width (mm) | : | 4.8 |
| Body Thickness (In.) | : | 0.052 |
| Application | : | General |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Overall Length (mm) | : | 188 |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Maximum Operating Temperature (°C) | : | 85 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498354766 |
| GTIN Package | : | 00074983547661 |
| Standard Package Volume Ft3 | : | 0.0321 |
| Standard Package Weight Pounds | : | 0.3400 |
| Std Package Height In | : | 1.4 |
| Std Package Height MM | : | 35.56 |
| Std Package Length In | : | 8.8 |
| Std Package Length MM | : | 223.52 |
| Std Package Width In | : | 5.65 |
| Std Package Width MM | : | 143.51 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983547666 |
| Standard Carton Volume Ft3 | : | 0.3207 |
| Standard Carton Weight Pounds | : | 3.4000 |
| Std Carton Height In | : | 5.9 |
| Std Carton Height MM | : | 149.86 |
| Std Carton Length In | : | 10.4 |
| Std Carton Length MM | : | 264.16 |
| Std Carton Width In | : | 8.15 |
| Std Carton Width MM | : | 207.01 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983547661 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 168,000 |
| Pallet Volume | : | 53.880653 |
| Pallet Weight | : | 571.2000 |
| RoHS Compliant | : | Compliant |
